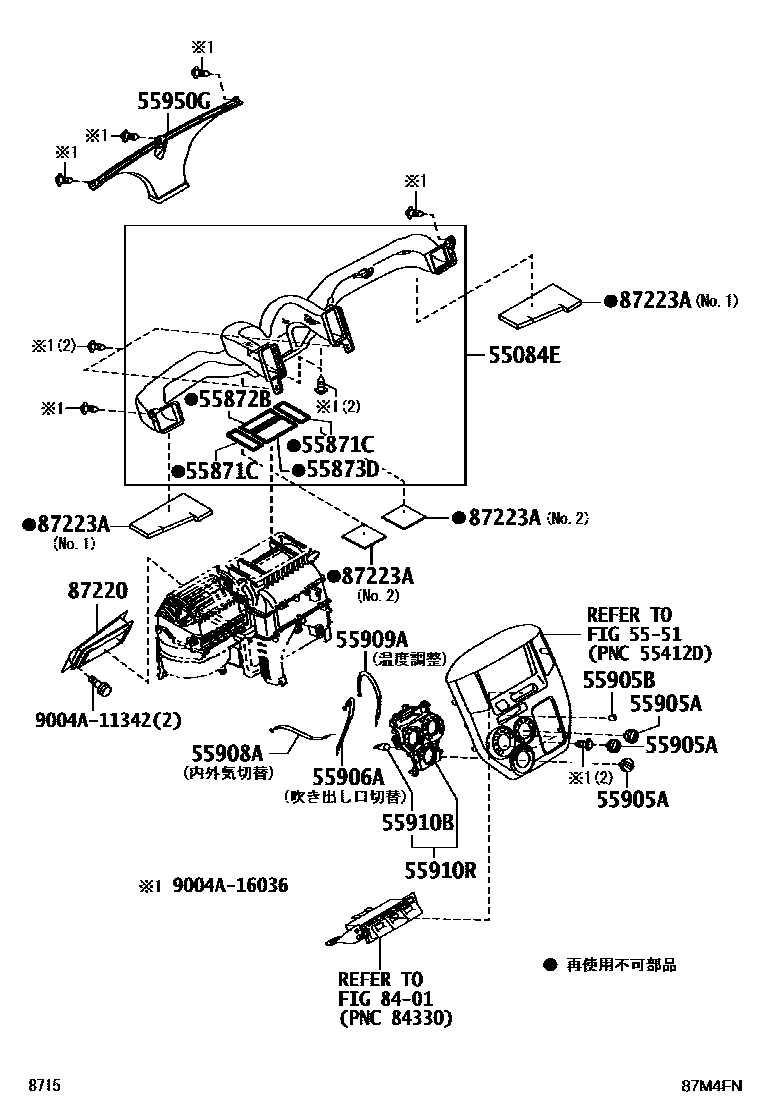

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55084EDUCT SUB-ASSY, HEATER TO REGISTER, NO.1

main55084-BZ010iS402,412200801-201008

main55084-BZ040iS403,413..PIC;S403,413..VAN..4FC202007

5551

55871CSEAL, AIR DUCT

main55871-BZ030×2iS403,413..VAN..5F202007-202503

55872BSEAL, AIR DUCT,NO.2

main55872-BZ020iS403,413..VAN..5F202007-202503

55873DSEAL, AIR DUCT, CENTER

main55873-BZ060iS403,413..PIC;S403,413..VAN..4FC202007

55905AKNOB, HEATER CONTROL

main55905-BZ140×3iS403,413..VAN..5F202007-202503

55905BKNOB, HEATER CONTROL, NO.2

main55905-BZ150iS403,413..VAN..5F202007-202503

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-BZ080iS403,413..VAN..5F202007-202503

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-BZ080iS402,412200801-202007

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-BZ030iS403,413..VAN..5F202007-202503

55910BBULB, HEATER CONTROL

main81936-BZ020iS403,413..VAN..5F202007-202503

55910RCONTROL ASSY, HEATER

main55910-BZ171iS403,413..VAN..5F202007-202503

55950GNOZZLE ASSY, DEFROSTER

main55950-BZ080iS403,413..VAN..5F202007-202503

8401

87220DUCT ASSY, AIR

main87220-BZ240iS403,413..VAN..5F202007-202503

87223APAD, AIR DUCT

main87223-BZ040×2iS402,412200801-201009

main87223-BZ090×2iS403,413..PIC;S403,413..VAN..4FC202007

main87223-BZ160×2iS403,413..VAN..5F202007-202503

9004A11342

main9004A-11342

9004A16036

main9004A-16036

18 parts on this diagram · 2 diagrams in section
