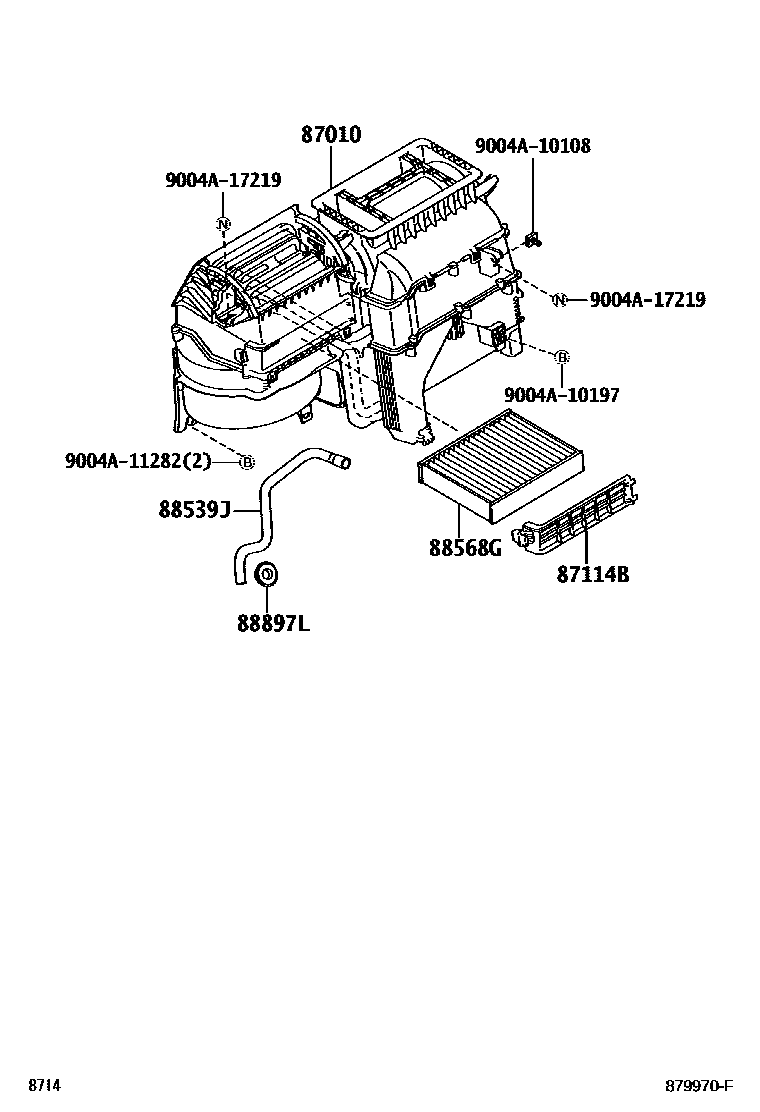

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1

87010UNIT ASSY, AIR CONDITIONER

main87010-BZ122iS403..PIC202007

main87010-BZ140iS402,412..VAN200801-201512

main87010-BZ141iS402,412..VAN201601-201704

main87010-BZ142iS402,412..VAN201705-202007

main87010-BZ180iS412..PIC201006-201512

main87010-BZ181iS412..PIC201601-201704

main87010-BZ182supersedes 87010-BZ122iS403..PIC..CBU202007

main87010-BZ660iS403,413..VAN..4FC202007

87114BCOVER, HEATER

main87114-BZ020iS403,413..PIC;S403,413..VAN..4FC202007

88539JHOSE, DRAIN COOLER

main88539-BZ130iS402,412200801-202007

main88539-BZ440iS403,413..VAN..5F202007-202503

88568GFILTER, AIR

main88568-BZ010iS402,412200801-201311

main88568-BZ011iS402,412201312-202007

sub88568-B2021

88897LGROMMET (FOR DRAIN HOSE)

main88897-87Z13iS403,413..PIC;S403,413..VAN..4FC202007

9004A10108

main9004A-10108

9004A10197

main9004A-10197

9004A11282

main9004A-11282

9004A17219

main9004A-17219

9 parts on this diagram · 4 diagrams in section
