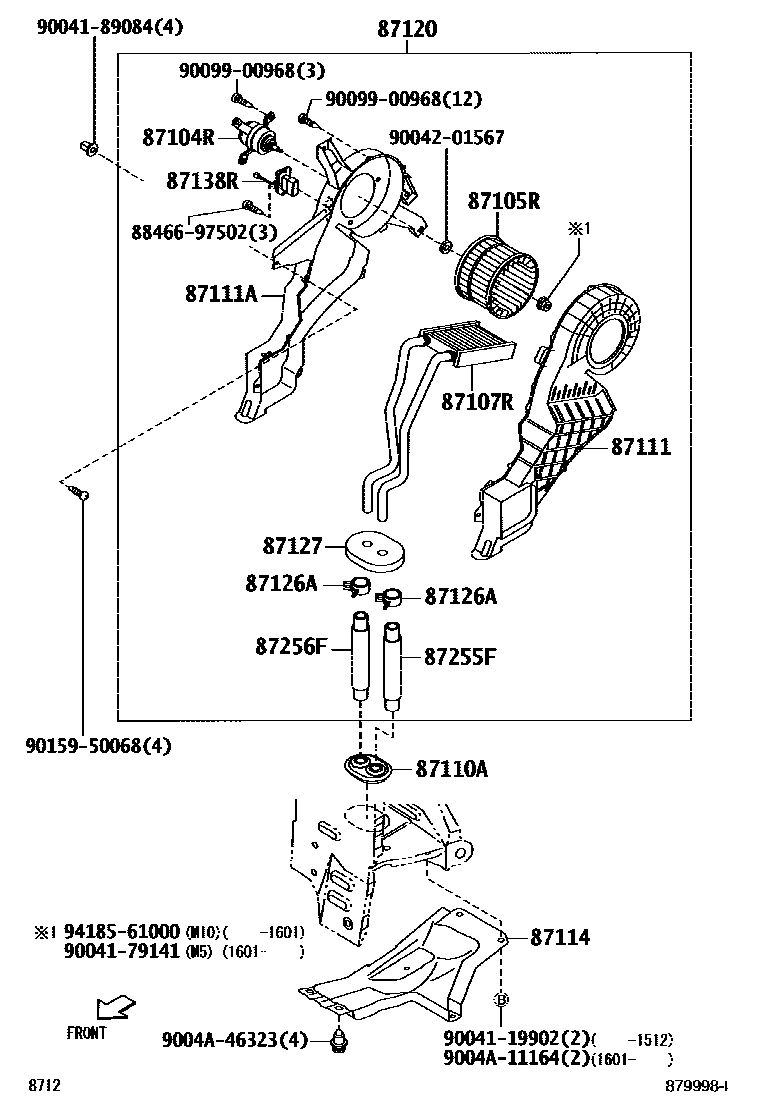

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER
87104RMOTOR SUB-ASSY, REAR HEATER BLOWER
87105RFAN SUB-ASSY, REAR HEATER BLOWER
87107RUNIT SUB-ASSY, REAR HEATER
87110AGROMMET (FOR HEATER PIPE)
87111ACASE, HEATER
87114COVER, HEATER
87120HEATER ASSY, REAR
87126ACLAMP, HEATER CONTROL
87127PACKING, HEATER AIR DAMPER
main87127-BZ010
87138RRESISTOR, REAR HEATER BLOWER
87255FHOSE, REAR HEATER WATER INLET, F(FOR HEATER UNIT)
87256FHOSE, REAR HEATER WATER OUTLET, F (FOR HEATER UNIT)
8846697502
main88466-97502
9004119902
main90041-19902
9004179141
main90041-79141
9004189084
main90041-89084
9004201567
main90042-01567
9004A11164
main9004A-11164
9004A46323
main9004A-46323
9009900968
main90099-00968
9015950068
main90159-50068
9418561000
main94185-61000
23 parts on this diagram · 2 diagrams in section
