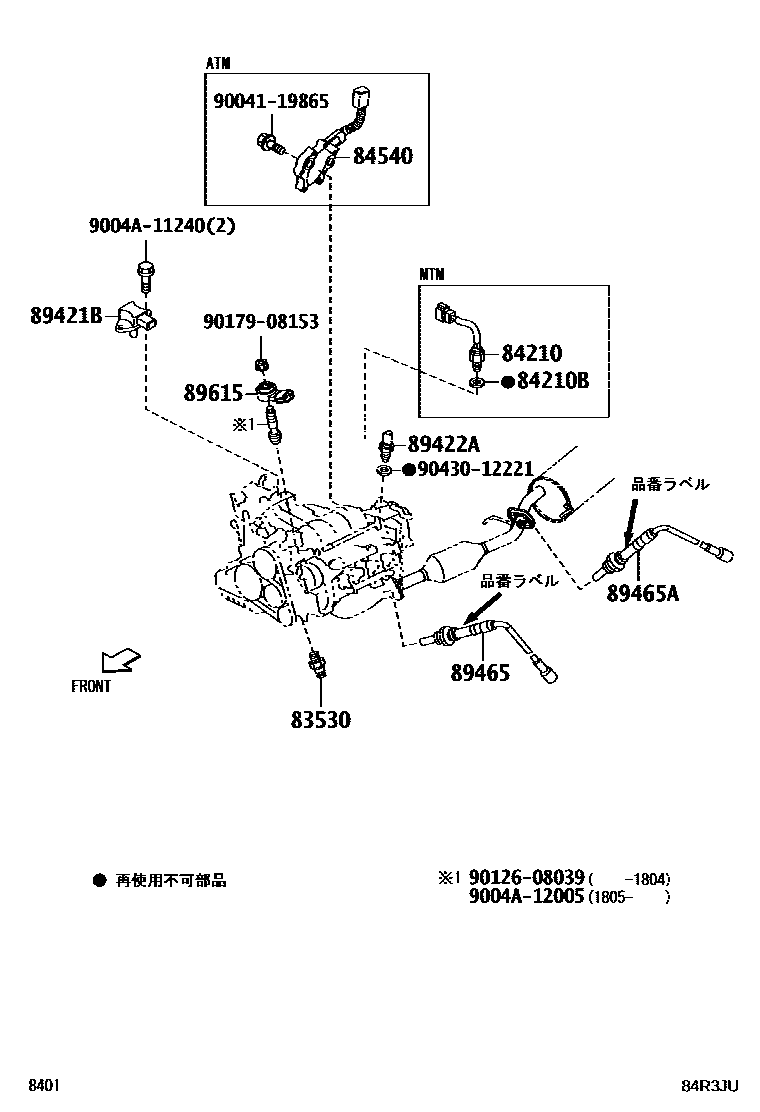

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1�����&��������� 0008 1�������� 0009 1������������ NO.1 0010 1������������ NO.2 0011 1���&��� 0012 1�������

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-52050iS403,413..VAN..5F202007-202503

main83530-97401iS402,412200801-202007

84210SWITCH ASSY, BACK-UP LAMP

main84210-B4010iS413..VAN..5F201006-202503

main84210-BZ120iS403..VAN..5F200801-202503

84210BGASKET, BACK-UP LAMP SWITCH

main90044-30186iS413..VAN..5F201006-202503

main9004A-43007iS403..VAN..5F200801-202503

84540SWITCH ASSY, NEUTRAL START

main84540-97502iS402,412..4FC200801-201105

sub84540-B0010

main84540-B0010iS402,412..4FC201105-202007

main84540-B5020iS403,413..4FC202007

89421BSENSOR, VACUUM

main89421-B2030iS403,413..VAN..5F202007-202503

main89421-BZ020iS402,412200801-202007

sub89421-B2010

89422ASENSOR, WATER TEMPERATURE

main89422-BZ010iS402,412200801-202007

main89422-BZ030iS403,413..VAN..5F202007-202503

89465SENSOR, OXYGEN

main89465-BZ200iS402200801-201007

main89465-BZ320iS402201006-201401

main89465-BZ321iS402,412201401-202007

main89465-BZ520iS403,413..PIC;S403,413..VAN..4FC202007-202503

89465ASENSOR, OXYGEN NO.2

main89465-BZ180iS402200801-201006

main89465-BZ310iS402,412201006-202007

89615SENSOR, KNOCK CONTROL

main89615-BZ030iS402,412200801-201212

sub89615-20090

main89615-BZ040iS402,412201212-202007

main89615-BZ070iS403,413..VAN..5F202007-202503

9004119865

main90041-19865

9004A11240

main9004A-11240

9004A12005

main9004A-12005

9012608039

main90126-08039

9017908153

main90179-08153

9043012221

main90430-12221

15 parts on this diagram · 12 diagrams in section
