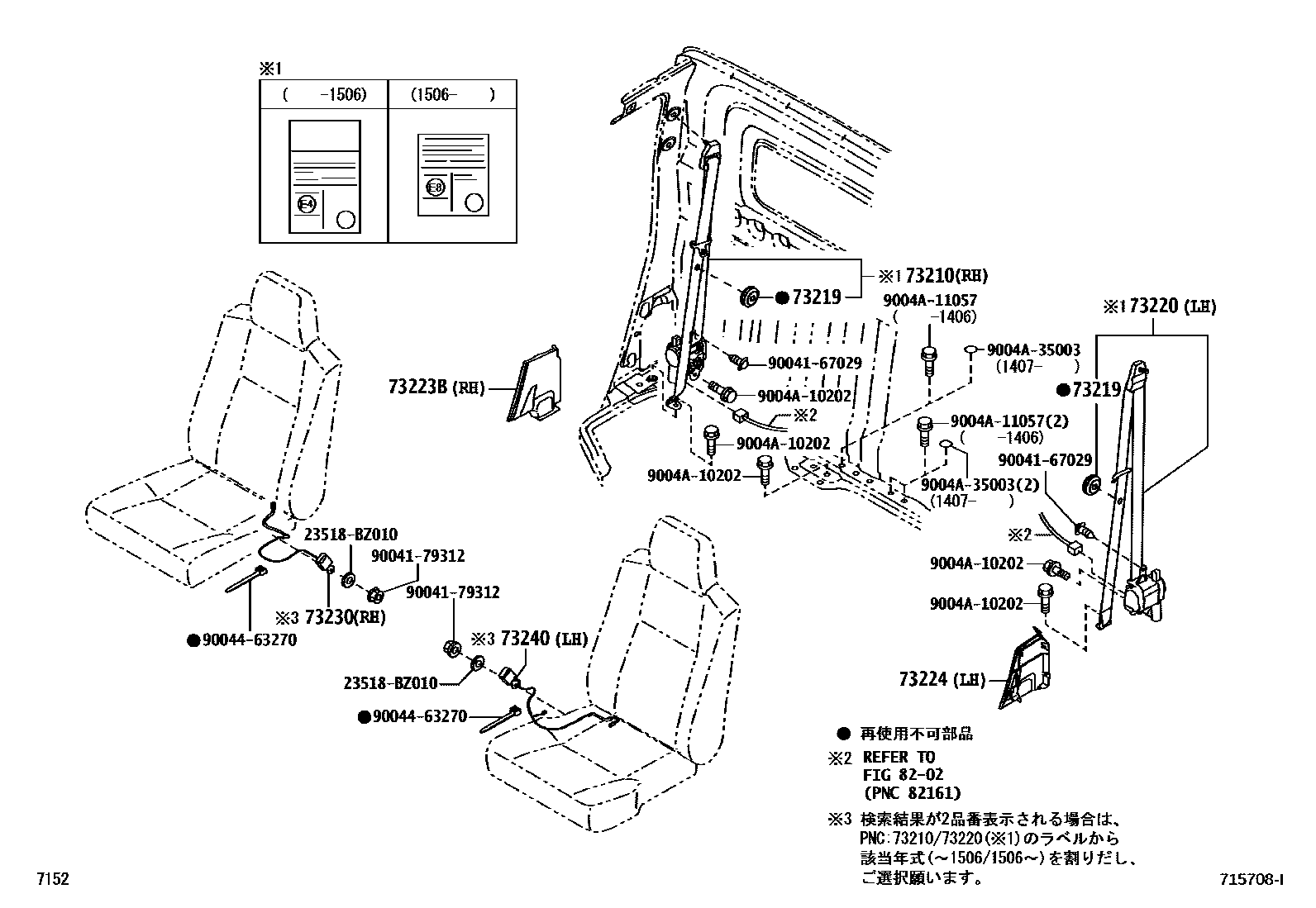

SEAT BELT

0001 1 0002 1 0003 1 0004 1������� 0005 1�����

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-B5080-B0iS402..PIC200801-200903

DK.GRAY,TRIM1#

sub73210-B5081

main73210-B5081-B0iS402,412..PIC200904-201204

SHADOW GRAY,TRIM1#

sub73210-B5082

main73210-B5082-B0iS402,412..PIC201204-201506

SHADOW GRAY,TRIM1#

main73210-B5090-B0iS402..VAN200801-200903

SHADOW GRAY,TRIM1#

sub73210-B5091

main73210-B5091-B0iS402,412..VAN200904-201204

SHADOW GRAY,TRIM1#

sub73210-B5092

main73210-B5092-B0iS402,412..VAN201204-201506

SHADOW GRAY,TRIM1#

main73210-BZ550-B0iS403,413..PIC201506-202007

SHADOW GRAY,TRIM1#

main73210-BZ560-B0iS402,412..VAN201506-202007

SHADOW GRAY,TRIM1#

main73210-BZ700-B0iS403,413..VAN..5F202007-202503

SHADOW GRAY,TRIM1#

73219STOPPER, TONGUE PLATE

main73219-33010iS403,413..PIC;S403,413..VAN..4FC200911-202503

main73219-33020iS403,413..PIC;S403,413..VAN..4FC200911-202503

main73219-33030iS403,413..VAN..5F200911-202503

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-B5070-B0iS402..PIC200801-200903

DK.GRAY,TRIM1#

sub73220-B5071

main73220-B5071-B0iS402,412..PIC200904-201204

SHADOW GRAY,TRIM1#

sub73220-B5072

main73220-B5072-B0iS402,412..PIC201204-201506

SHADOW GRAY,TRIM1#

main73220-B5080-B0iS402..VAN200801-200903

SHADOW GRAY,TRIM1#

sub73220-B5081

main73220-B5081-B0iS402,412..VAN200904-201204

SHADOW GRAY,TRIM1#

sub73220-B5082

main73220-B5082-B0iS402,412..VAN201204-201506

SHADOW GRAY,TRIM1#

main73220-BZ540-B0iS403,413..PIC201506-202007

SHADOW GRAY,TRIM1#

main73220-BZ550-B0iS403,413..VAN..5F201506-202503

SHADOW GRAY,TRIM1#

73223COVER, SEAT BELT RETRACTOR

main73223-BZ030-B0iS402..VAN200801-202007

main73223-BZ030-B0iS402..VAN200801-202007

DK.GRAY,TRIM1#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-BZ010-B0iS403,413..VAN..5F200801-202503

DK.GRAY,TRIM1#

main73223-BZ020-B0iS402..PIC200801-200911

DK.GRAY,TRIM1#

main73223-BZ070-B0iS403,413..PIC200911-202007

DK.GRAY,TRIM1#

73224COVER, FRONT SEAT BELT RETRACTOR, LH

main73224-BZ020-B0iS402,412..PIC200801-202007

DK.GRAY,TRIM1#

main73224-BZ040-B0iS403,413..VAN..4FC200801-202503

DK.GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-B5100-B0iS402,412..PIC200801-201506

DK.GRAY,TRIM1#

main73230-B5120-B0iS402,412..VAN200801-201506

DK.GRAY,TRIM1#

main73230-BZ800-B0iS402,412..PIC201506-202007

DK.GRAY,TRIM1#

main73230-BZ820-B0iS403,413..VAN..5F201506-202503

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-B5110-B0iS402,412..PIC200801-201506

DK.GRAY,TRIM1#

main73230-B5130-B0iS402,412..VAN200801-201506

DK.GRAY,TRIM1#

main73230-BZ810-B0iS403,413..PIC201506-202007

DK.GRAY,TRIM1#

main73230-BZ830-B0iS403,413..VAN..5F201506-202503

DK.GRAY,TRIM1#

8202

23518BZ010WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-BZ010

9004167029

main90041-67029

9004179312

main90041-79312

9004463270

main90044-63270

9004A10202

main9004A-10202

9004A11057

main9004A-11057

9004A35003

main9004A-35003

16 parts on this diagram · 5 diagrams in section
