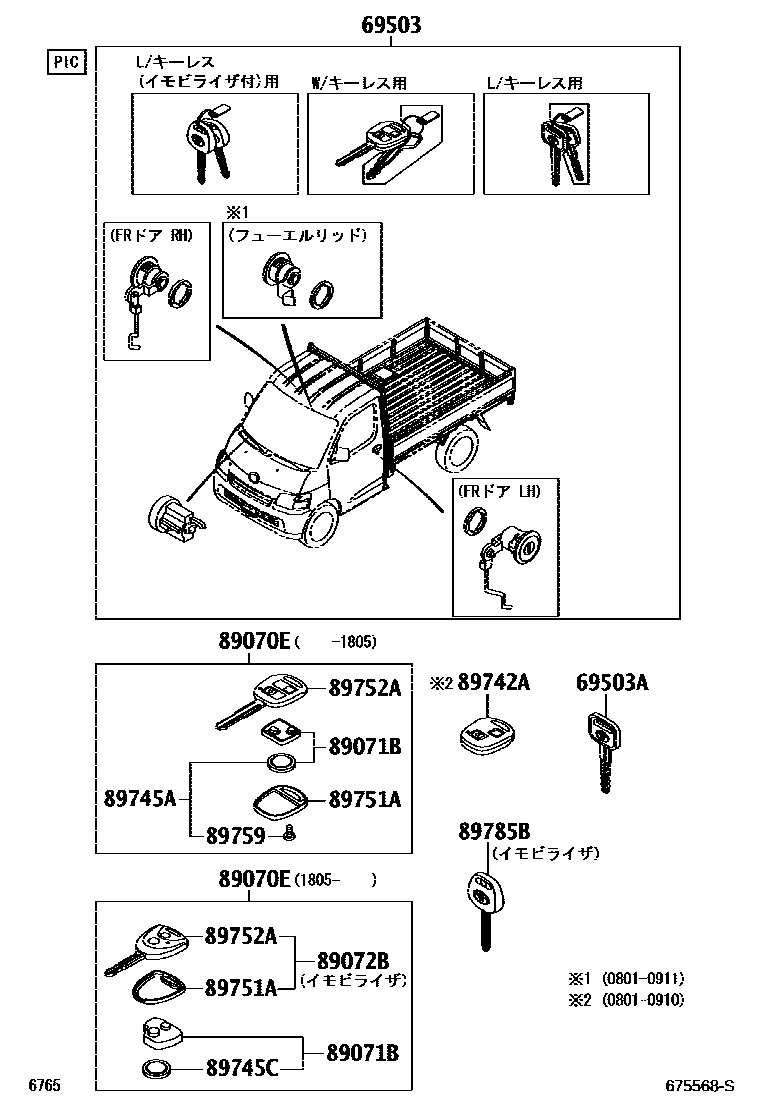

LOCK CYLINDER SET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

69503CYLINDER SET, LOCK

main69005-BZ150iS402..PIC200801-200911

main69005-BZ151iS402,412..PIC..DX200911-201805

main69005-BZ160iS402,412..VAN..DX200801-201805

main69005-BZ170iS402,412..GL200801-201805

main69005-BZ210iS402,412..DXED200911-201805

main69005-BZB30iS402,412..PIC..DX201805-202007

main69005-BZB40iS402,412..VAN..DX201805-202007

main69005-BZB50iS402,412..DXED201805-202007

main69005-BZB60iS402,412..GL201805-202007

main69005-BZC00iS403,413..PIC..DX202007-202207

main69005-BZC01iS403,413..PIC..DX202208

main69005-BZC10iS403,413..VAN..DX202007-202207

sub69005-BZC11

main69005-BZC11iS403,413..VAN..5F..DX202208-202503

main69005-BZC20iS403,413..DXED202007-202207

sub69005-BZC21

main69005-BZC21iS403,413..DXED202208

main69005-BZC30iS403,413..GL202007-202207

sub69005-BZC31

main69005-BZC31iS403,413..5F..GL202208-202503

69503AKEY, BLANK

main69515-BZ040iS402,412200801-201805

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-BZ020iS402..GL;S412..DXED,GL200801-201109

sub89070-BZ021

main89070-BZ021iS402,412..DXED,GL201110-201805

main89070-BZ360iS402,412..DXED,GL201805-202007

main89070-BZ370iS403,413..DXED;S403,413..4FC..GL202007-202503

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-BZ010iS402..DXED200801-201109

sub89071-BZ011

main89071-BZ011iS402,412..DXED,GL201110-201805

sub89071-B1020

main89071-BZ100iS402,412..DXED,GL201805-202007

main89071-BZ120iS403,413..5F..GL202007-202503

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-BZ240iS402,412..DXED,GL201805-202007

main89072-BZ260iS403,413..5F..GL202007-202503

89742ATRANSMITTER, DOOR CONTROL

main89742-BZ110iS402..DXED200801-200910

sub89742-BZ111

89745ABATTERY, TRANSMITTER

main89745-B2010iS402,412..DXED,GL200801-201805

89745CBATTERY, TRANSMITTER

main89745-B1020iS402,412..DXED,GL201805-202007

89751ACOVER, TRANSMITTER HOUSING

main89751-BZ010iS402..GL;S412..DXED,GL200801-201805

main89751-BZ160iS402,412..DXED,GL201805-202503

89752ACASE, TRANSMITTER HOUSING

main89752-BZ010iS402..GL;S412..DXED,GL200801-201805

main89752-BZ120iS402,412..DXED,GL201805-202007

89759SCREW, DOOR CONTROL TRANSMITTER

main89759-B2010iS402,412..DXED,GL200801-201805

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-BZ080iS402,412201805-202007

main89785-BZ260iS403,413..PIC;S403,413..VAN..4FC202007-202503

12 parts on this diagram · 6 diagrams in section
