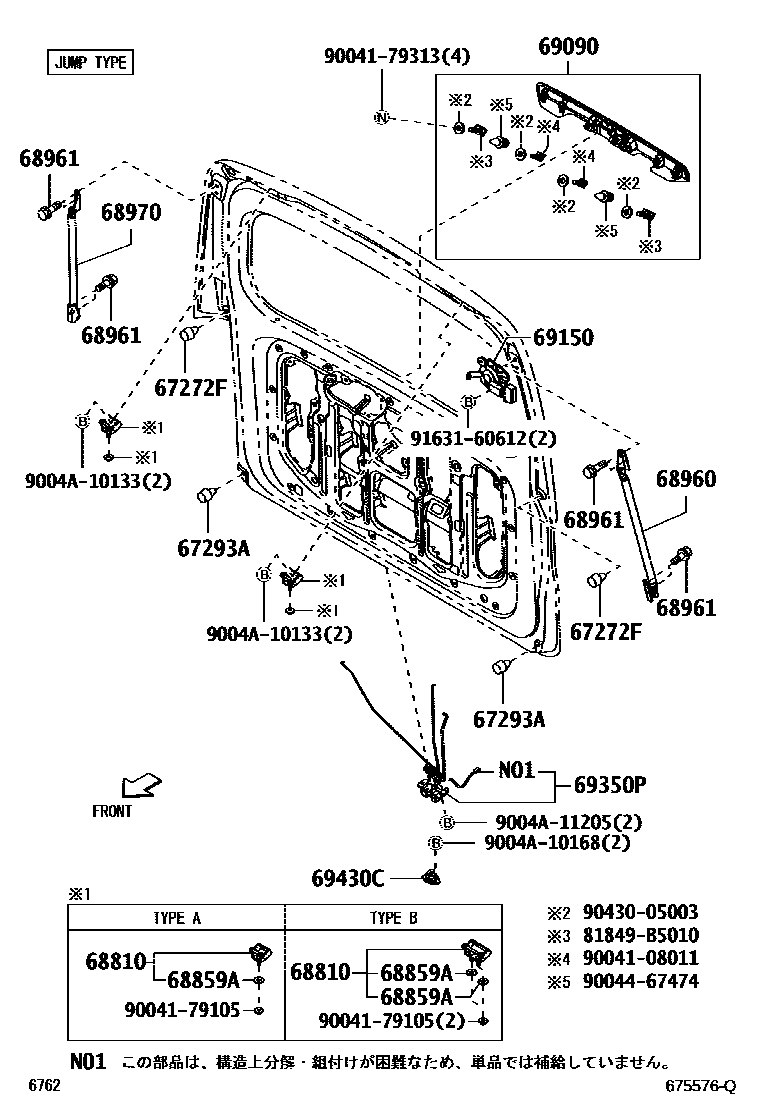

BACK DOOR LOCK & HINGE

0001 1 0002 1

67272FCUSHION, BACK DOOR STOPPER, NO.2

main90045-41220×2iS402,412..VAN200801-201008

main9004A-54016×2iS402,412..VAN201510-202007

main9004A-54030×2iS402,412..VAN201009-201509

67293ACUSHION, BACK DOOR STOPPER

main9004A-54015×2iS403,413..VAN..5F202007-202503

68810HINGE ASSY, BACK DOOR, UPPER

main68801-BZ090×2iS402..VAN200801-201006

sub68801-B5020

main68801-BZ091×2iS403,413..VAN..4FC202007

68859ASPACER, BACK DOOR HINGE COVER

main68859-BZ040×4iS403,413..VAN..5F202007-202503

sub68859-87201

68960STAY ASSY, BACK DOOR, LH

main68960-BZ070supersedes 68960-BZ080iS402..GL200801-200903

sub68960-BZ071

main68960-BZ072supersedes 68960-BZ260iS403..VAN..5F202007-202503

68961BOLT, BACK DOOR STAY

main90041-19710×8iS403,413..VAN..4FC202007

68970STAY ASSY, BACK DOOR, RH

main68950-BZ040supersedes 68950-BZ080iS402..GL200801-200903

sub68950-BZ041

main68950-BZ042supersedes 68950-BZ260iS413..VAN..4FC202007

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-BZ050iS403,413..VAN..4FC202007

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-BZ030iS403,413..VAN..5F202007-202503

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-B5050iS402..VAN..DX200911-202007

main69350-B5070iS402..VAN..DX200801-200911

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-B5010iS402,412..VAN200801-202007

81849B5010

main81849-B5010

9004108011

main90041-08011

9004179105

main90041-79105

9004179313

main90041-79313

9004467474

main90044-67474

9004A10133

main9004A-10133

9004A10168

main9004A-10168

9004A11205

main9004A-11205

9043005003

main90430-05003

9163160612

main91631-60612

21 parts on this diagram · 2 diagrams in section
