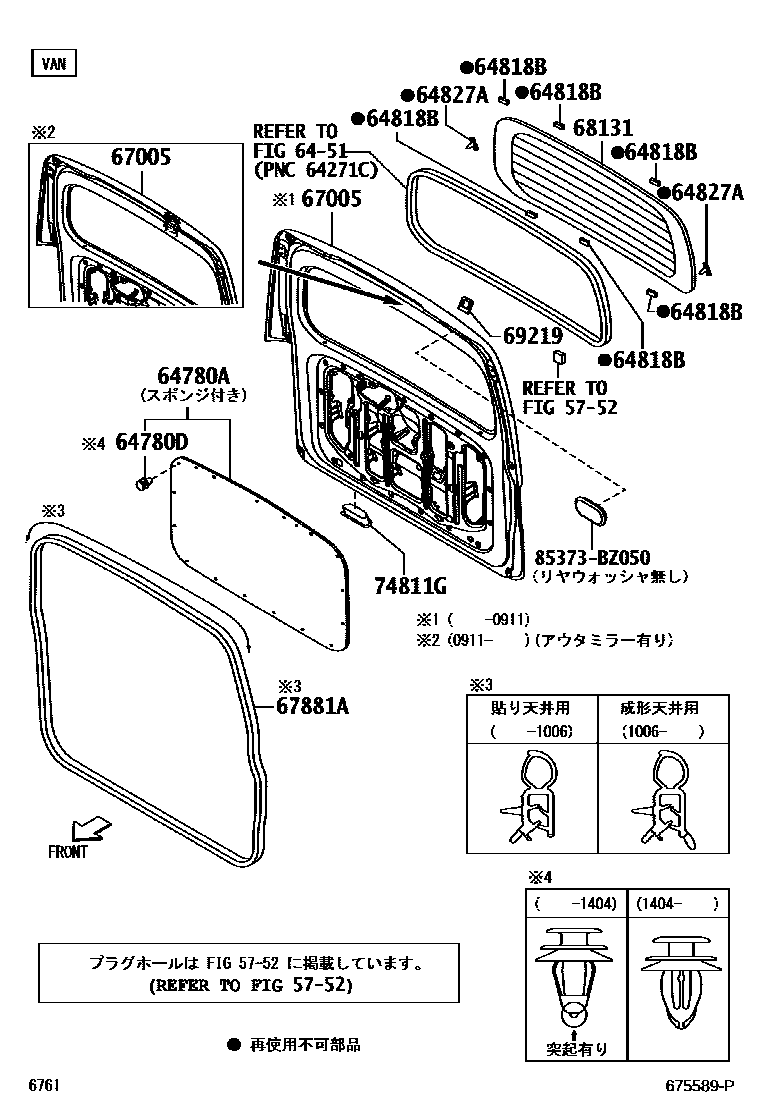

BACK DOOR PANEL & GLASS

0001 1 0002 1

5752

6451

64780APANEL ASSY, BACK DOOR TRIM

main64780-BZ070-B0iS402,412..VAN200801-201511

main64780-BZ071-B0iS402,412..VAN201512-202007

main64780-BZ072-B0iS403,413..VAN..4FC202007

64780DRETAINER(FOR BACK DOOR TRIM BOARD)

main67771-87705×17iS402,412..VAN200812-201404

main67771-B2040×17iS402,412..VAN201404-201511

main67771-BZ070×17iS403,413..VAN..5F202007-202503

main90467-10161×17iS402..VAN200801-200812

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-BZ010×6iS402,412..VAN200801-201203

sub64818-87704

main64818-BZ060×6iS403,413..VAN..4FC202007

64827ACLIP, BACK WINDOW GLASS, RH

main64827-BZ030×2iS403,413..VAN..5F202007-202503

67005PANEL SUB-ASSY, BACK DOOR

main67005-BZ322iS402..VAN..DX201011-202007

main67005-BZ330supersedes 67005-BZ320iS402..GL200801-200911

sub67005-BZ630

sub85374-BZ030

sub85374-BZ040

sub85391-BZ010

main67005-BZ331supersedes 67005-BZ321iS402..GL;S412..VAN200911-202007

main67005-BZE70supersedes 67005-BZE60iS403..5F..GL;S413..VAN..5F202007-202503

67881AWEATHERSTRIP, BACK DOOR

main67881-BZ080iS402..VAN200801-200908

main67881-BZ081iS402..VAN200909-201006

main67881-BZ082iS403,413..VAN..5F202007-202503

68131GLASS, BACK DOOR

main68105-BZ130iS402..VAN200801-201005

main68105-BZ131iS403,413..VAN..5F..DX202007-202503

main68105-BZ270iS403,413..4FC..GL202007

69219SEAL, BACK DOOR OUTSIDE HANDLE

main69219-BZ010iS403,413..VAN..5F202007-202503

sub69219-B2010

74811GHANDLE, DOOR PULL

main74811-BZ030iS403,413..VAN..4FC202007

85373BZ050HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-BZ050

12 parts on this diagram · 2 diagrams in section
