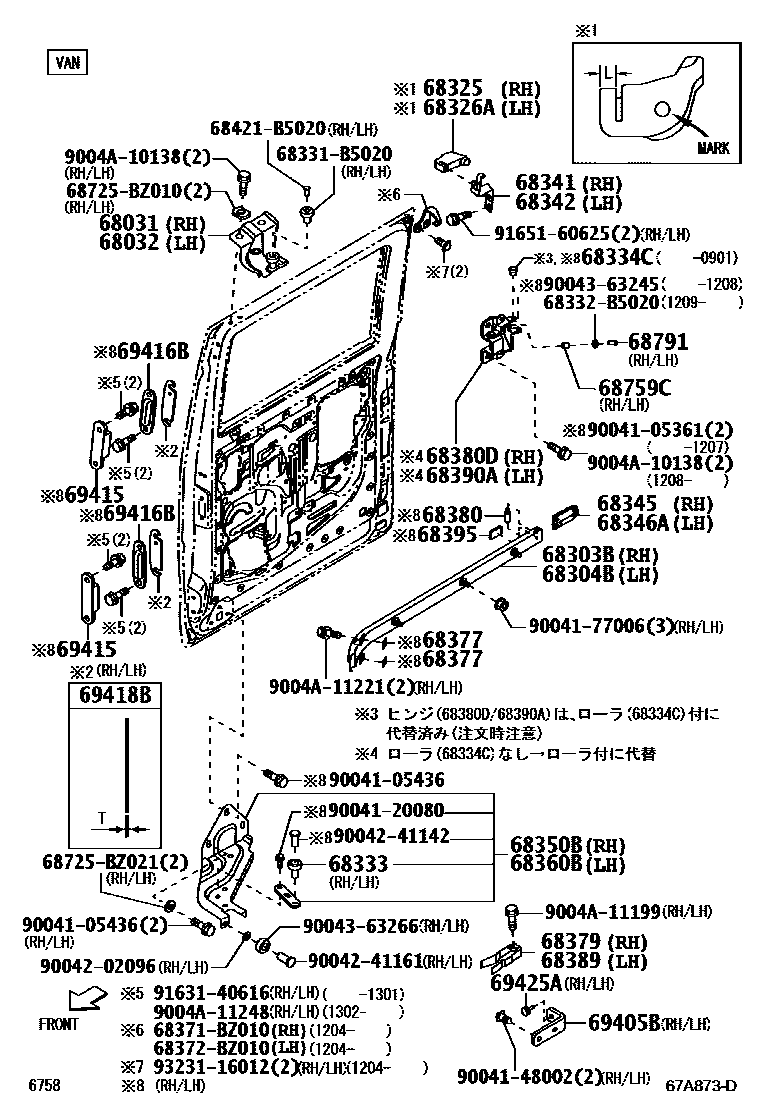

SLIDE ROLLER & RAIL

0001 1 0002 1 0003 1 0004 1 0005 1

68031ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH

main68031-BZ011iS402..VAN200801-200811

sub68331-B5020

sub68421-B5020

main68031-BZ020iS402,412..VAN201503-202007

main68043-BZ011iS402,412..VAN200811-201205

main68043-BZ012iS402,412..VAN201205-201503

68032ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH

main68032-BZ011iS402..VAN200801-200811

sub68331-B5020

sub68421-B5020

main68032-BZ020iS402,412..VAN201503-202007

main68044-BZ011iS402,412..VAN200811-201205

main68044-BZ012iS402,412..VAN201205-201503

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-B5020iS402,412..VAN200801-201202

main68303-B5021iS403,413..VAN..4FC202007

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-B5030iS402,412..VAN200801-201202

main68304-B5031iS403,413..VAN..5F202007-202503

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-BZ020iS402,412..VAN200801-201204

main68325-BZ030iS402,412..VAN200801-201204

main68325-BZ041iS403,413..VAN..4FC202007

main68325-BZ051iS403,413..VAN..5F202007-202503

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-BZ010iS402,412..VAN200801-201204

main68326-BZ020iS402,412..VAN200801-201204

main68326-BZ031iS403,413..VAN..4FC202007

main68326-BZ041iS403,413..VAN..4FC202007

68333ROLLER, SLIDE DOOR CENTER, NO.1

main68332-B5010×2iS402,412..VAN200806-201406

main68332-B5011×2iS403,413..VAN..4FC202007

main68332-BZ010×2iS402..VAN200801-200805

68334CROLLER, SLIDE DOOR CENTER GUIDE

main68333-B5020×4iS402..VAN200806-200901

main68333-BZ010×4iS402..VAN200801-200805

68341BASE, SLIDE DOOR UPPER ROOLER, RH

main68033-BZ010iS402,412..VAN201204-202007

main68341-BZ010iS402,412..VAN200801-201204

68342BASE, SLIDE DOOR UPPER ROOLER, LH

main68034-BZ010iS403,413..VAN..5F202007-202503

main68342-BZ010iS402,412..VAN200801-201204

68345COVER, SLIDE DOOR CENTER RAIL

main68345-BZ010iS402,412..VAN200801-201404

main68345-BZ011iS403,413..VAN..4FC202007

68346ACOVER, SLIDE DOOR CENTER RAIL, LH

main68346-BZ010iS402,412..VAN200801-201404

main68346-BZ011iS403,413..VAN..5F202007-202503

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-BZ011iS402,412..VAN200801-201406

main68350-BZ013iS403,413..VAN..5F202007-202503

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-BZ011iS402,412..VAN200801-201406

main68360-BZ013iS403,413..VAN..5F202007-202503

68377PAD, SLIDE DOOR CENTER RAIL, FRONT

main68377-97502×4iS403,413..VAN..5F202007-202503

68379SPRING, SLIDE DOOR CATCH, RH

main68379-B5010iS403,413..VAN..5F202007-202503

68380CUSHION ASSY, SLIDE DOOR

main52209-BZ010×2iS403,413..VAN..5F202007-202503

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-BZ011iS402..VAN200801-200901

main68380-BZ021iS402,412..VAN201409-201502

main68380-BZ022iS402,412..VAN201406-201409

main68380-BZ050iS403,413..VAN..5F202007-202503

68389SPRING, SLIDE DOOR CATCH, LH

main68389-B5010iS403,413..VAN..5F202007-202503

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-BZ011iS402..VAN200801-200901

main68390-BZ021iS402,412..VAN200901-201406

main68390-BZ022iS402,412..VAN201406-201409

main68390-BZ050iS403,413..VAN..4FC202007

68395PACKING, SLIDE DOOR CENTER RAIL

main68395-BZ010×2iS403,413..VAN..4FC202007

68759CSPACER, CENTER DOOR HINGE

main68759-B5010×2iS402,412..VAN200901-202007

main90045-60195×2iS402..VAN200801-200812

68791PIN, DOOR HINGE, NO.1

main68791-B5010×2iS402,412..VAN200901-201809

main68791-BZ020×2iS403,413..VAN..4FC202007

main90042-41106×2iS402..VAN200801-200812

69405BSTOP SUB-ASSY, SLIDE DOOR OPEN

main69416-BZ010×2iS403,413..VAN..4FC202007

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69043-BZ010×4iS402,412..VAN200811-201906

main69043-BZ011×4iS403,413..VAN..5F202007-202503

main69415-BZ010×4iS402..VAN200801-200811

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69413-87501×4iS402,412..VAN200801-201802

main69413-BZ010×4iS403,413..VAN..5F202007-202503

69418BSHIM, SLIDE DOOR DOWN STOP MALE

main69418-87501iS402..VAN200801-200806

main69418-BZ020iS403,413..VAN..5F202007-202503

main69418-BZ030iS403,413..VAN..5F202007-202503

main69418-BZ040iS403,413..VAN..4FC202007

main69418-BZ050iS403,413..VAN..4FC202007

69425ACUSHION, SLIDE DOOR STOP

main69419-87502×2iS402,412..VAN200801-202007

68331B5020RAIL, SLIDE DOOR, CENTER

main68331-B5020

68332B5020REINFORCEMENT, SLIDE DOOR CENTER RAIL

main68332-B5020

68371BZ010

main68371-BZ010

68372BZ010

main68372-BZ010

68421B5020RING, NO.1(FOR WINDOW GLASS FRONT STOP)

main68421-B5020

68725BZ010PIN, DOOR HINGE

main68725-BZ010

68725BZ021PIN, DOOR HINGE

main68725-BZ021

9004105361

main90041-05361

9004105436

main90041-05436

9004120080

main90041-20080

9004148002

main90041-48002

9004177006

main90041-77006

9004202096

main90042-02096

9004241142

main90042-41142

9004241161

main90042-41161

9004363245

main90043-63245

9004363266

main90043-63266

9004A10138

main9004A-10138

9004A11199

main9004A-11199

9004A11221

main9004A-11221

9004A11248

main9004A-11248

9163140616

main91631-40616

9165160625

main91651-60625

9323116012

main93231-16012

52 parts on this diagram · 5 diagrams in section
