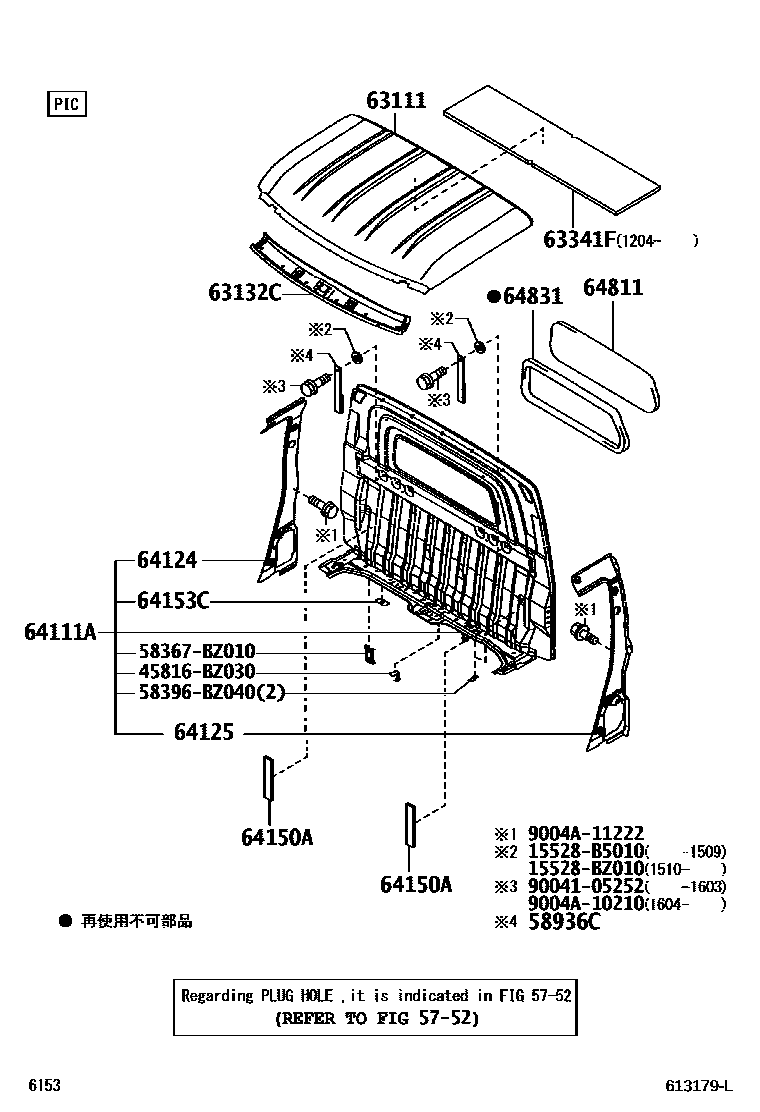

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1

5752

58936CBANED, ENGINE SERVICE HOLE COVER SUPPORT

main58936-BZ020×2iS402..PIC200801-200803

main58936-BZ021iS402,412..PIC200805-202007

main58936-BZ050iS402..PIC200803-200804

main58936-BZ051iS402,412..PIC200805-202007

main58936-BZ090iS403,413..PIC202007

main58936-BZ120iS403,413..PIC202007

63111PANEL, ROOF

main63111-BZ120iS402,412..PIC200801-202007

main63111-BZ170iS402..VAN..DX200801-201006

main63111-BZ171supersedes 63111-BZ021iS403..5F..GL;S413..VAN..5F202007-202503

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-BZ070iS402,412200801-202007

main63132-BZ220iS403,413..VAN..5F202007-202503

63341FPAD, ROOF SILENCER, NO.1

main63341-BZ020×2iS402,412..VAN201006-202007

main63341-BZ120iS403,413..PIC202007

64111APANEL, BACK

main64101-BZ040iS402..PIC200801-200911

sub73223-BZ021

main64101-BZ041iS402..PIC200911-202007

main64101-BZ080iS412..PIC201006-202007

main64101-BZ170iS403..PIC..CBU202007

main64101-BZ190iS413..PIC..CBU202007

main64101-BZ270iS403..IV202010

main64101-BZ280iS413..IV202010

64124PANEL, BACK CORNER, INSIDE, RH

main64015-BZ011iS402..PIC200801-200807

main64015-BZ012iS402..PIC200807-200911

sub73223-BZ021

main64015-BZ013iS402,412..PIC200911-201808

main64015-BZ070iS403,413..PIC..CBU202007

main64015-BZ090iS403,413..IV202010

64125PANEL, BACK CORNER, INSIDE, LH

main64016-BZ021iS402..PIC200801-200807

main64016-BZ022iS402,412..PIC200807-201808

main64016-BZ070iS402,412..PIC201809-202007

64150ACUSHION, RUBBER(FOR BACK FRAME)

main47131-B5080×2iS402,412..PIC201204-201302

main47131-BZ010×2iS402,412..PIC201303-201812

main47131-BZ020×2iS402,412..PIC201812-202007

64153CREINFORCEMENT, BACK FRAME

main64153-BZ010iS402,412..PIC200801-202007

64811GLASS, BACK WINDOW

main64811-BZ030iS402,412..PIC200801-202007

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-87509iS402,412..PIC200801-201307

main64831-BZ010iS403,413..PIC202007

15528B5010GASKET, VALVE(FOR CENTRIFUGAL OIL FILTER)

main15528-B5010

15528BZ010GASKET, VALVE(FOR CENTRIFUGAL OIL FILTER)

main15528-BZ010

45816BZ030BRACKET, WIRE HARNESS

main45816-BZ030

58367BZ010BRACKET, FUEL TUBE CLAMP

main58367-BZ010

58396BZ040HINGE, BODY LOWER BACK MOULDING, CENTER LH

main58396-BZ040

9004105252

main90041-05252

9004A10210

main9004A-10210

9004A11222

main9004A-11222

20 parts on this diagram · 4 diagrams in section
