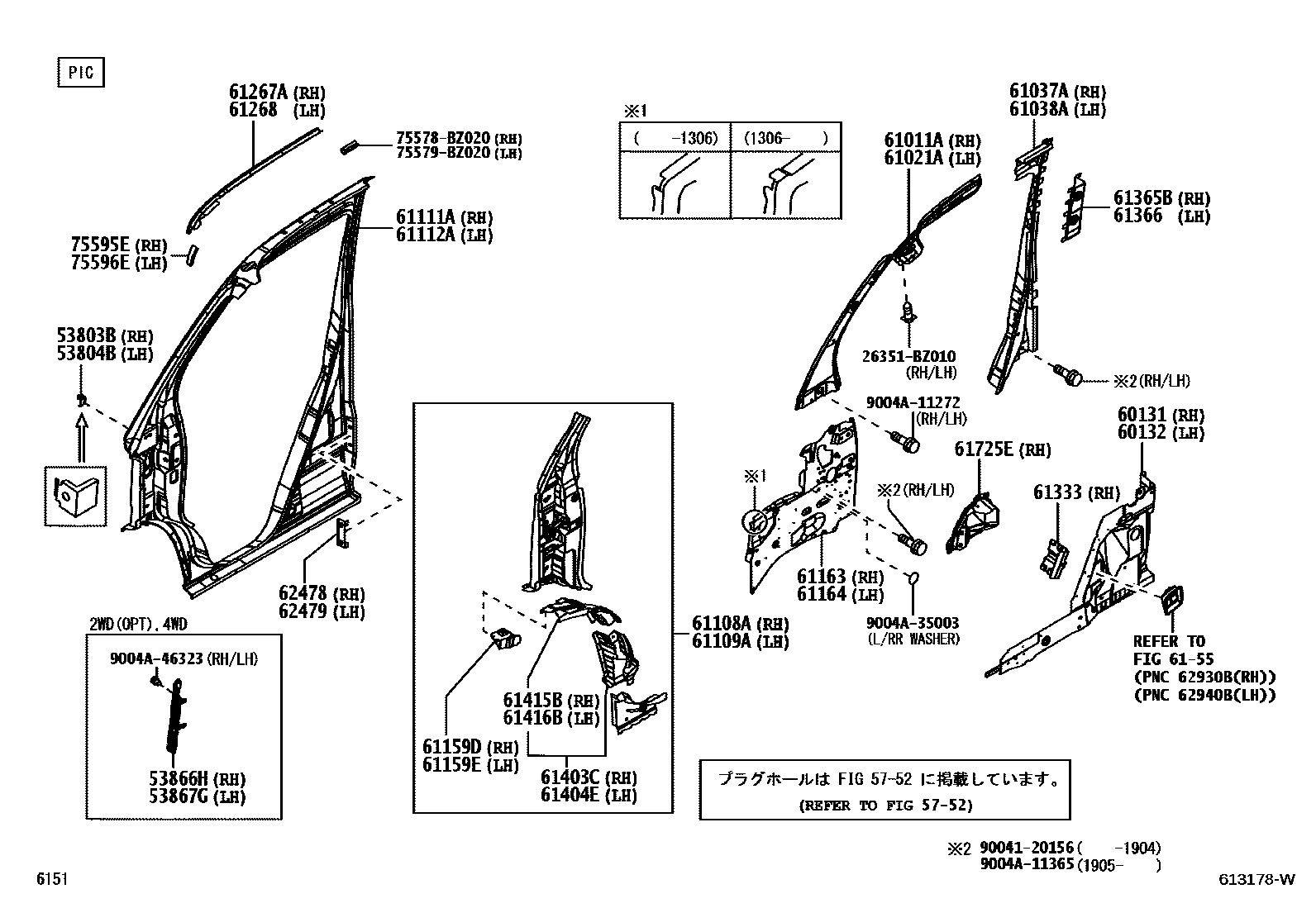

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1FRONT 0005 1REAR

53803BBRACKET SUB-ASSY, FRONT SIDE PANEL, RH

main55168-BZ080iS402,412¥210200801-202503

53804BBRACKET SUB-ASSY, FRONT SIDE PANEL, LH

main55168-BZ080iS402,412¥210200801-202503

53866HSEAL, FRONT FENDER TO COWL SIDE, RH

main53865-BZ050iS413..VAN..5F¥2,120202007-202503

main53865-BZ050iS412¥2,120201006-202007

53867GSEAL, FR FENDER TO COWL SIDE, LH

main53866-BZ030iS403..PIC..CBU;S403..VAN..4FC¥2,120202007-202503

main53866-BZ030iS412¥2,120201006-202007

5752

60131PILLAR SUB-ASSY, CENTER BODY, NO.2 RH

main60131-BZ020iS403,413..PIC¥8,700200801-202007

main60131-BZ040iS403,413..VAN..5F¥7,100200801-202503

60132PILLAR SUB-ASSY, CENTER BODY, NO.2 LH

main60132-BZ020iS403,413..PIC¥8,700200801-202007

main60132-BZ040iS403,413..VAN..4FC¥7,100200801-202503

61011APILLAR SUB-ASSY, NO.1 RH

main61007-BZ160iS402,412..PIC¥9,600200801-202007

main61007-BZ450iS403,413..PIC¥8,700202007

61021APILLAR SUB-ASSY, NO.1 LH

main61008-BZ200iS402,412..PIC¥9,600200801-202007

main61008-BZ550iS403,413..PIC¥8,700202007

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-BZ110iS402..PIC¥10,500200801-200807

main61037-BZ140iS402,412..VAN¥26,100200801-201203

sub61037-BZ141¥27,400

main61037-BZ141iS403,413..VAN..5F¥27,400201204-202503

main61037-BZ170iS402,412..PIC¥8,700200807-202007

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-BZ130iS402..PIC¥13,400200801-200807

main61038-BZ160iS402,412..VAN¥26,100200801-201203

sub61038-BZ161¥27,400

main61038-BZ161iS403,413..VAN..4FC¥27,400201204-202503

main61038-BZ200iS403,413..PIC¥8,700200807-202007

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-BZ060iS403,413..VAN..5F¥20,500200801-202503

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-BZ050iS403,413..VAN..5F¥20,500200801-202503

61111APANEL, FRONT SIDE, OUTER RH

main61111-BZ290iS402..VAN..DX¥42,600200801-200911

main61111-BZ300iS402..VAN..DX¥51,100200801-201204

sub61111-BZ302¥33,600

main61111-BZ301iS402..VAN¥32,000201204-201504

sub61111-BZ302¥33,600

main61111-BZ302iS403..VAN..5F¥33,600201505-202503

main61111-BZ320iS412..VAN¥51,100201006-201204

main61111-BZ321iS402..VAN¥32,000201204-201504

sub61111-BZ322¥33,600

main61111-BZ321iS402..VAN¥32,000201204-201504

sub61111-BZ322¥33,600

main61111-BZ322iS402..VAN¥33,600201505-202007

main61111-BZ322iS413..VAN..5F¥33,600202007-202503

main61111-BZ340iS402..PIC¥32,000200801-201504

sub61111-BZ341¥33,600

main61111-BZ341iS403..PIC¥33,600201505-202007

main61111-BZ360iS412..PIC¥37,000201006-201504

sub61111-BZ361¥33,600

main61111-BZ361iS413..PIC¥33,600202007

main61111-BZ361iS412..PIC¥33,600201505-202007

61112APANEL, FRONT SIDE, OUTER LH

main61112-BZ300iS402..VAN..DX¥42,600200801-200911

main61112-BZ310iS402..VAN..DX¥32,000200801-201204

sub61112-BZA10¥37,000

sub62479-BZ021¥2,990

main61112-BZ311iS402..VAN¥32,000201204-201501

sub61112-BZ312¥33,600

main61112-BZ312iS402..VAN¥33,600201502-201906

sub61112-BZC60¥33,600

main61112-BZ330iS412..VAN¥51,100201006-201204

main61112-BZ331iS402..VAN¥32,000201204-201501

sub61112-BZ332¥33,600

sub62479-BZ021¥2,990

main61112-BZ331iS402..VAN¥32,000201204-201501

sub61112-BZ332¥33,600

sub62479-BZ021¥2,990

main61112-BZ332iS412..VAN¥33,600201502-201906

sub61112-BZC70¥33,600

main61112-BZ360iS402..PIC¥33,600200801-201906

sub61112-BZD00¥33,600

main61112-BZ370iS412..PIC¥33,600201006-201906

sub61112-BZD10¥33,600

main61112-BZC60iS403..VAN..4FC¥33,600201906-202503

main61112-BZC70iS402..VAN¥33,600201906-202007

main61112-BZC70iS413..VAN..5F¥33,600202007-202503

main61112-BZD00iS403..PIC¥33,600201906-202007

main61112-BZD10iS403..PIC..CBU¥33,600202007

main61112-BZD10iS412..PIC¥33,600201906-202007

61159DRETAINER, SIDE PANEL, NO.2 RH

main53728-BZ020iS403,413..VAN..5F¥390200801-202503

61159ERETAINER, SIDE PANEL, NO.2 LH

main53729-BZ030iS403,413..PIC;S403,413..VAN..4FC¥390200801-202503

61163PILLAR, FRONT BODY, INNER RH

main61023-BZ180iS402,412¥6,700200801-201306

sub61023-BZ181¥7,100

main61023-BZ181iS403,413..VAN..5F¥7,100201306-202503

61164PILLAR, FRONT BODY, INNER LH

main61164-BZ110iS402,412¥5,700200801-201306

sub61164-BZ111¥6,000

main61164-BZ111iS402,412¥6,000201306-202503

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-B5040iS402,412..VAN¥6,400200801-201303

sub61267-B5041¥6,800

main61267-B5041iS403,413..VAN..5F¥6,800201304-202503

main61267-B5060iS402,412..PIC¥2,170200801-201303

sub61267-B5061¥2,320

main61267-B5061iS402,412..PIC¥2,320201304-202007

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-B5040iS402,412..VAN¥6,400200801-201303

sub61268-B5041¥6,800

main61268-B5041iS403,413..VAN..4FC¥6,800201304-202503

main61268-B5060iS402,412..PIC¥2,420200801-201303

sub61268-B5061¥2,320

main61268-B5061iS402,412..PIC¥2,320201304-202007

61333PLATE, CENTER PILLAR, RH

main61333-BZ010iS402,412¥870200801-202503

61365BREINFORCE, BELT ANCHOR TO CENTER PILLAR, NO.3 RH

main61365-BZ090iS402..PIC¥4,590200801-200807

main61365-BZ100iS403,413..PIC¥3,820200807-202007

61366REINFORCE, BELT ANCHOR TO CENTER PILLER, NO.3 LH

main61366-BZ040iS402..PIC¥4,590200801-200807

main61366-BZ060iS403,413..PIC¥3,820200807-202007

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-BZ030iS403,413..VAN..5F¥7,100200801-202503

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-BZ050iS403,413..VAN..5F¥7,100200801-202503

61415BEXTENSION, ROCKER, OUTER RH

main61415-BZ010iS403,413..VAN..5F¥3,820200801-202503

61416BEXTENSION, ROCKER, OUTER LH

main61416-BZ010iS403,413..VAN..5F¥3,820200801-202503

6155

61725EBOX, FUEL INLET

main61725-BZ060iS402..PIC¥2,420200801-200911

sub61725-BZ062¥2,420

main61725-BZ070iS402..PIC¥2,000200801-201504

sub61725-BZ072¥2,420

main61725-BZ071iS402,412¥2,840201304-201305

main61725-BZ072iS402,412¥2,420201505-201806

sub61725-BZ073¥2,170

main61725-BZ073iS403,413..PIC;S403,413..VAN..4FC¥2,170201807-202503

62478PATCH, CENTER PILLAR, RH

main61389-BZ020iS402,412..PIC¥480200801-202007

main62478-BZ020iS402,412..VAN¥2,320200801-202503

62479PATCH, CENTER PILLAR, LH

main61389-BZ020iS403,413..PIC¥480200801-202007

main62479-BZ020iS402,412..VAN¥2,750200801-201501

sub62479-BZ021¥2,990

main62479-BZ021iS403,413..VAN..4FC¥2,990201502-202503

75595ECOVER, ROOF DRIP SIDE MOULDING END, FRONT RH

main75595-BZ010iS402,412..VAN¥610200801-201401

sub75595-BZ020¥640

main75595-BZ010iS402,412..VAN¥610200801-201401

sub75595-BZ020¥640

main75595-BZ020iS402,412..VAN¥640201312-202007

main75595-BZ020iS402,412..VAN¥640201312-202007

main75595-BZ020iS403,413..PIC;S403,413..VAN..4FC¥640202007-202503

75596ECOVER, ROOF DRIP SIDE MOULDING END, FRONT LH

main75596-BZ010iS402..PIC..5F..DX¥610200801-201401

sub75596-BZ020¥640

main75596-BZ010iS402,412..VAN¥610200801-201401

sub75596-BZ020¥640

main75596-BZ020iS402..PIC..5F..DX¥640201312-202007

main75596-BZ020iS403,413..VAN..5F¥640202007-202503

main75596-BZ020iS402,412..VAN¥640201312-202007

26351BZ010SCREW

main26351-BZ010¥160

75578BZ020MOULDING, BACK WINDOW CORNER, LOWER LH

main75578-BZ020¥830

75579BZ020COVER, BACK WINDOW OUTSIDE MOULDING JOINT

main75579-BZ020¥830

9004120156

main90041-20156¥110

9004A11272

main9004A-11272

9004A11365

main9004A-11365

9004A35003

main9004A-35003

9004A46323

main9004A-46323¥170

42 parts on this diagram · 5 diagrams in section
