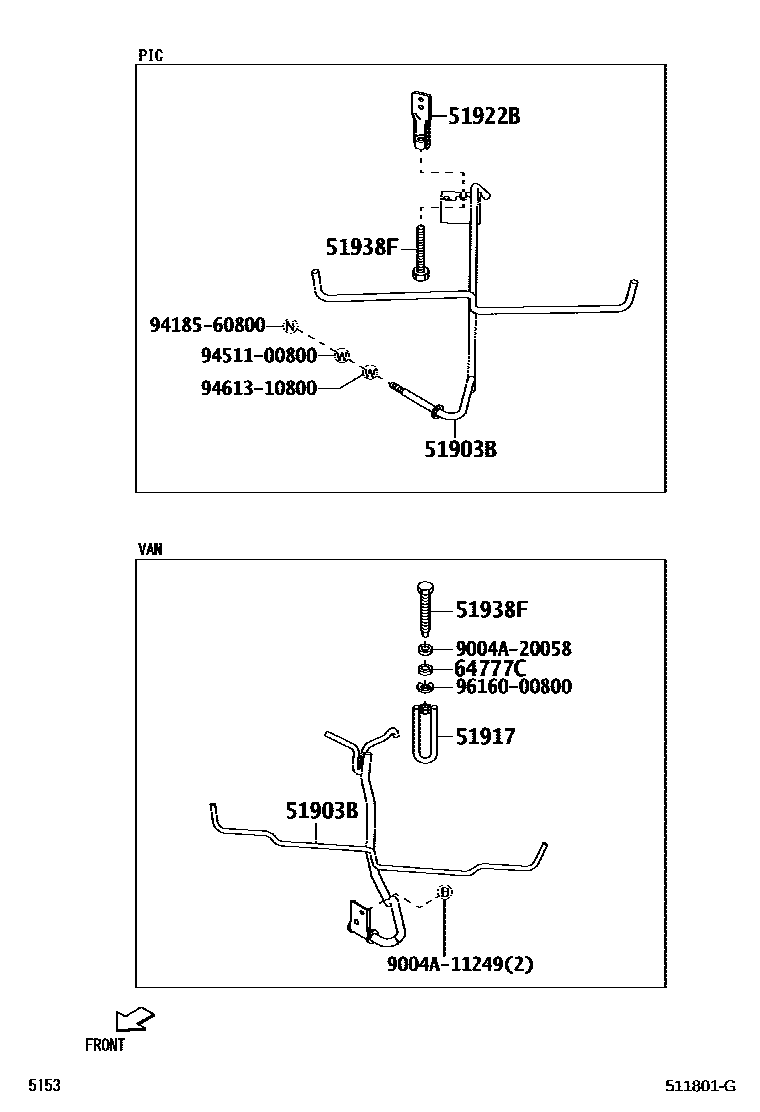

SPARE WHEEL CARRIER

0001 1 0002 1

51903BCARRIER SUB-ASSY, SPARE WHEEL

main51903-BZ070iS402,412..VAN200801-202007

main51903-BZ100iS402..PIC200801-200802

sub51903-BZ101

main51903-BZ101iS402,412..PIC200802-201011

sub51903-BZ102

main51903-BZ102iS402,412..PIC201012-202007

main51903-BZ190iS403,413..PIC202007

main51903-BZ230iS403,413..VAN..5F202007-202503

51917HOOK, SPARE WHEEL CARRIER

main51909-BZ030iS402..VAN200801-201004

sub51909-BZ031

main51909-BZ031iS403,413..VAN..5F201005-202503

51922BHANGER, SPARE WHEEL CARRIER

main51902-87Z10iS402,412..PIC200801-201010

sub51902-BZ050

main51902-BZ050iS403,413..PIC201011-202007

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main51934-87502iS402,412..PIC200801-201510

main90041-01685iS402,412..VAN200807-201209

main90041-01707iS402..VAN200801-200807

sub90041-01685

main9004A-10154iS402,412..VAN201210-202503

main9004A-11335iS403,413..PIC201511-202007

64777CCUSHION, SPARE WHEEL

main64777-BZ010iS403,413..VAN..5F200801-202503

9004A11249

main9004A-11249

9004A20058

main9004A-20058

9418560800

main94185-60800

9451100800

main94511-00800

9461310800

main94613-10800

9616000800

main96160-00800

11 parts on this diagram · 2 diagrams in section
