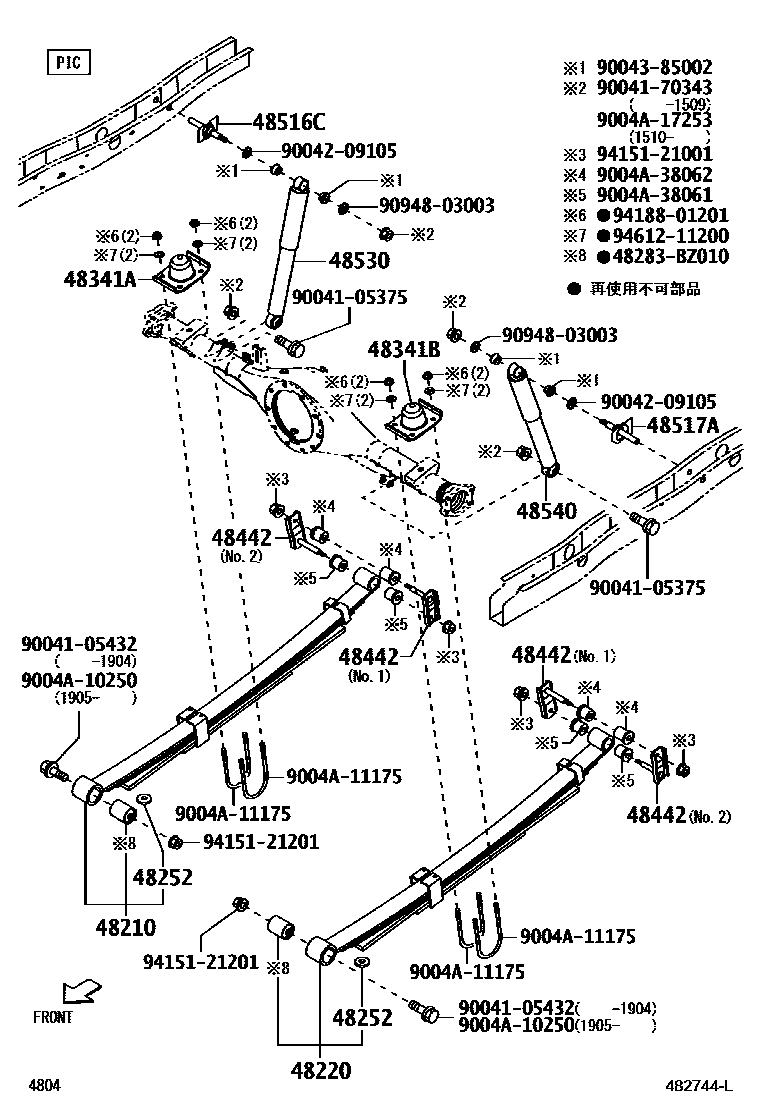

REAR SPRING & SHOCK ABSORBER
48210SPRING ASSY, REAR RH
48220SPRING ASSY, REAR LH
48341BUMPER, REAR SPRING
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48442SHACKLE, SPRING, NO.2
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48516CBRACKET, REAR SHOCK ABSORBER, NO.1 RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
sub48530-BZ051
sub48530-BZ053
sub48530-BZ053
sub48530-BZ054
sub48530-BZ071
sub48530-BZ072
sub48530-BZ073
sub48530-BZ074
sub48531-BZ281
sub48531-BZ282
sub48531-BZ283
sub48531-BZ284
sub48531-BZ521
sub48531-BZ522
sub48531-BZ523
sub48531-BZ524
48540ABSORBER ASSY, SHOCK, REAR LH
sub48530-BZ051
sub48530-BZ053
sub48530-BZ053
sub48530-BZ054
sub48530-BZ071
sub48530-BZ072
sub48530-BZ073
sub48530-BZ074
sub48531-BZ281
sub48531-BZ282
sub48531-BZ283
sub48531-BZ284
sub48531-BZ521
sub48531-BZ522
sub48531-BZ523
sub48531-BZ524
48283BZ010CLIP, REAR HELPER SPRING, NO.2
main48283-BZ010
9004105375
main90041-05375
9004105432
main90041-05432
9004170343
main90041-70343
9004209105
main90042-09105
9004385002
main90043-85002
9004A10250
main9004A-10250
9004A11175
main9004A-11175
9004A17253
main9004A-17253
9004A38061
main9004A-38061
9004A38062
main9004A-38062
9094803003
main90948-03003
9415121001
main94151-21001
9415121201
main94151-21201
9418801201
main94188-01201
9461211200
main94612-11200
29 parts on this diagram · 4 diagrams in section
