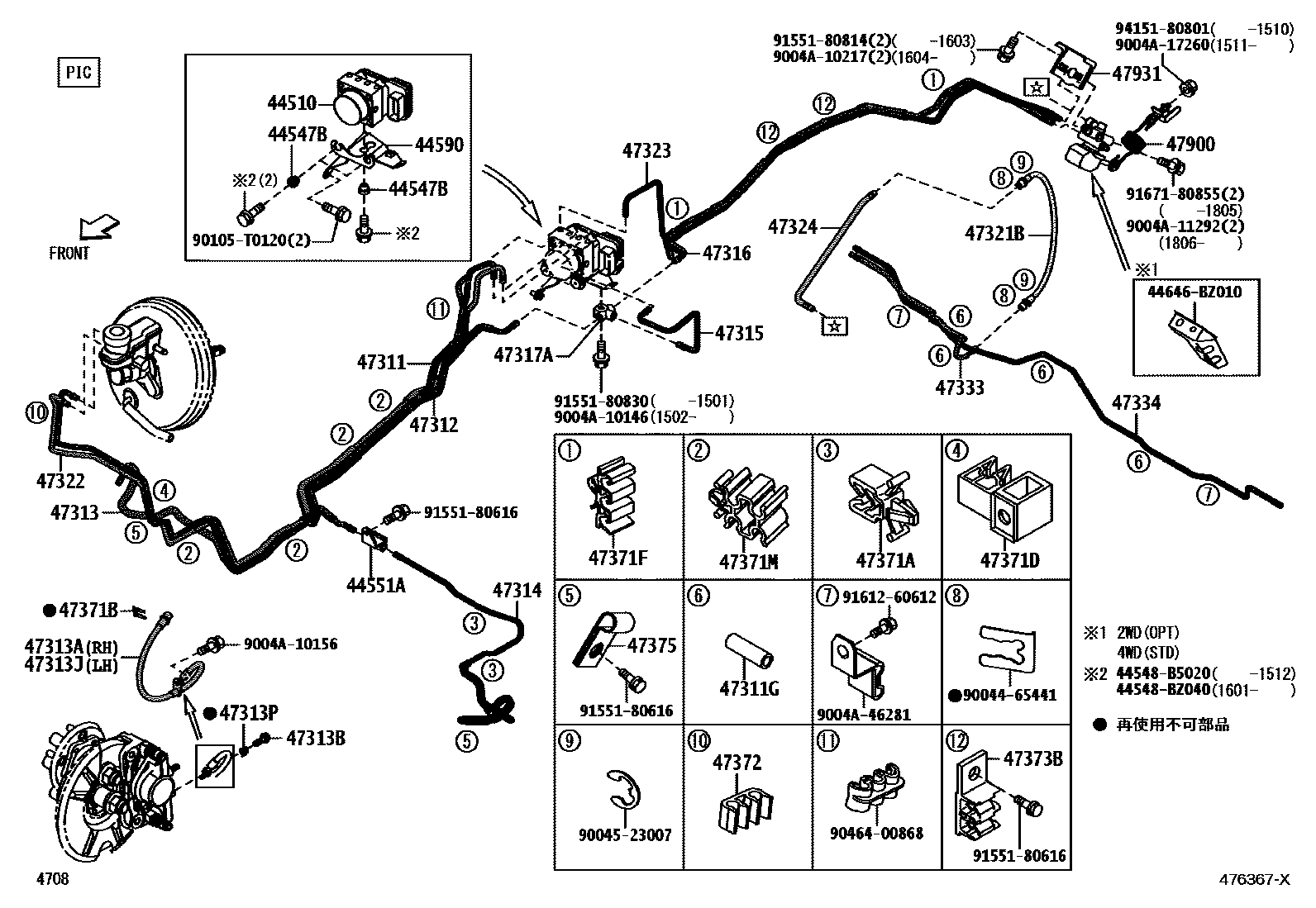

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1PIC 0004 1VAN 0005 1�������

44510ACTUATOR ASSY, BRAKE

main44050-B5030iS402200801-202007

main44050-B5050iS412201006-202007

main44050-B5280iS403..VAN..4FC202007

main44050-B5290iS403..VAN..5F202007-202503

main44050-B5300iS413..VAN..4FC202007

main44050-B5310iS413..VAN..5F202007-202503

main44050-B5320iS403..PIC..4FC202007

main44050-B5330iS403..PIC..5F202007

main44050-B5340iS413..PIC..4FC202007

main44050-B5350iS413..PIC..5F202007

44547BCUSHION, BRAKE ACTUATOR BRACKET

main44547-BZ030×3iS402,412200801-202007

44551AWAY, NO.1(FOR BRAKE ACTUATOR)

main44508-B5010iS403,413..PIC;S403,413..VAN..4FC202007

44590BRACKET ASSY, BRAKE ACTUATOR

main44590-BZ010iS402,412200801-202007

main44590-BZ160iS403,413..PIC;S403,413..VAN..4FC202007

47311TUBE, FRONT BRAKE, NO.1

main47311-BZ240iS402,412200801-202007

main47311-BZ640iS403,413..VAN..5F202007-202503

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90044-46059×3iS402,412..PIC200801-201205

main9004A-44063×3iS402,412..PIC201206-202007

47312TUBE, FRONT BRAKE, NO.2

main47312-BZ230iS402,412200801-202007

main47312-BZ640iS403,413..VAN..5F202007-202503

47313TUBE, FRONT BRAKE, NO.3

main47313-BZ210iS402,412200801-202007

main47313-BZ600iS403,413..VAN..5F202007-202503

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main9004A-94094iS402200801-202007

sub9004A-94155

main9004A-94107iS412201006-202007

main9004A-94137iS403..VAN..5F202007-202503

main9004A-94143iS413..VAN..5F202007-202503

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90044-01079×2iS402,412200801-201210

main90401-10058×2iS403,413..PIC;S403,413..VAN..4FC202007

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main9004A-94095iS402200801-202007

sub9004A-94156

main9004A-94108iS412201006-202007

main9004A-94138iS403..VAN..5F202007-202503

main9004A-94144iS413..PIC;S413..VAN..4FC202007

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iS402,412201211-202007

main47389-97201×2iS402,412200801-201210

47314TUBE, FRONT BRAKE, NO.4

main47314-BZ200iS402,412200801-202007

main47314-BZ630iS403,413..VAN..5F202007-202503

47315TUBE, FRONT BRAKE, NO.5

main47315-BZ010iS402,412200801-202007

47316TUBE, FRONT BRAKE, NO.6

main47316-BZ030iS402,412..VAN200801-202007

main47316-BZ040iS402,412..PIC200801-202007

main47316-BZ050iS403,413..PIC;S403,413..VAN..4FC202007

47317AWAY(FOR BRAKE TUBE)

main90044-13032iS402,412200801-202007

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main9004A-94096iS402,412..VAN200801-202007

sub9004A-94157

main9004A-94097iS402,412..PIC200801-202007

sub9004A-94158

main9004A-94139×2iS403,413..VAN..4FC202007

main9004A-94140×2iS403,413..PIC202007

47322TUBE, REAR BRAKE, NO.2

main47322-BZ100iS402,412200801-202007

main47322-BZ400iS403,413..PIC202007

main47322-BZ410iS403,413..VAN..4FC202007

47323TUBE, REAR BRAKE, NO.3

main47323-BZ120iS402,412..VAN200801-202007

main47323-BZ130iS402,412..PIC200801-202007

main47323-BZ240iS403,413..PIC202007

main47323-BZ250iS403,413..VAN..4FC202007

47324TUBE, REAR BRAKE, NO.4

main47324-BZ120iS402,412..VAN200801-202007

main47324-BZ140iS402,412..PIC200801-202007

47333TUBE, REAR BRAKE, NO.12

main47333-BZ010iS402,412..VAN200801-202007

main47333-BZ020iS402,412..PIC200801-202007

main47333-BZ060iS403,413..VAN..5F202007-202503

main47333-BZ070iS403,413..PIC202007

47334TUBE, REAR BRAKE, NO.13

main47334-BZ010iS402,412..VAN200801-202007

main47334-BZ020iS402,412..PIC200801-202007

main47334-BZ090iS403,413..VAN..4FC202007

main47334-BZ110iS403,413..PIC202007

47371ACLAMP, BRAKE TUBE, NO.1

main47371-B5030×4iS403,413..PIC;S403,413..VAN..4FC202007

main90044-64852×2iS402,412..PIC200801-202007

47371BCLAMP, BRAKE TUBE, NO.6

main90044-65441×2iS402,412200801-202007

main90464-00904iS403,413..VAN..5F202007-202503

47371DCLAMP, BRAKE TUBE, NO.8

main47371-BZ050iS403,413..VAN..5F202007-202503

main90044-64710iS412200801-202007

47371FCLAMP, BRAKE TUBE, NO.10

main90044-64742×2iS402200801-200811

main9004A-46290×2iS402,412..VAN200812-201404

47371MCLAMP, BRAKE TUBE, NO.13

main90044-64853×4iS402,412200801-201509

main9004A-46360×4iS402,412201510-202007

47372CLAMP, BRAKE TUBE, NO.2

main90044-64731×2iS402,412..PIC200801-202007

47373BCLAMP, BRAKE TUBE, NO.3

main47371-BZ030×2iS403,413..PIC202007

main90044-64424×2iS402,412..PIC200801-202007

main90044-64622iS402,412..VAN200801-201404

47375CLAMP, BRAKE TUBE, NO.5

main90044-64891×2iS403,413..PIC202007

main96221-10706×2iS402,412200801-202007

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-BZ030iS402,412..VAN200801-202007

main47900-BZ040iS402,412..PIC200801-202007

47931BRACKET, LOAD SENSING VALVE

main47931-BZ010iS402,412..PIC200801-202007

44548B5020CLAMP(FOR BRAKE ACTUATOR)

main44548-B5020

44548BZ040CLAMP(FOR BRAKE ACTUATOR)

main44548-BZ040

44646BZ010GASKET, BOOSTER PISTON

main44646-BZ010

9004465441

main90044-65441

9004523007

main90045-23007

9004A10146

main9004A-10146

9004A10156

main9004A-10156

9004A10217

main9004A-10217

9004A11292

main9004A-11292

9004A17260

main9004A-17260

9004A46281

main9004A-46281

90105T0120

main90105-T0120

9046400868

main90464-00868

9155180616

main91551-80616

9155180814

main91551-80814

9155180830

main91551-80830

9161260612

main91612-60612

9167180855

main91671-80855

9415180801

main94151-80801
