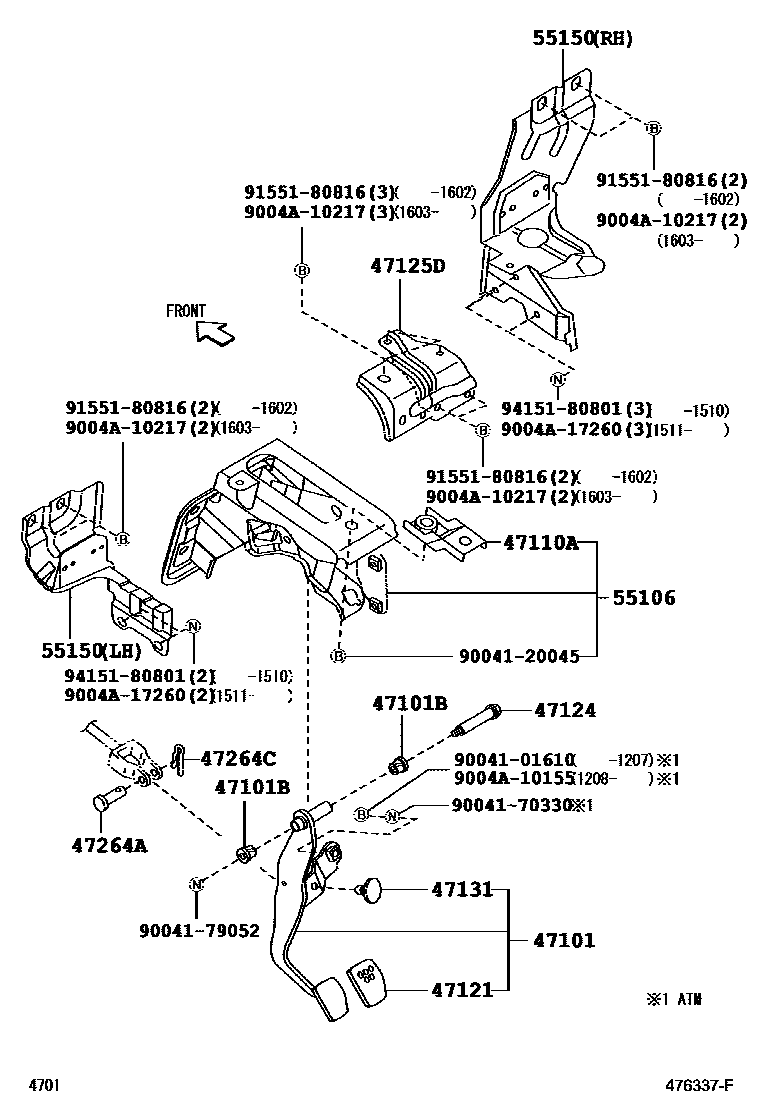

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-BZ170iS402,412200801-202007

main47101-BZ520iS403,413202007-202108

main47101-BZ521iS403,413..VAN..5F202108-202503

47101BBUSH(FOR BRAKE PEDAL)

main9004A-38021iS403,413200801-202105

main9004A-38094iS403,413..VAN..5F202106-202503

47110ABRACKET ASSY, PEDAL

main55150-BZ050iS402,412200801-202007

47121PAD, BRAKE PEDAL

main31321-BZ100iS402,412200801-202007

main31321-BZ140iS403,413..PIC;S403,413..VAN..4FC202007-202503

47124SHAFT, BRAKE PEDAL

main47124-BZ010iS402,412200801-202007

main9004A-10281iS403,413..VAN..5F202104-202503

main91551-80865iS403,413202007-202103

47125DSTAY, BRAKE PEDAL BRACKET

main55013-BZ010iS402,412200801-202007

47131CUSHION(FOR STOP LAMP SWITCH)

main9004A-54029iS402,412200801-202007

sub90045-40158

47264APIN(FOR PUSH ROD)

main90042-40075iS402,412200801-201210

main90042-40151iS403,413..PIC;S403,413..VAN..4FC201211-202503

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iS402,412201211-202503

main90044-68337iS402,412200801-201210

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-BZ220iS402,412..5F200801-201203

sub55106-BZ221

main55106-BZ221iS402,412..5F201204-202007

main55106-BZ230iS402,412..4FC200801-201203

sub55106-BZ231

main55106-BZ231iS402,412..4FC201204-202007

main55106-BZ420iS403,413..VAN..5F202007-202503

55150BRACKET ASSY, PEDAL

main55108-BZ010iS402,412200801-202007

main55715-BZ010iS403,413..VAN..5F202007-202503

main55716-BZ010iS403,413..PIC;S403,413..VAN..4FC200801-202503

9004101610

main90041-01610

9004120045

main90041-20045

9004170330

main90041-70330

9004179052

main90041-79052

9004A10155

main9004A-10155

9004A10217

main9004A-10217

9004A17260

main9004A-17260

9155180816

main91551-80816

9415180801

main94151-80801

20 parts on this diagram · 2 diagrams in section
