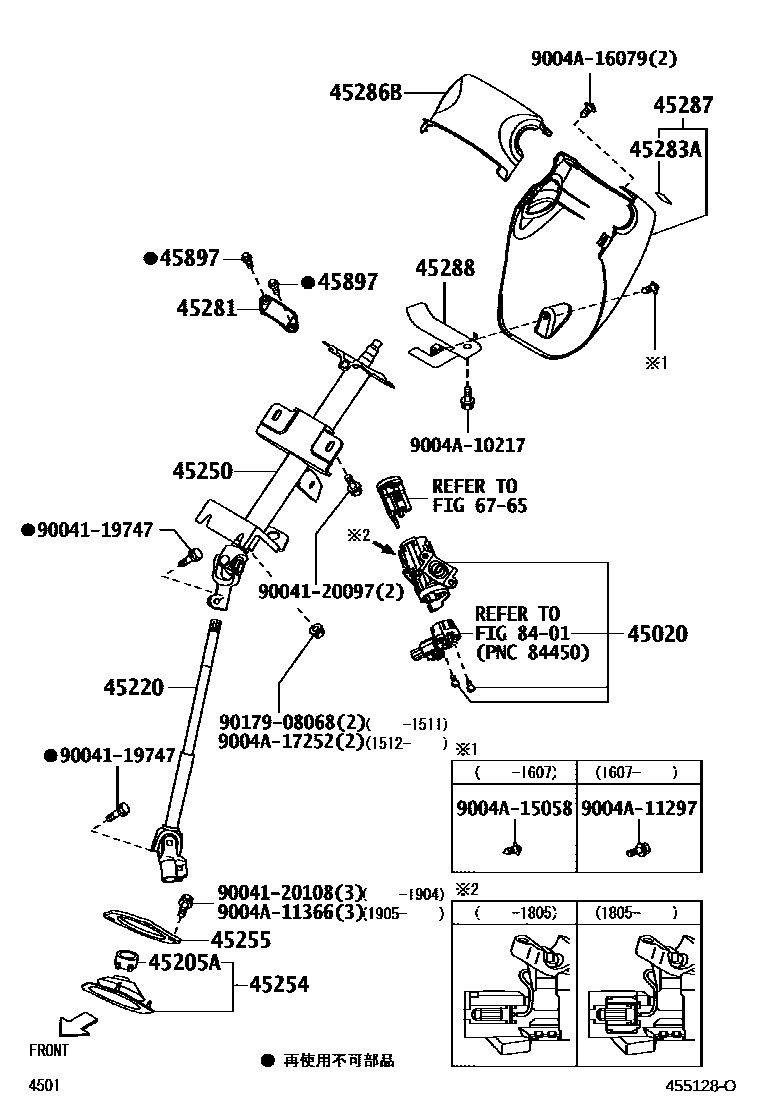

STEERING COLUMN & SHAFT

0001 1 0002 1

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-BZ040iS402,412..5F200801-201312

sub45020-BZ041

main45020-BZ041iS402,412..5F201401-201805

main45020-BZ042iS402,412..5F201805-202007

main45020-BZ050iS402,412..4FC200801-201312

sub45020-BZ051

main45020-BZ051iS402,412..4FC201401-201805

main45020-BZ052iS402,412..4FC201805-202007

main45020-BZ270iS403,413..4FC202007

main45020-BZ280iS403,413..VAN..5F202007-202503

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-BZ210iS403,413..VAN..5F202007-202503

45205ABUSH(FOR STEERING COLUMN TUBE)

main45273-B0040iS402,412201207-202007

main45273-B5020iS403,413..VAN..5F202007-202503

main90043-85186iS402,412200801-201206

sub45273-B0040

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-B5010iS402,412200801-201307

sub45220-B5011

main45220-B5011iS402,412201308-202007

main45220-BZ290iS403,413..VAN..5F202007-202503

45250COLUMN ASSY, STEERING

main45250-BZ080iS402,412200801-201205

sub45250-BZ081

main45250-BZ081iS402,412201206-202007

45254SHIELD, STEERING COLUMN HOLE

main45254-BZ080iS402,412200801-201206

sub45254-BZ081

main45254-BZ081iS402,412201207-202007

main45254-BZ210iS403,413..VAN..5F202007-202503

45255PLATE, STEERING COLUMN HOLE COVER

main45223-BZ010iS403,413..PIC;S403,413..VAN..4FC200801-202503

45281HOUSING, STEERING COLUMN

main45281-B0010iS402,412200801-201505

main45281-BZ110iS402,412201506-202007

main45281-BZ140iS403,413..PIC;S403,413..VAN..4FC202007-202503

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-BZ010iS403,413..VAN..5F200801-202503

45286BCOVER, STEERING COLUMN, UPR

main45286-BZ090-B0iS402,412200801-202007

DK.GRAY,TRIM1#

main45286-BZ230-B0iS403,413..VAN..5F202007-202503

DK.GRAY,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-BZ100-B0iS402,412200801-202007

DK.GRAY,TRIM1#

main45287-BZ410-B0iS403,413..VAN..5F202007-202503

DK.GRAY,TRIM1#

45288PLATE, STEERING COLUMN COVER

main45288-BZ060iS403,413..VAN..5F202007-202503

main76616-BZ010iS402,412200801-201607

sub76616-BZ011

sub9004A-11297

main76616-BZ011iS402,412201607-202007

45897BOLT, STEERING LOCK SET

main45897-B2010iS403,413..VAN..5F200801-202503

6765

8401

9004119747

main90041-19747

9004120097

main90041-20097

9004120108

main90041-20108

9004A10217

main9004A-10217

9004A11297

main9004A-11297

9004A11366

main9004A-11366

9004A15058

main9004A-15058

9004A16079

main9004A-16079

9004A17252

main9004A-17252

9017908068

main90179-08068

25 parts on this diagram · 2 diagrams in section
