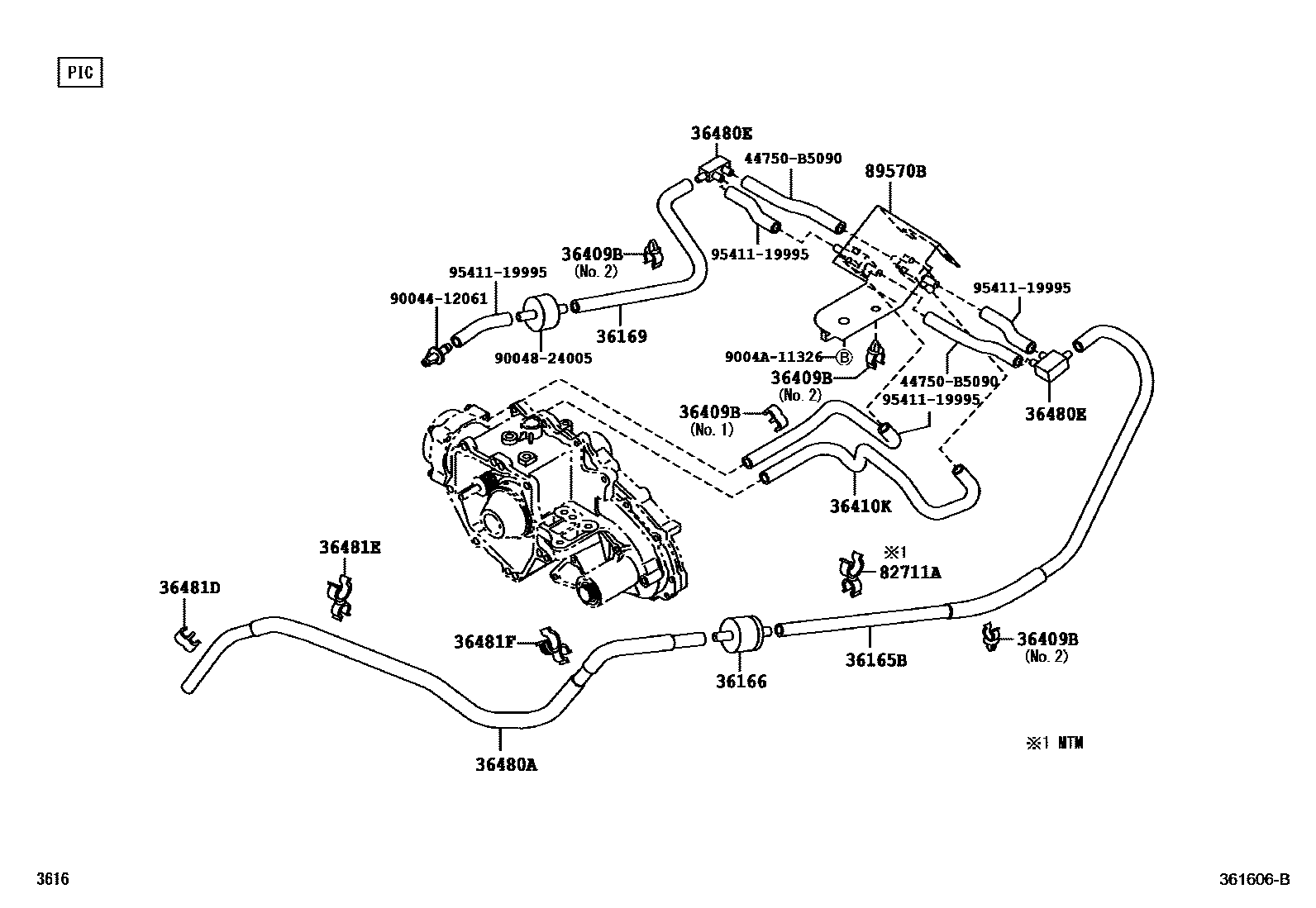

TRANSFER VACUUM PIPING

0001 1PIC 0002 1VAN 0003 1

36165BHOSE(CHECK VALVE, NO.2)

main44750-B5130iS412..4FC201006-202007

main44750-B5180iS412..5F201006-202007

36166VALVE, CHECK

main90048-20008iS412201006-202503

36169HOSE

main44750-B5160iS412..VAN201006-202503

main44750-B5170iS413..PIC201006-202007

36409BCLAMP, VACUUM TUBE

main90044-64108iS413..VAN..5F201006-202503

main90044-64456iS413..PIC..5F201006-202503

36410KHOSE, VACUUM (FOR TRANSFER VACUUM)

main44750-B5150iS412201006-202007

main44750-B5470iS413..VAN..5F202007-202503

36480AHOSE (FOR VACUUM CHECK VALVE)

main44750-B5140iS412201006-202007

main44750-B5240iS413..PIC;S413..VAN..4FC202007-202503

36480EWAY, 3 (FOR TRANSFER VACUUM TUBE)

main90044-13034iS413..VAN..5F201006-202503

36481DCLAMP, NO.1 (FOR TRANSFER VACUUM)

main44783-BZ050iS413..VAN..5F202007-202503

main90464-00576iS412201006-202007

36481ECLAMP, NO.2 (FOR TRANSFER VACUUM)

main90044-64875iS412201006-202007

36481FCLAMP, NO.3(FOR TRANSFER VACUUM)

main90044-64185iS412201006-202007

82711ACLAMP(FOR TRANSFER VACUUM TUBE)

main35523-B2060iS413..4FC202007

main90044-64864iS412..5F201006-202007

89570BVALVE ASSY, VACUUM SWITCHING

main89470-B5060iS413..VAN..5F201006-202503

44750B5090HOSE ASSY, VACUUM

main44750-B5090

9004412061

main90044-12061

9004824005

main90048-24005

9004A11326

main9004A-11326

9541119995

main95411-19995

17 parts on this diagram · 3 diagrams in section
