TRANSFER CASE & EXTENSION HOUSING

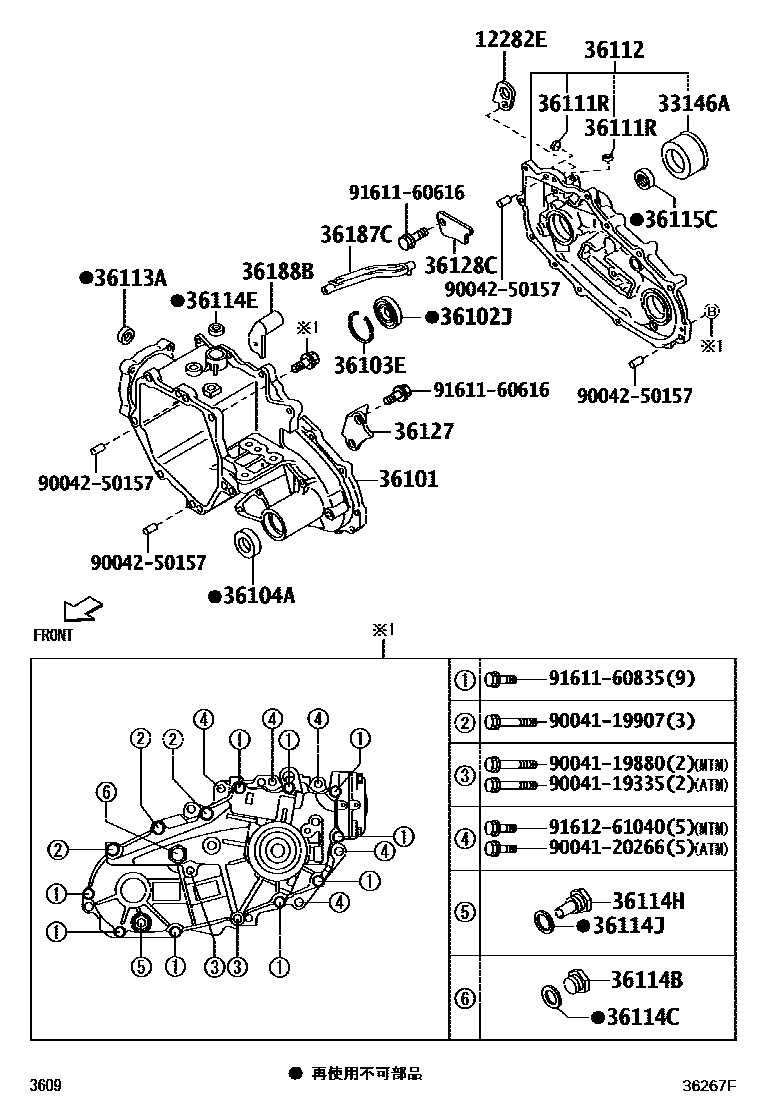

Parts diagram

12282EHANGER, TRANSFER CASE

main12282-87501i202007-202503

33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST

main33146-87404i201006-202007

main33146-B5020i202007-202503

36101CASE SUB-ASSY, TRANSFER

main36103-87401i202007

main36103-B4010i202007

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main88364-87501i201006-202007

36103ERING, HOLE SNAP (FOR TRANSFER CASE BEARING)

main90045-21156i202007-202503

36104ASEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT)

main90043-11320i202007

36111RPLUG, TIGHT (FOR TRANSFER CASE)

main90043-31029×2i202007-202503

36112CASE, TRANSFER, REAR

main36104-B5030i201006-202007

main36104-B5031i202007-202503

36113ASEAL, OIL (FOR TRANSFER CASE RH)

main90043-11362i202007-202503

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90043-41052i202311

main90341-16012i201006-202007

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90044-30178i202007-202503

36114ESEAL, OIL (FOR TRANSFER CASE LH)

main90043-13008i202007-202503

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90043-41068i202007-202503

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main90044-30055i202007-202503

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90043-11285i202007

36127PLATE, TRANSFER OIL

main36127-87506i202007

36128CPLATE, TRANSFER OIL SUPPLY

main36128-87503i202007-202503

36187CPIPE, TRANSFER OIL SUPPLY, RH

main36187-87502i202007

36188BPIPE, TRANSFER OIL SUPPLY, LH

main36188-87401i202007

main36188-B5010i202007-202503

9004119335

main90041-19335

9004119880

main90041-19880

9004119907

main90041-19907

9004120266

main90041-20266

9004250157

main90042-50157

9161160616

main91611-60616

9161160835

main91611-60835

9161261040

main91612-61040

27 parts on this diagram · 1 diagram in section
