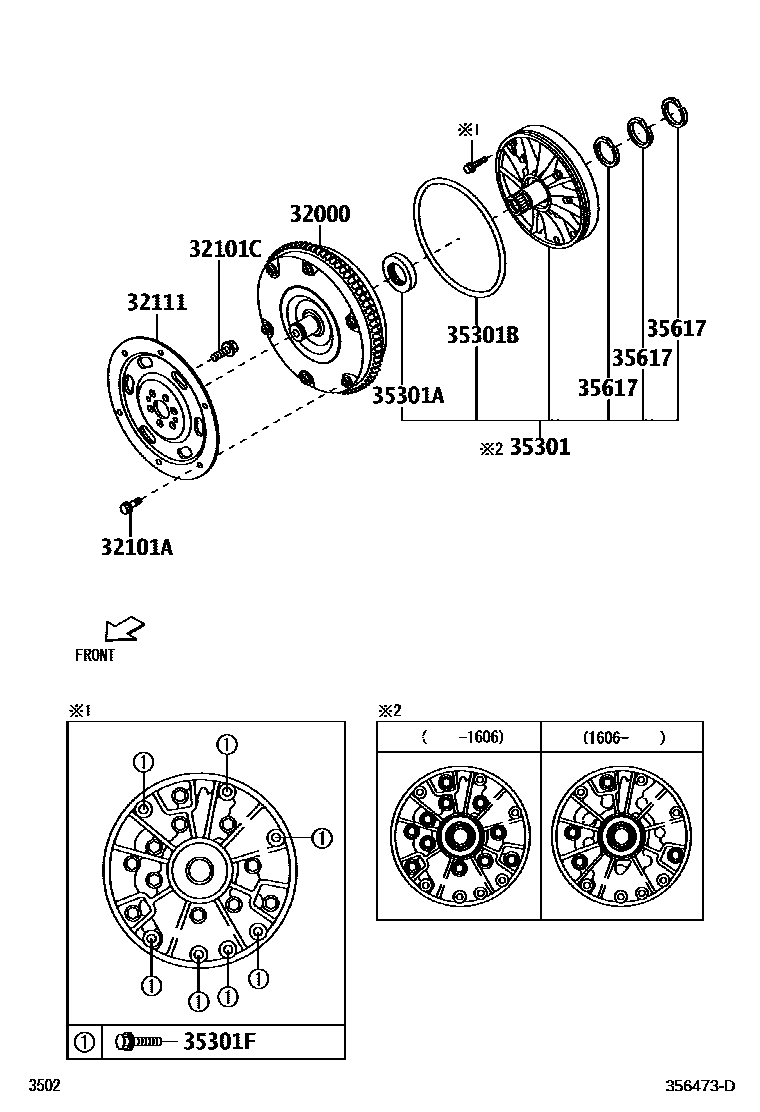

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

32000CONVERTER ASSY, TORQUE

main32000-B5010iS402..4FC200801-200802

main32000-B5011iS402,412..4FC200802-202007

main32000-B5130iS403,413..4FC202007

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90041-05273iS402,412..4FC200801-202007

main90041-05281×5iS403,413..4FC202007-202101

main90041-05595iS403,413..4FC202101

main90041-05596×5iS403,413..4FC202101

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90048-01037×6iS402,412..4FC200801-201808

main9004A-10200×8iS403,413..4FC202007

32111PLATE, PUMP IMPELLER DRIVE

main32103-97501iS402,412..4FC200801-202007

main32111-BZ070iS403,413..4FC202007

35301BODY SUB-ASSY, FRONT OIL PUMP

main35310-97203iS402,412..4FC200801-201606

main35310-B1050iS403,413..4FC202007

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90043-11336iS403,413..4FC202007

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90043-01161iS403,413..4FC202007

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90041-05122×7iS403,413..4FC202007

35617RING, CLUTCH DRUM OIL SEAL

main35653-97201×3iS402,412..4FC200801-201603

main35653-B1010×3iS403,413..4FC202007

9 parts on this diagram · 2 diagrams in section
