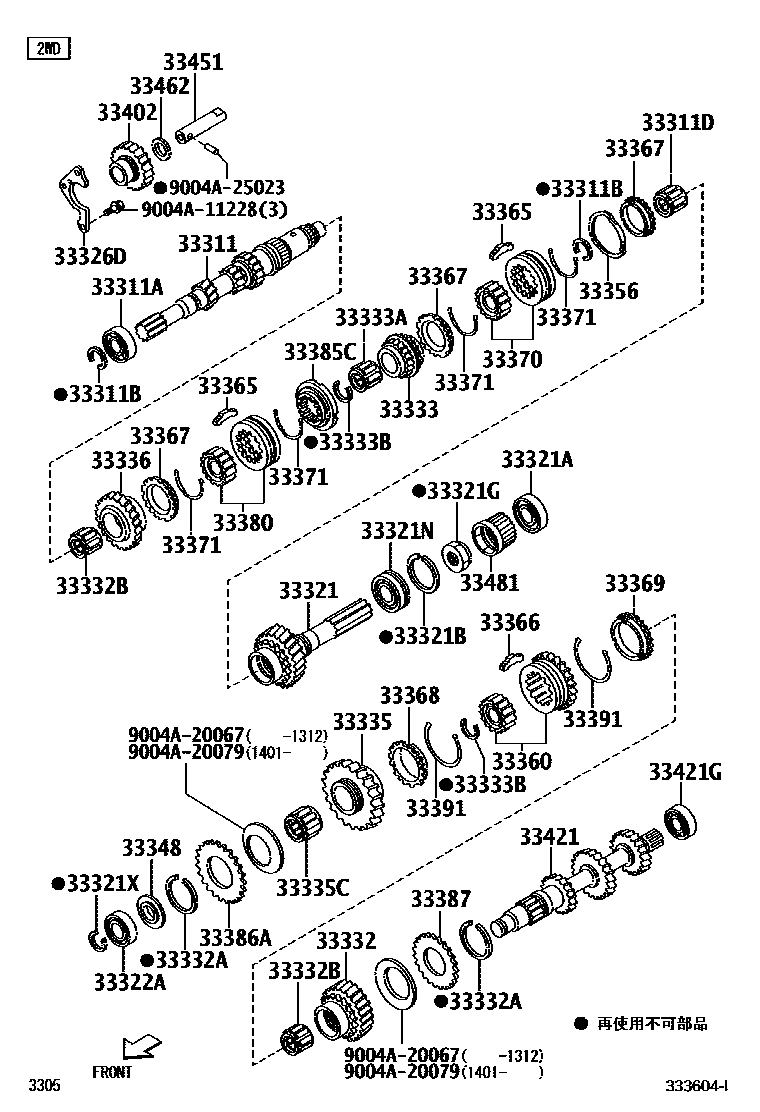

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311DBEARING, INPUT SHAFT
33321ABEARING (FOR OUTPUT SHAFT REAR)
sub90043-63312
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
sub90041-79327
33321XRING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
33322ABEARING (FOR OUTPUT SHAFT NO.2 REAR)
33326DPLATE, INPUT SHAFT BEARING LOCK
33332ARING, SHAFT SNAP (FOR 2ND GEAR)
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33333BRING, SHAFT SNAP (FOR 3RD REAR)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33348WASHER, 1ST GEAR THRUST
33356SPRING, WAVE
33360HUB ASSY, SYNCHRONIZER, NO.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33370HUB ASSY, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33380HUB ASSY, SYNCHRONIZER, NO.3
33385CSTOPPER, HUB SLEEVE
33386ASUB-GEAR, 1ST
33387SUB-GEAR, NO.2
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
33421GEAR, COUNTER
33421GBEARING, RADIAL BALL(FOR COUNTER GEAR REAR)
33451SHAFT, REVERSE IDLER GEAR
33462WASHER, REVERSE IDLER THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
9004A11228
main9004A-11228
9004A20067
main9004A-20067
9004A20079
main9004A-20079
9004A25023
main9004A-25023
46 parts on this diagram · 2 diagrams in section
