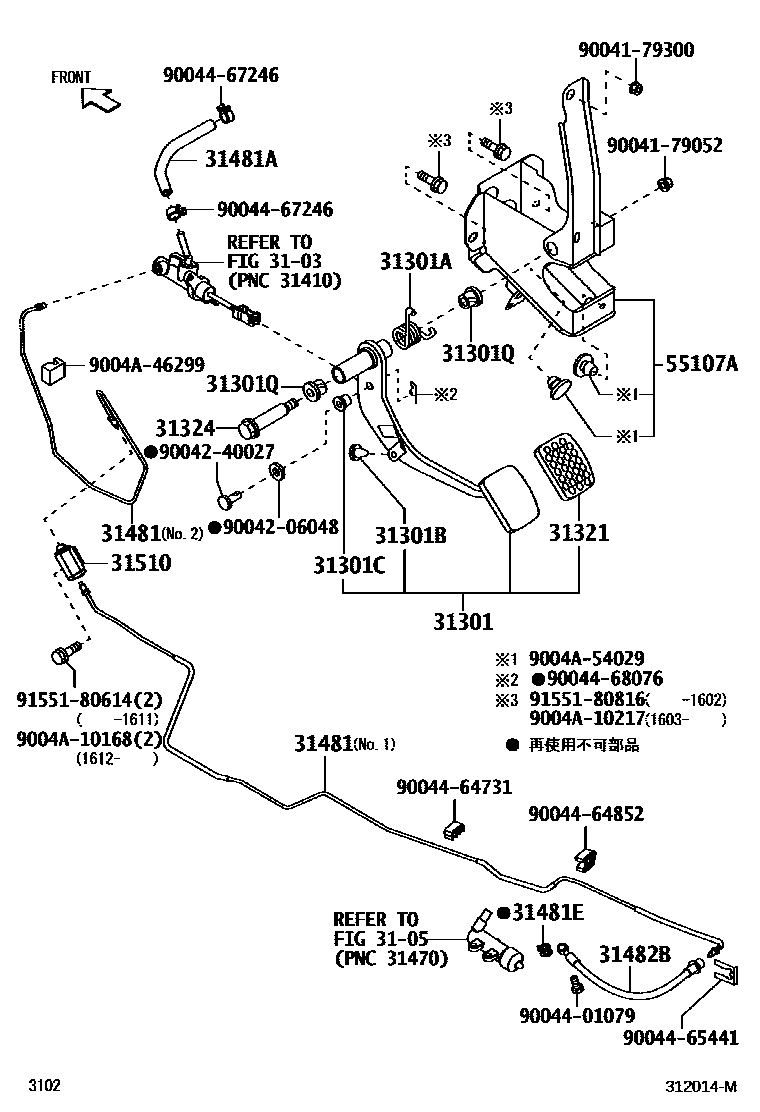

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

3103

3105

31301PEDAL SUB-ASSY, CLUTCH

main31301-BZ160iS402,412..5F200801-201404

sub31301-BZ161

main31301-BZ161iS402,412..5F201405-202007

main31301-BZ480iS403,413..VAN..5F202007-202503

31301ASPRING(FOR CLUTCH PEDAL)

main9004A-50098iS402,412..5F200801-202007

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main9004A-54003iS403,413..VAN..5F202007-202503

main9004A-54029iS402,412..5F200801-202007

sub90045-40158

31301CBUSH(FOR CLUTCH PEDAL)

main90043-86123iS403,413..VAN..5F200801-202503

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main9004A-38021iS402,412..5F200801-202105

main9004A-38094iS403,413..PIC..5F202106-202503

31321PAD, CLUTCH PEDAL

main31321-BZ090iS402,412..5F200801-202007

main31321-BZ130iS403,413..VAN..5F202007-202503

31324SHAFT, CLUTCH PEDAL

main31324-BZ030iS402,412..5F200801-202007

main88329-BZ030iS403,413..5F202007-202112

main91551-80880iS403,413..PIC..5F202201-202503

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31482-BZ070iS402,412..5F200801-202007

main31482-BZ080iS402,412..5F200801-202007

main31482-BZ250iS403,413..VAN..5F202007-202503

main31482-BZ260iS403,413..VAN..5F202007-202503

31481AHOSE, CLUTCH, NO.1

main31434-B5010iS402,412..5F200801-202007

main31434-B5020iS403,413..PIC..5F202007-202503

31481EGASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main47389-97201iS403,413..VAN..5F200801-202503

31482BHOSE, CLUTCH, NO.2

main9004A-94098iS402,412..5F200801-202211

sub9004A-94159

main9004A-94159iS403,413..PIC..5F202212-202503

31510ORIFICE ASSY, CLUTCH

main31510-B4010iS402..5F200801-200809

main31510-B5040iS403,413..VAN..5F200810-202503

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-BZ070iS402,412..5F200801-202007

main55107-BZ360iS403,413..VAN..5F202007-202503

9004179052

main90041-79052

9004179300

main90041-79300

9004206048

main90042-06048

9004240027

main90042-40027

9004401079

main90044-01079

9004464731

main90044-64731

9004464852

main90044-64852

9004465441

main90044-65441

9004467246

main90044-67246

9004468076

main90044-68076

9004A10168

main9004A-10168

9004A10217

main9004A-10217

9004A46299

main9004A-46299

9004A54029

main9004A-54029

9155180614

main91551-80614

9155180816

main91551-80816

31 parts on this diagram · 2 diagrams in section
