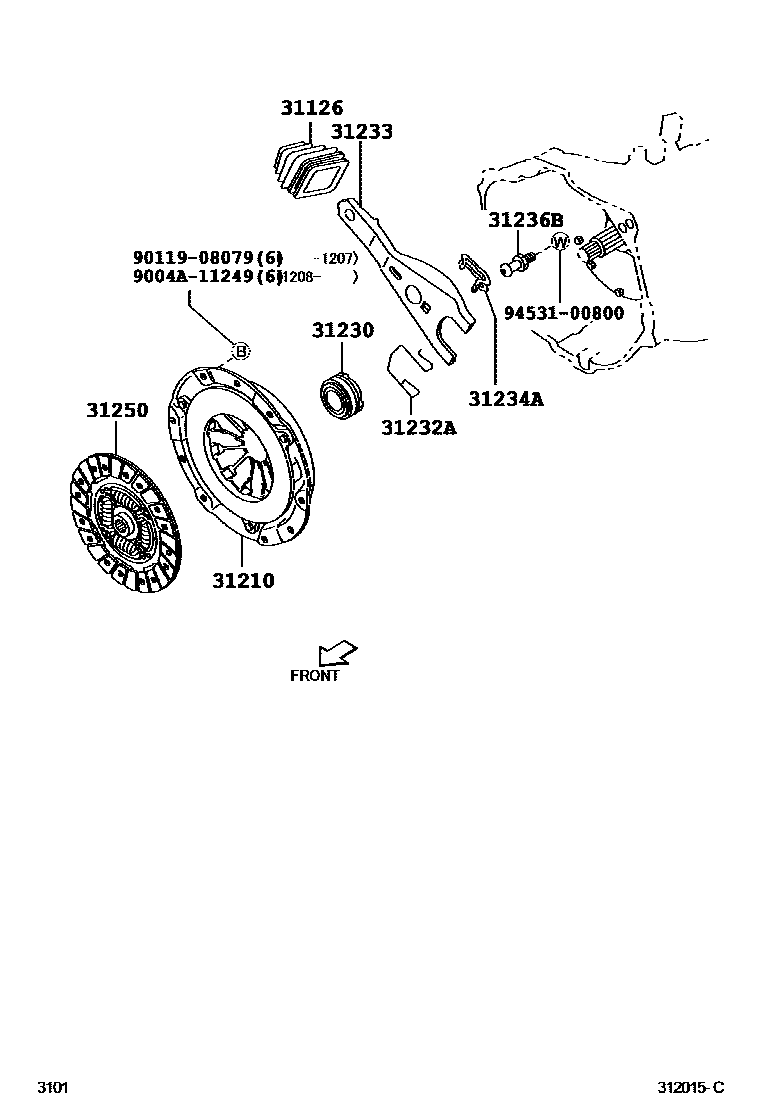

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20070iS413..PIC..5F202007

main31126-BZ010iS402..5F200801-201104

main31126-BZ020iS403..PIC..5F202007

31210COVER ASSY, CLUTCH

main31210-BZ080iS402,412..5F200801-201011

main31210-BZ081iS402,412..5F201011-202007

31230BEARING ASSY, CLUTCH RELEASE

main31230-87507iS412..5F201006-201110

main31230-97502iS412..5F201006-201110

main31230-B4010iS413..VAN..5F202007-202503

main31230-BZ010iS402..5F200801-201103

main31230-BZ060iS403..PIC..5F202007

31232ACLIP, RELEASE BEARING HUB

main31232-87401iS412..5F201006-202007

main31232-BZ020iS402..5F200801-201104

main31232-BZ080iS403..PIC..5F202007

31233FORK, CLUTCH RELEASE

main31233-B5030iS413..PIC..5F202007

main31233-BZ060iS403..PIC..5F202007

31234ASPRING, RELEASE FORK SUPPORT

main31234-87402iS413..PIC..5F202007

main31234-BZ010iS402..5F200801-201104

main31234-BZ030iS402..5F201104-201502

main31234-BZ031iS403..VAN..5F202007-202503

31236BSUPPORT, RELEASE FORK

main31236-87401iS413..VAN..5F202007-202503

main31236-BZ010iS403..PIC..5F202007

31250DISC ASSY, CLUTCH

main31250-BZ170iS402,412..5F200801-201308

main31250-BZ171iS403,413..VAN..5F202007-202503

9004A11249

main9004A-11249

9011908079

main90119-08079

9453100800

main94531-00800

11 parts on this diagram · 1 diagram in section
