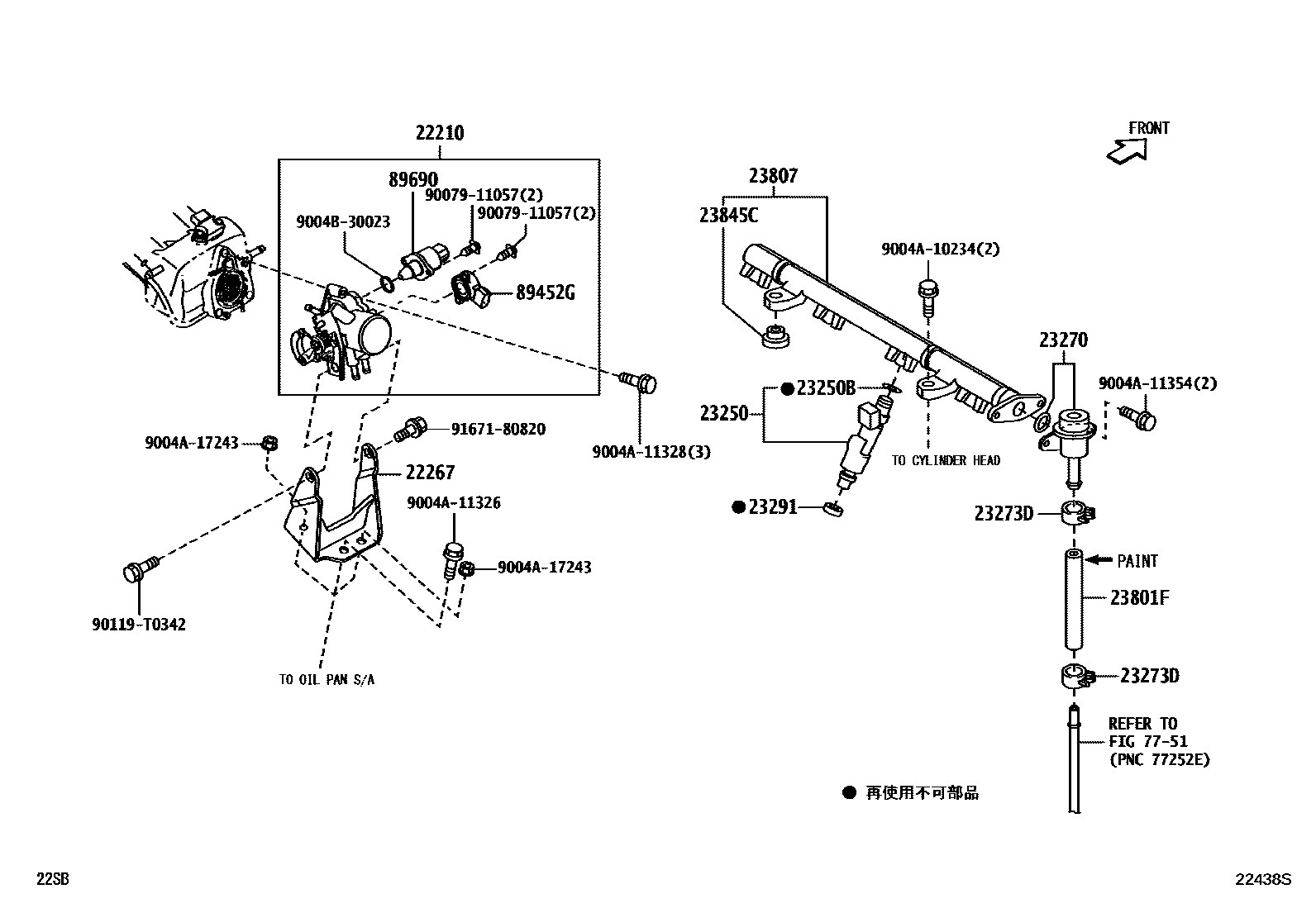

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

22210BODY ASSY, THROTTLE

main22210-BZ110i3SZVE..S402200801-201005

main22210-BZ111i3SZVE..S402,412201006-202007

22267BRACKET, THROTTLE BODY

main22267-BZ060i3SZVE..S402,412200801-202007

23250INJECTOR ASSY, FUEL

main23209-BZ050×4i2NRVE..S403,413..VAN..5F202007-202503

main23250-BZ010×4i3SZVE..S402,412200801-202007

23250BRING, O(FOR FUEL INJECTOR)

main90043-01136×4i3SZVE..S402,412201507-202007

main9004A-30055×4i3SZVE..S402,412201507-202007

main90301-07037×4i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-97501i3SZVE..S402,412200801-202007

23273DCLIP(FOR FUEL HOSE NO.2)

main90044-67234×2i3SZVE..S402,412200801-201603

main9004A-46384×2i3SZVE..S402,412201604-202007

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y020×4i2NRVE..S403,413..VAN..5F202007-202503

main23291-BZ010×4i3SZVE..S402,412200801-202007

23801FHOSE, FUEL, NO.1

main23271-B0030i3SZVE..S402,412200801-201401

main23271-B0040i3SZVE..S402,412201401-202007

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-BZ030i3SZVE..S402,412200801-202007

sub23807-97403

23845CINSULATOR, FUEL PIPE

main23845-BZ010×2i3SZVE..S402,412200801-202007

7751

89452GSENSOR, THROTTLE POSITION

main89452-97401iS402,412201006-202007

89690ACTUATOR ASSY, IDLE SPEED CONTROL

main9004B-82002iS402,412201006-202007

9004A10234

main9004A-10234

9004A11326

main9004A-11326

9004A11328

main9004A-11328

9004A11354

main9004A-11354

9004A17243

main9004A-17243

9004B30023

main9004B-30023

9007911057

main90079-11057

90119T0342

main90119-T0342

9167180820

main91671-80820

22 parts on this diagram · 3 diagrams in section
