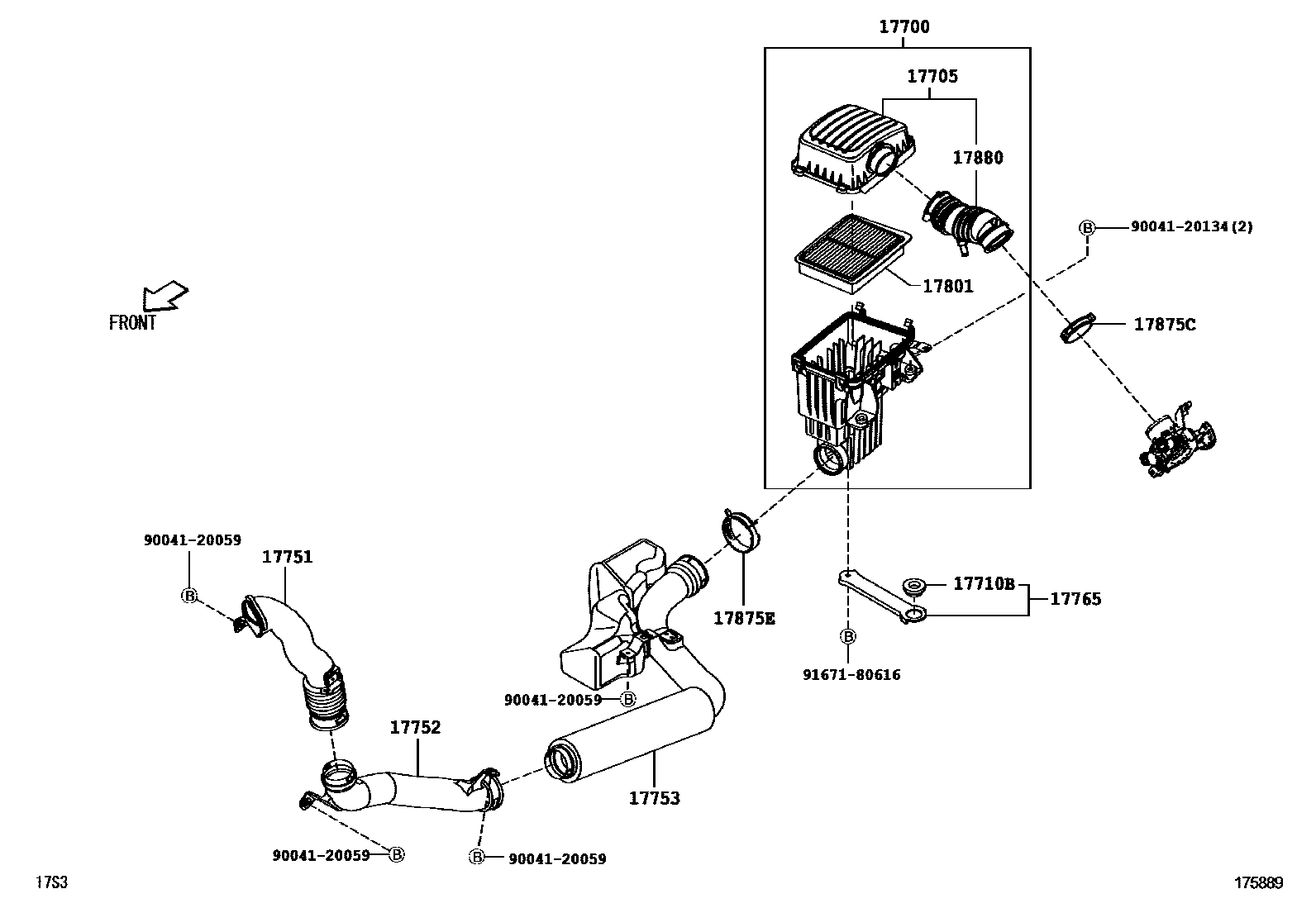

AIR CLEANER

0001 1 0002 1 0003 1

17700CLEANER ASSY, AIR

main17700-BZ110i3SZVE..S402,412200801-201402

sub58257-BZ010

sub9004A-11244

main17700-BZ111i3SZVE..S402,412201402-202007

main17700-BZ250i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

17705CAP SUB-ASSY, AIR CLEANER

main17705-BZ100i3SZVE..S402,412200801-202007

17710BGROMMET

main90044-80421×2i2NRVE..S403,413..VAN..5F202007-202503

main90044-80598i3SZVE..S402,412200801-202007

17751INLET, AIR CLEANER, NO.1

main17751-BZ010i3SZVE..S402200801-200812

main17751-BZ030i3SZVE..S402200812-201005

main17751-BZ050i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

17752INLET, AIR CLEANER, NO.2

main17752-BZ010i3SZVE..S402200801-200812

main17752-BZ030i3SZVE..S402200812-201005

main17752-BZ050i3SZVE..S402,412201006-202007

main17752-BZ070i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

17753INLET, AIR CLEANER, NO.3

main17753-BZ020i3SZVE..S402200801-200812

17765STAY, AIR CLEANER, NO.1

main17765-BZ010i3SZVE..S402,412200801-202007

main17765-BZ070i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-BZ080i3SZVE..S402,412200801-202007

main17801-BZ130i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

17875CCLIP(FOR HOSE, NO.1)

main90044-66035i3SZVE..S402,412200801-202007

17875ECLIP(FOR HOSE, NO.2)

main90044-67476i3SZVE..S402200801-200812

main90466-71001×3i3SZVE..S402,412200812-202007

17880HOSE ASSY, AIR CLEANER

main17880-BZ020i3SZVE..S402,412200801-202007

main17880-BZ200i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

9004120059

main90041-20059

9004120134

main90041-20134

9167180616

main91671-80616

14 parts on this diagram · 3 diagrams in section
