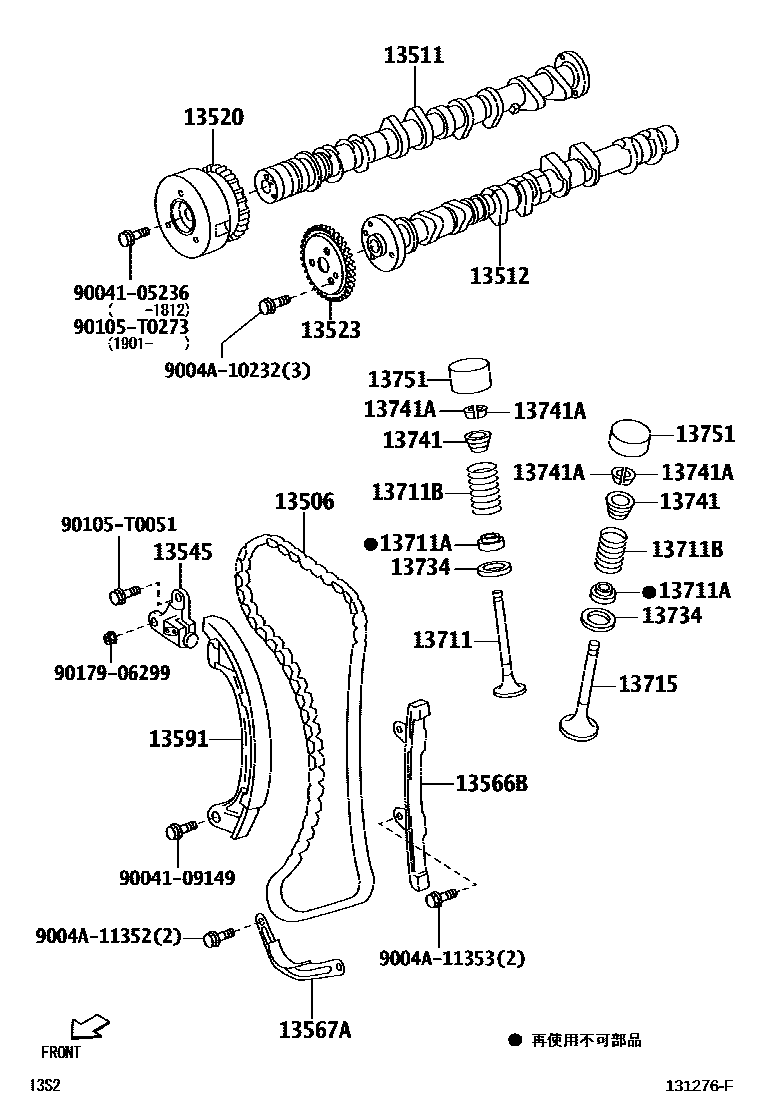

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
13511CAMSHAFT
13512CAMSHAFT, NO.2
13520SPROCKET ASSY, CAMSHAFT TIMING
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13545PLUNGER, CHAIN TENSIONER
13566BGUIDE, TIMING CHAIN
13567AGUIDE, TIMING CHAIN, NO.2
13591ARM, TIMING CHAIN TENSION
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
sub13751-BZ370
sub13751-BZ380
sub13751-BZ390
sub13751-BZ400
sub13751-BZ410
sub13751-BZ420
sub13751-BZ430
sub13751-BZ440
sub13751-BZ460
sub13751-BZ470
sub13751-BZ480
sub13751-BZ500
sub13751-BZ550
sub13751-BZ560
sub13751-BZ570
sub13751-BZ580
sub13751-BZ590
sub13751-BZ600
sub13751-BZ610
sub13751-BZ620
9004105236
9004109149
9004A10232
main9004A-10232
9004A11352
main9004A-11352
9004A11353
main9004A-11353
90105T0051
main90105-T0051
90105T0273
main90105-T0273
9017906299
25 parts on this diagram · 2 diagrams in section
