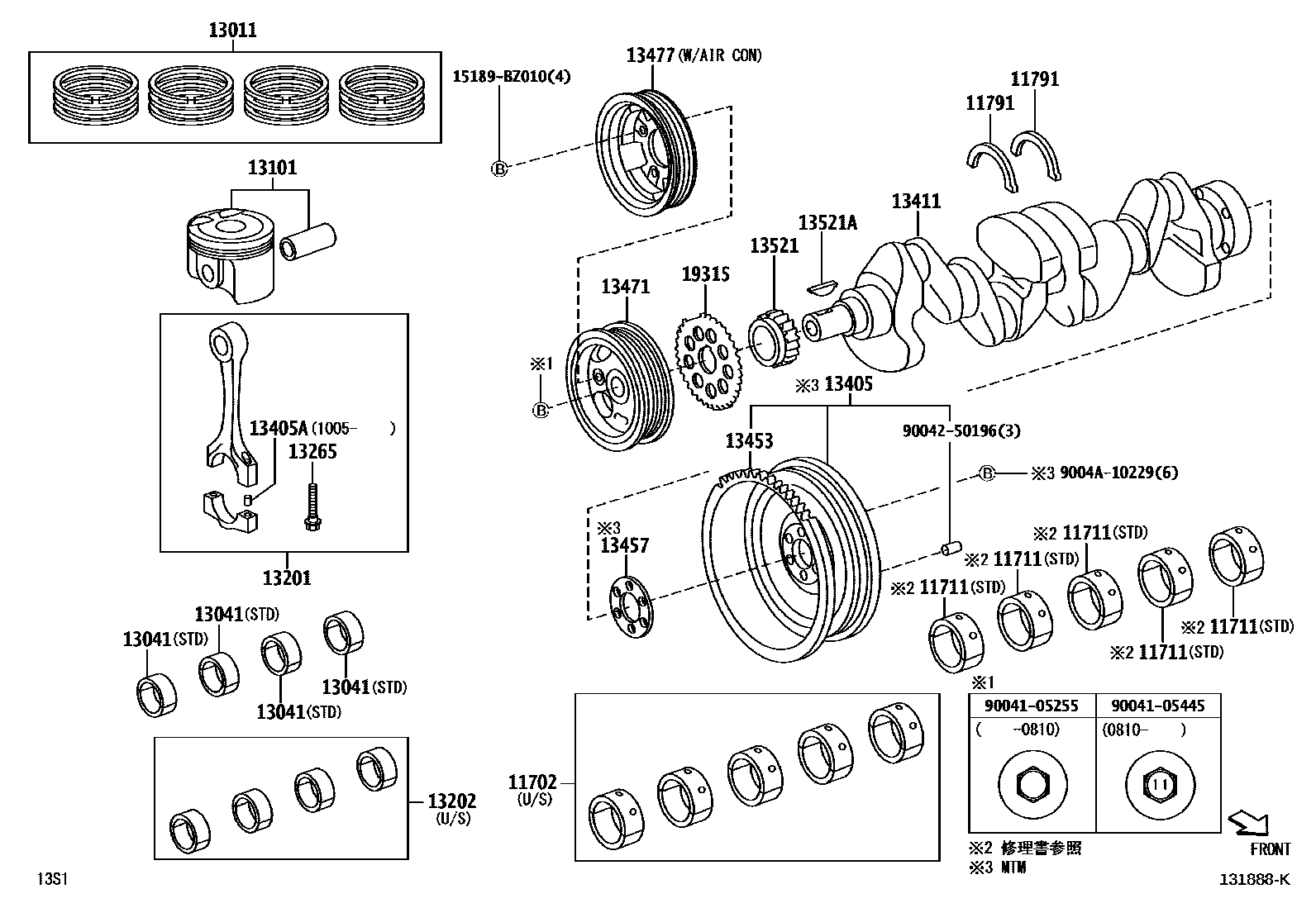

CRANKSHAFT & PISTON

0001 1 0002 1

11702BEARING SET, CRANKSHAFT

main11704-BZ090i3SZVE..S402,412200801-202007

11711BEARING, CRANKSHAFT

main11701-0Y030-02×5i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

main11701-0Y030-03×5i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

main11701-0Y030-04×5i2NRVE..S403,413..VAN..5F202007-202503

main11701-0Y030-05×5i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

main11701-BZ091-02×5i3SZVE..S402,412200801-202007

main11701-BZ091-03×5i3SZVE..S402,412200801-202007

main11701-BZ091-04×5i3SZVE..S402,412200801-202007

main11701-BZ091-05×5i3SZVE..S402,412200801-202007

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-B0010×2i2NRVE..S403,413..VAN..5F202007-202503

main11791-BZ080×2i3SZVE..S402,412200801-202007

sub11791-B1020

main11792-B1020×2i3SZVE..S402,412200801-202007

main11793-B1020×2i3SZVE..S402,412200801-202007

13011RING SET, PISTON

main13011-0Y030i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

main13011-B9010i3SZVE..S402,412201803-202007

main13011-BZ110i3SZVE..S402,412200801-201803

main13013-B1020i3SZVE..S402,412200801-202007

13041BEARING, CONNECTING ROD

main13041-0Y040-01×4i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

main13041-0Y040-02×4i2NRVE..S403,413..VAN..5F202007-202503

main13041-0Y040-03×4i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

main13041-BZ081×4i3SZVE..S402,412200801-201806

sub13041-B1021

main13041-BZ082×4i3SZVE..S402,412201806-202007

13101PISTON SUB-ASSY, W/PIN

main13101-B9010×4i3SZVE..S402,412201803-202007

main13101-BZ100×4i3SZVE..S402,412201210-201803

sub13101-B1021

main13101-BZ170×4i3SZVE..S402,412200801-201210

sub13101-B1021

main13103-B1060×4i3SZVE..S402,412200801-201312

main13103-B1100×4i3SZVE..S402,412201312-202007

13201ROD SUB-ASSY, CONNECTING

main13201-B1021×4i3SZVE..S402,412201005-201804

main13201-B9095×4i2NRVE..S403,413..VAN..5F202007-202503

main13201-BZ060×4i3SZVE..S402,412201005-201804

main13201-BZ061×4i3SZVE..S402,412201806-202007

13202BEARING SET, CONNECTING ROD

main13204-BZ081i3SZVE..S402,412200801-202007

13265BOLT, CONNECTING ROD

main13265-21020×8i2NRVE..S403,413..VAN..5F202007-202503

main13265-97401×8i3SZVE..S402,412200801-202007

13405FLYWHEEL SUB-ASSY

main13405-BZ060i3SZVE..S402,412..5F200801-202007

main13405-BZ170i2NRVE..S403,413..VAN..5F202007-202503

13405APIN, STRAIGHT(FOR FLYWHEEL)

main9004A-25028×8i3SZVE..S402,412201005-201506

13411CRANKSHAFT

main13401-BZ100i2NRVE..S403,413..VAN..5F202007-202503

main13411-B1020i3SZVE..S402,412200801-202007

13453GEAR, FLYWHEEL RING

main13453-87Z03i3SZVE..S402,412..5F200801-202007

main13453-BZ110i2NRVE..S403,413..VAN..5F202007-202503

13457RING, FLYWHEEL SPACER

main13457-97401i3SZVE..S402,412..5F200801-202007

13471PULLEY, CRANKSHAFT

main13470-BZ040i3SZVE..S402,412200801-201012

main13470-BZ041i3SZVE..S402,412201012-202007

main13470-BZ100i2NRVE..S403,413..PIC;2NRVE..S403,413..VAN..4FC202007

13477PULLEY, CRANKSHAFT, NO.2

main88451-BZ040i3SZVE..S402,412200801-202007

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0Y040i2NRVE..S403,413..VAN..5F202007-202503

main13521-23030i3SZVE..S402200801-200810

sub13521-23040

sub90105-12382

main13521-B1020i3SZVE..S402,412200810-202007

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90042-80034i3SZVE..S402,412200801-202007

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-B0010i3SZVE..S402200801-200906

main19315-BZ010i3SZVE..S402,412200906-202007

15189BZ010

main15189-BZ010

9004105255

main90041-05255

9004105445

main90041-05445

9004250196

main90042-50196

9004A10229

main9004A-10229

24 parts on this diagram · 2 diagrams in section
