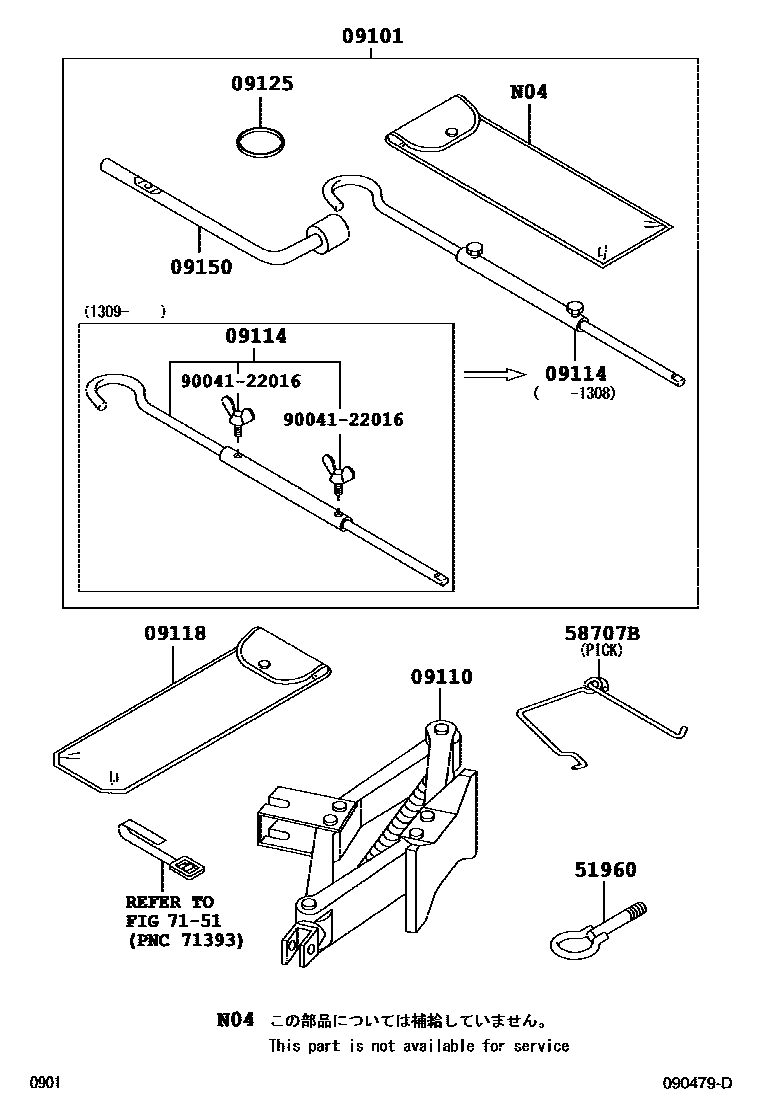

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-BZ120iS402,412¥3,710200801-201308

sub09101-BZ121¥3,920

main09101-BZ121iS403,413..VAN..5F¥3,920201309-202503

09110JACK ASSY

main09111-BZ150iS402,412¥6,100200801-201008

sub09111-BZ151¥6,400

main09111-BZ151iS402,412¥6,400201009-202007

sub09111-BZ152¥7,100

main09111-BZ260iS403,413..PIC;S403,413..VAN..4FC¥8,500202007-202503

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-BZ040iS402,412¥1,720200801-201308

main09114-BZ041iS403,413..PIC;S403,413..VAN..4FC¥1,720201309-202503

09118COVER, JACK

main09118-BZ010iS402,412¥810200801-202007

main09118-BZ020iS403,413..VAN..5F¥810202007-202503

09125BAND, TOOL BAG

main09125-BZ010iS403,413..PIC;S403,413..VAN..4FC¥210200801-202503

09150WRENCH, HUB NUT BOX

main09150-87Z01iS402,412¥1,450200801-201305

sub09150-BZ040¥1,380

main09150-BZ040iS402,412¥1,380201306-202503

51960HOOK ASSY, FRONT

main51960-BZ010iS403,413..VAN..4FC¥1,830202007-202503

main51960-BZ070iS402,412..PIC¥1,830200801-202007

58707BHOLDER SUB-ASSY, JACK

main58792-BZ020iS403,413..PIC¥700200801-202007

7151

9004122016

main90041-22016¥110

10 parts on this diagram · 1 diagram in section
