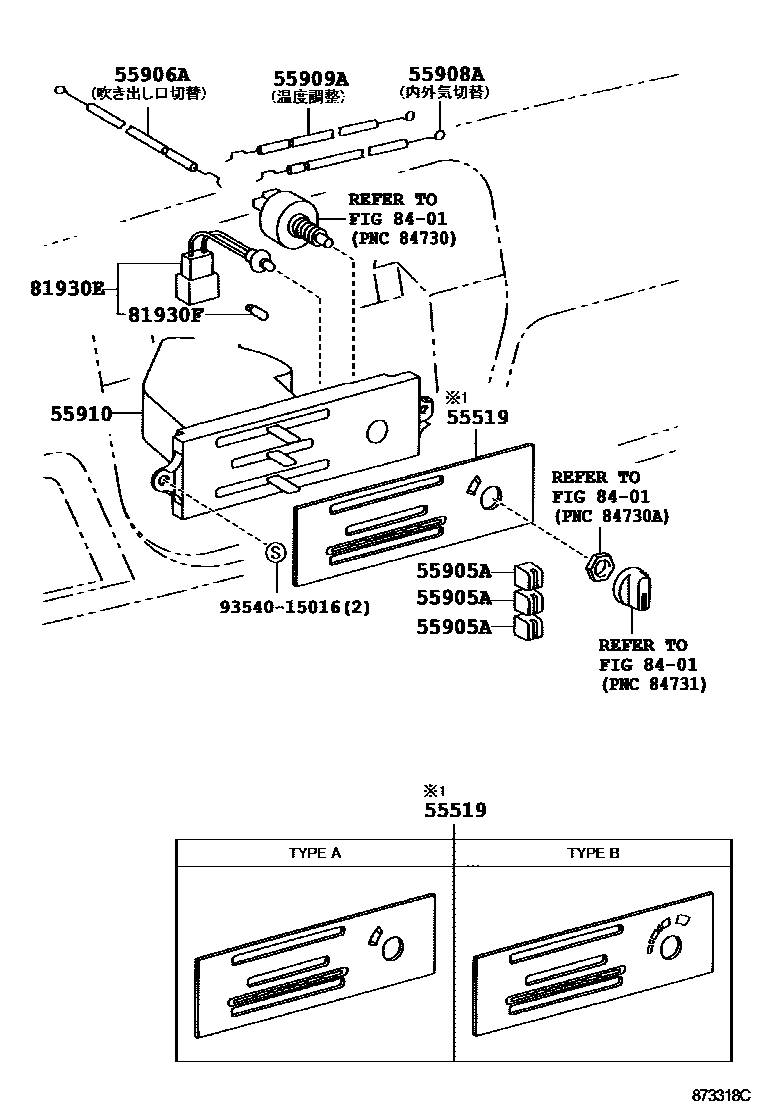

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1����-� 0002 1������

55519PLATE, HEATER CONTROL NAME

main55519-27010iKM7#,80;KM85..5H199906-200408

main55519-27020iKM85..4HC199906-200408

55905AKNOB, HEATER CONTROL

main55905-10110iCM7#,8#,KM7#,8#199906-200408

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-27011iCM7#,8#,KM7#,8#199906-200708

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-27011iCM7#,8#,KM7#,8#199906-200708

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-27021iCM7#,8#,KM7#,8#199906-200708

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-27010iCM7#,8#,KM7#,8#199906-200408

81930ELAMP ASSY, HEATER CONTROL INDICATOR

main81930-95700iCM7#,8#,KM7#,8#199906-200408

81930FBULB, HEATER CONTROL INDICATOR LAMP

main90981-11014iCM7#,8#,KM7#,8#199906-200408

8401

9354015016

main93540-15016

10 parts on this diagram · 2 diagrams in section
