WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-27010iCM7#,8#,KM7#,8#199906-200408

main85110-27020iCM7#,8#,KM7#,8#199906-200408

85160LINK ASSY, WINDSHIELD WIPER

main85160-95707iCM7#,8#,KM7#,8#199906-200408

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95700iCM7#,8#,KM7#,8#199906-200408

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85179-95701iCM7#,8#,KM7#,8#199906-200408

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08209iCM7#,8#,KM7#,8#199906-200408

85211BARM, FRONT WIPER, RH

main85211-27010iCM7#,8#,KM7#,8#199906-200408

85212ABLADE, FR WIPER, RH

main85212-27010iCM7#,8#,KM7#,8#199906-200408

85214ARUBBER, WIPER, RH

main85214-33110iCM7#,8#,KM7#,8#199906-200208

sub85214-22410

main85214-48010iKM7#,8#200208-200708

85214BRUBBER, WIPER, LH

main85214-44080iCM7#,8#,KM7#,8#199906-200411

main85214-68010iKM7#,8#200412-200510

sub85214-68011

main85214-68011iKM7#,8#200511

85221BARM, FRONT WIPER, LH

main85221-27010iCM7#,8#199906-200408

85222ABLADE, FR WIPER, LH

main85222-27010iCM7#,8#,KM7#,8#199906-200208

sub85222-52020

main85222-27011iKM7#,8#200511

main85222-52020iCM7#,8#,KM7#,8#200208-200510

sub85222-52140

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33040iCM7#,8#,KM7#,8#199906-200208

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33040iCM7#,8#,KM7#,8#199906-200208

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-44031iCM7#,8#,KM7#,8#199906-200208

sub85224-44070

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-44031iCM7#,8#,KM7#,8#199906-200208

sub85224-44070

85230BRACKET ASSY, WINDSHIELD WIPER

main85230-27010iKM7#,8#199906-200408

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-22090iKM7#,8#200208-200408

main85291-50030iCM7#,8#,KM7#,8#199906-200208

sub85291-22090

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-28120iCM7#,8#200208-200408

main85291-60030iCM7#,8#,KM7#,8#199906-200208

sub85291-28120

9011908063

main90119-08063

91621B0816

main91621-B0816

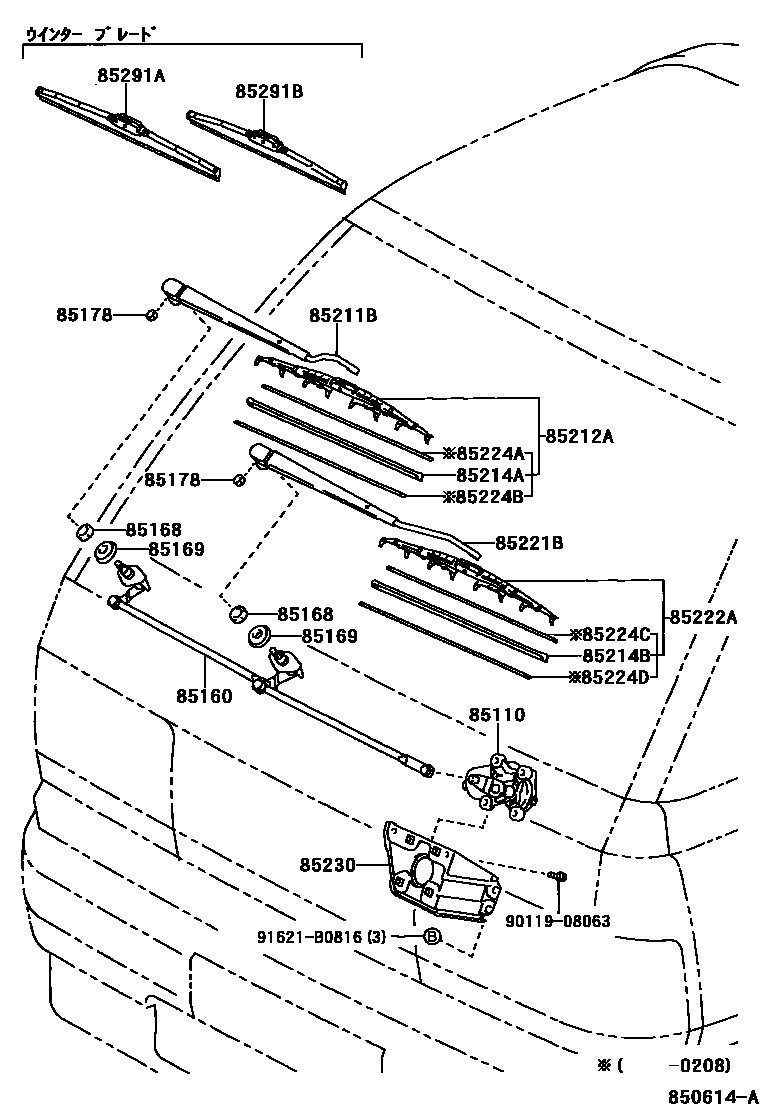

20 parts on this diagram · 1 diagram in section
