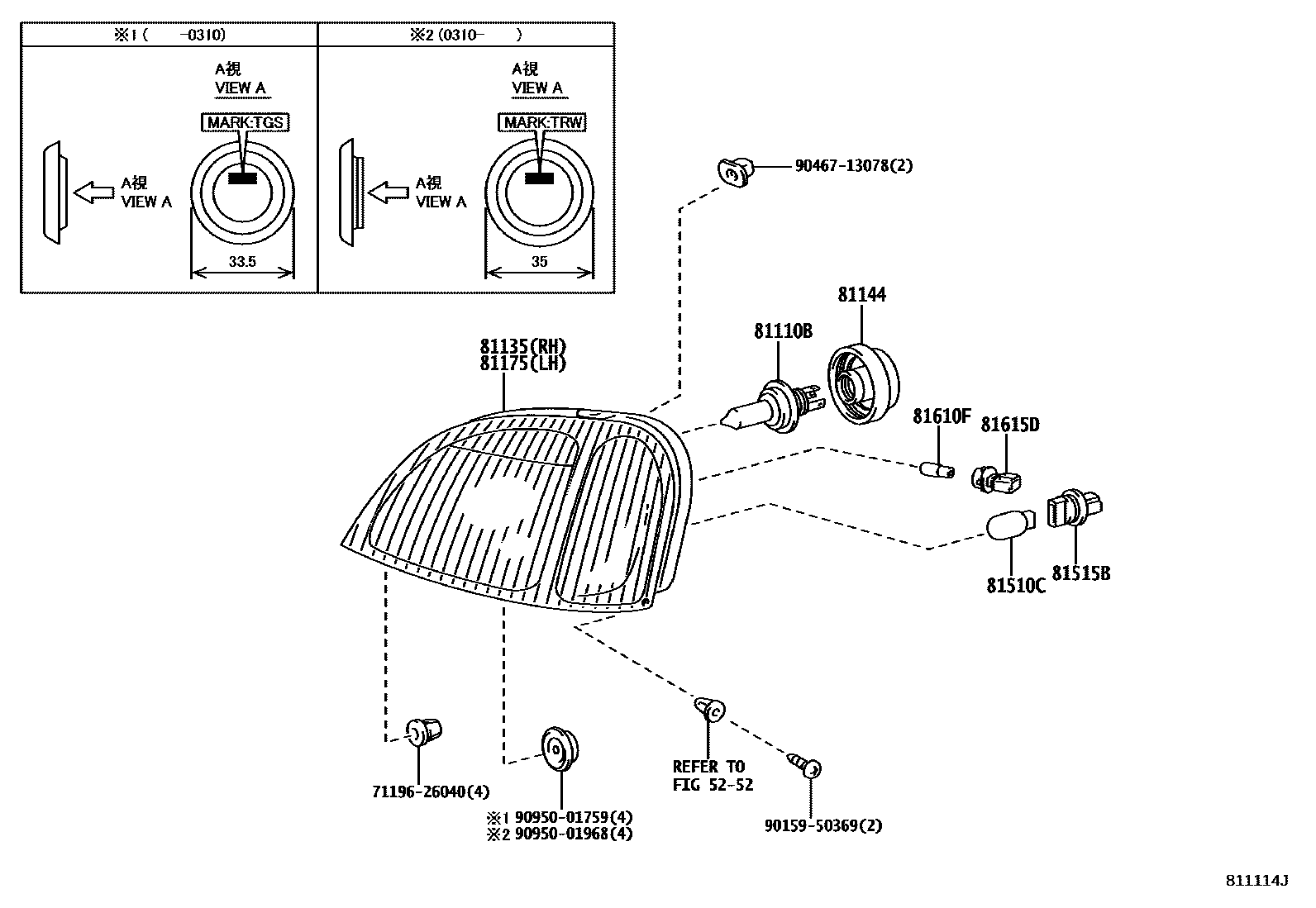

HEADLAMP

0001 1 0002 1

5252

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iCM7#,8#,KM7#,8#200208-200708

main90981-22004iCM7#,8#,KM7#,8#199906-200208

sub90981-13055

81135UNIT ASSY, HEADLAMP, RH

main81130-27080iCM7#,8#,KM7#,8#199906-200408

main81130-27090iKM7#,8#200408

81144COVER, HEADLAMP, NO.1

main90075-65002iCM7#,8#,KM7#,8#199906-200408

81175UNIT ASSY, HEADLAMP, LH

main81170-27080iCM7#,8#,KM7#,8#199906-200408

main81170-27090iKM7#,8#200408

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043iCM7#,8#,KM7#,8#199906-200408

main90981-15011iKM7#,8#200408

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iKM7#,8#200408

main90075-99080iCM7#,8#,KM7#,8#199906-200408

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iKM7#,8#199906-200408

81615DSOCKET, CLEARANCE LAMP

main99159-10228iCM7#,8#,KM7#,8#199906-200408

7119626040CLIP(FOR REAR SPOILER)

main71196-26040

9015950369

main90159-50369

9046713078

main90467-13078

9095001759

main90950-01759

9095001968

main90950-01968

14 parts on this diagram · 2 diagrams in section
