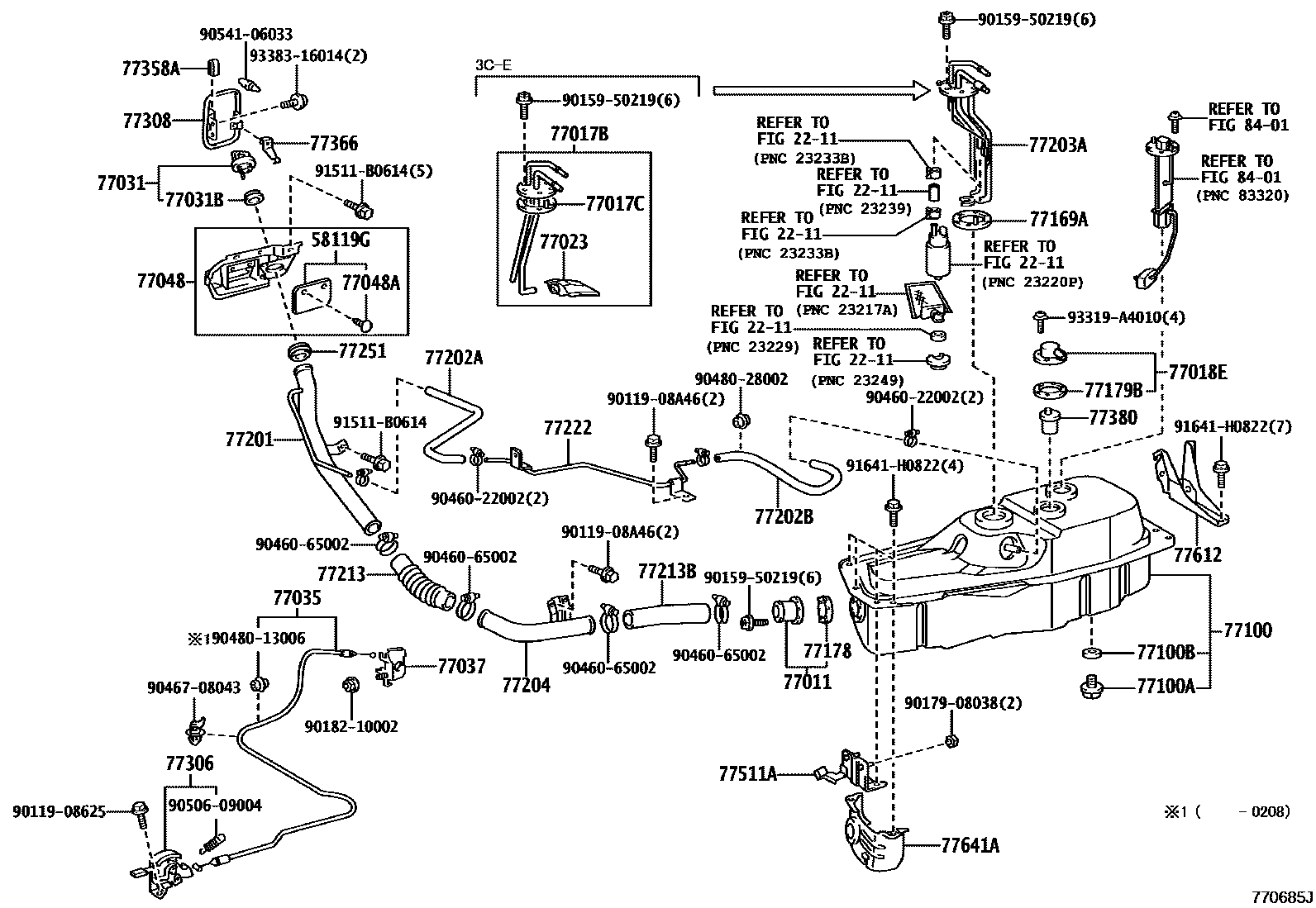

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ����� 0003 1����� ����� 0004 1����� �����

2211

58119GCOVER, REAR FLOOR SIDE, FRONT

main58119-95700iCM7#,8#,KM7#,8#199906-200408

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-27020iCM7#,8#,KM7#,8#199906-200408

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-27250iCM7#,8#199906-200408

77017CGASKET, FUEL TANK VENT

main77169-32010iCM7#,8#199906-200408

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-27110iCM7#,8#199906-200408

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-32040iCM7#,8#199906-200408

77031CAP ASSY, FUEL TANK

main77310-12100iKM7#,8#199906-200208

main77310-35061iCM7#,8#199906-200408

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iCM7#,8#,KM7#,8#199906-200408

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-27030iCM7#,8#,KM7#,8#199906-200208

main77035-27050iCM7#,8#200208-200408

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-95700iCM7#,8#,KM7#,8#199906-200408

77048SEAL SUB-ASSY, FUEL INLET PIPE, UPPER

main77048-95701iCM7#,8#,KM7#,8#199906-200408

77048ACLIP (FOR FUEL INLET PIPE SEAL)

main90467-05014-01iCM7#,8#,KM7#,8#199906-200208

BLACK,TRIM1#

sub90467-05014

main90467-05014-A0iKM85..5H;CM7#,8#,KM7#,80200208-200708

IVORY,TRIM1#

sub90467-05014

main90467-05014-A0iKM85..4HC200502-200708

IVORY

sub90467-05014

77100TANK ASSY, FUEL

main77001-27450iCM7#,8#,KM7#,8#199906-200511

sub77001-27451

main77001-27451iKM7#,8#200512

77100APLUG(FOR FUEL TANK)

main90105-12116iCM7#,8#,KM7#,8#199906-200511

77100BGASKET(FOR FUEL TANK)

main90430-12245iCM7#,8#,KM7#,8#199906-200511

77169AGASKET, FUEL SUCTION TUBE SET

main77169-32010iKM7#,8#199906-200208

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20010iCM7#,8#,KM7#,8#199906-200408

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-26010iCM7#,8#199906-200408

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-27170iCM7#,8#,KM7#,8#199906-200205

sub77201-27171

main77201-27171iCM7#,8#,KM7#,8#200205-200408

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main90445-22002iCM7#,8#,KM7#,8#199906-200208

main95312-13020iKM7#,8#200208

sub95313-13020

main95313-13020iCM7#,8#200208-200408

77202BHOSE, FUEL, NO.2 (FOR BREATHER TUBE)

main77259-27250iCM7#,8#,KM7#,8#199906-200408

main77259-27260iKM7#,8#200208

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-27210iKM7#,8#199906-200208

77204PIPE SUB-ASSY, FUEL TANK FILLER, CENTER

main77204-27020iCM7#,8#,KM7#,8#199906-200208

sub77204-27021

main77204-27021iCM7#,8#200208-200408

77213HOSE, FUEL TANK SUB INLET

main77213-12131iCM7#,8#,KM7#,8#199906-200208

sub77213-27160

main77213-27160iCM7#,8#200208-200408

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-27050iCM7#,8#,KM7#,8#199906-200208

sub77213-27150

main77213-27150iCM7#,8#200208-200408

77222TUBE, FUEL TANK BREATHER, NO.2

main77013-27090iCM7#,8#,KM7#,8#199906-200408

77251SHIELD, FUEL TANK, INLET, NO.1

main77251-10010iCM7#,8#,KM7#,8#199906-200408

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-27010iCM7#,8#,KM7#,8#199906-200408

77308COVER SUB-ASSY, FUEL INLET BOX

main77305-95701iCM7#,8#,KM7#,8#199906-200408

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-87001iCM7#,8#,KM7#,8#199906-200408

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-95702iCM7#,8#,KM7#,8#199906-200408

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iCM7#,8#,KM7#,8#199906-200408

77511ABRACKET, FUEL TANK

main77511-27090iCM7#,8#,KM7#,8#199906-200408

77612BRACKET SUB-ASSY, FUEL TANK

main77512-27040iCM7#,8#199906-200408

77641APROTECTOR, FUEL TANK, NO.1

main77641-27030iCM7#,8#,KM7#,8#199906-200408

8401

9011908625

main90119-08625

9011908A46

main90119-08A46

9015950219

main90159-50219

9017908038

main90179-08038

9018210002

main90182-10002

9046022002

main90460-22002

9046065002

main90460-65002

9046708043

main90467-08043

9048013006

main90480-13006

9048028002

main90480-28002

9050609004

main90506-09004

9054106033

main90541-06033

91511B0614

main91511-B0614

91641H0822

main91641-H0822

93319A4010

main93319-A4010

9338316014

main93383-16014

53 parts on this diagram · 4 diagrams in section
