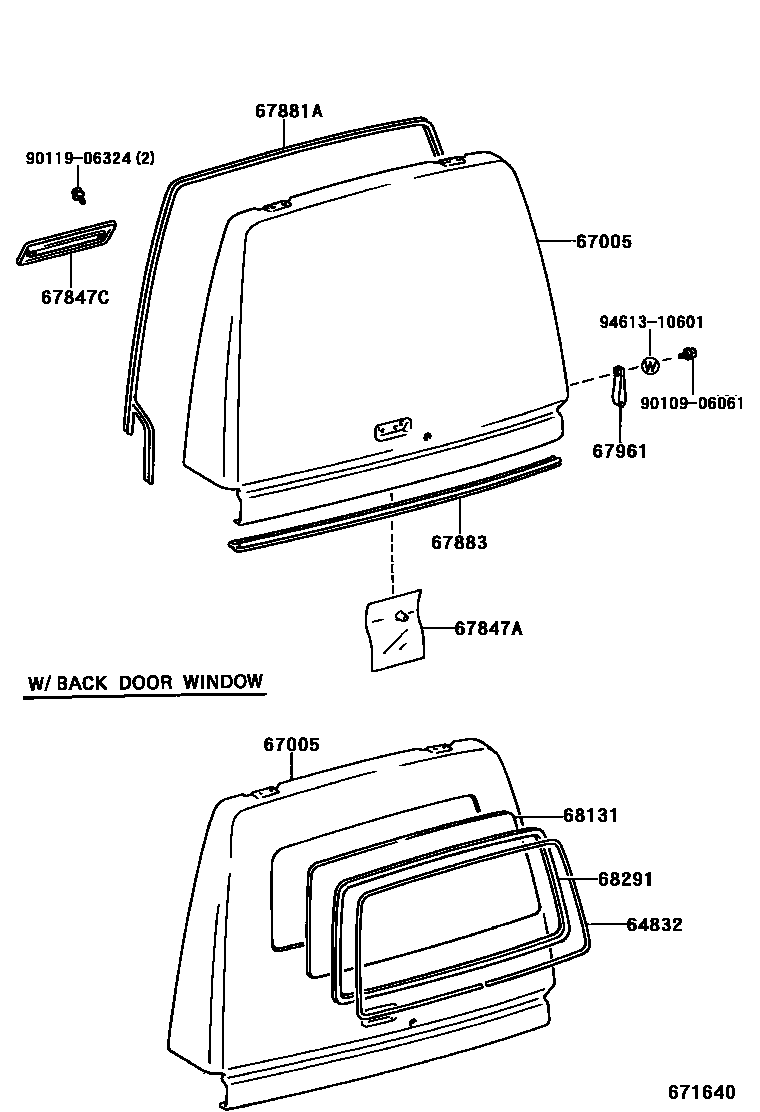

BACK DOOR PANEL & GLASS

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95701iCM80,KM70..GUT199906-200208

67005PANEL SUB-ASSY, BACK DOOR

main67005-95G26iCM80,KM70..GUT199906-200208

main67005-95G27iCM80,KM70..GUT199906-200208

67847ACOVER, BACK DOOR SERVICE HOLE

main67831-95705iCM80,KM70..GUT199906-200208

67847CCOVER, BACK DOOR SERVICE HOLE, NO.1

main65759-95700iCM80,KM70..GUT199906-200208

67881AWEATHERSTRIP, BACK DOOR

main67881-95706iCM80,KM70..GUT199906-200208

67883WEATHERSTRIP, BACK DOOR, CENTER

main67884-95700iCM80,KM70..GUT199906-200208

67961STRAP, BACK DOOR PULL

main67961-95701iCM80,KM70..GUT199906-200208

68131GLASS, BACK DOOR

main68131-95723iCM80,KM70..GUT199906-200208

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-95712iCM80,KM70..GUT199906-200208

9010906061

main90109-06061

9011906324

main90119-06324

9461310601

main94613-10601

12 parts on this diagram · 1 diagram in section
