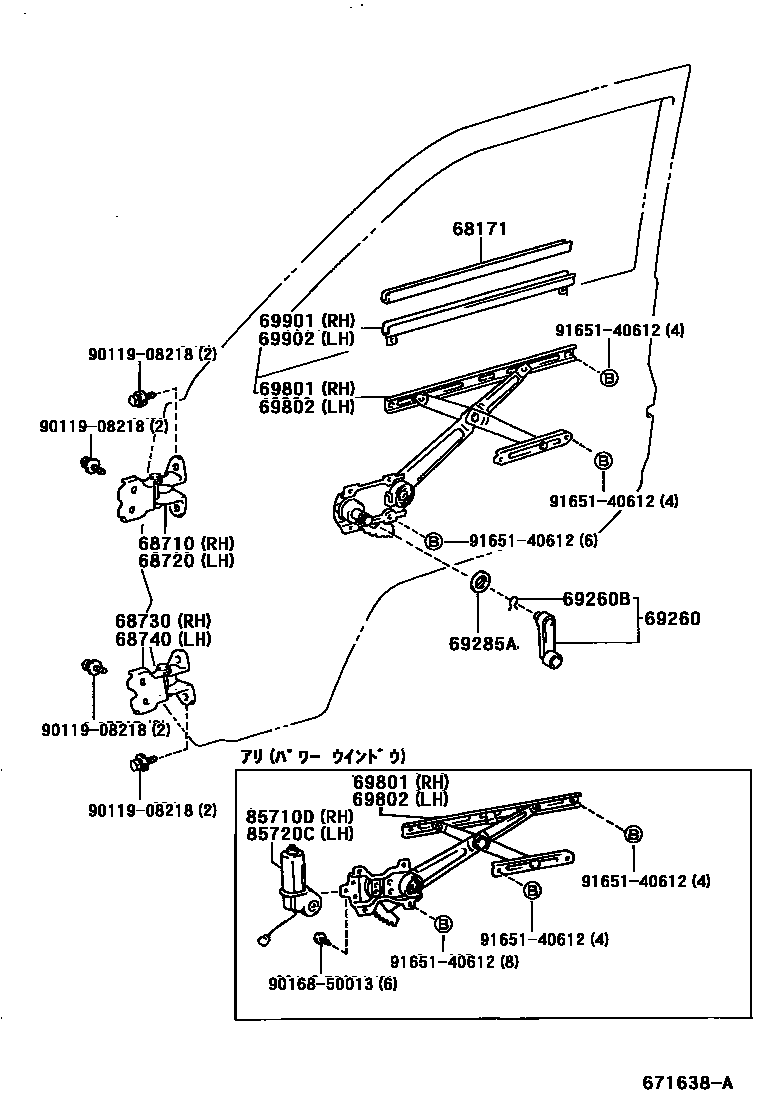

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main69971-22010iKM7#,8#199906-200408

sub69971-95110

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-27010iCM7#,8#,KM7#,8#199906-200708

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-27010iCM7#,8#,KM7#,8#199906-200708

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-27010iCM7#,8#,KM7#,8#199906-200708

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-27010iCM7#,8#,KM7#,8#199906-200708

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-20090-B4iCM7#,8#,KM7#,8#..CBU,IV3199906-200708

DK.CHARCOAL,TRIM1#

sub69260-20090

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iCM7#,8#,KM7#,8#..DX199906-200408

69285APLATE, DOOR VENT WINDOW CONTROL HANDLE

main69285-22010iCM7#,8#,KM7#,8#..DX199906-200408

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-95701iCM7#,8#,KM7#,8#199906-200408

main69810-95705iCM7#,8#..CBU,IV3199906-200408

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-95701iKM7#,80;KM85..5H199906-200408

main69820-95705iCM7#,8#..CBU,IV3199906-200408

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-87002iKM7#,8#199906-200408

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-87002iCM7#,8#,KM7#,8#199906-200408

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-27010iCM7#,8#,KM7#,8#199906-200408

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-28080iCM7#,8#,KM7#,8#199906-200408

9011908218

main90119-08218

9016850013

main90168-50013

9165140612

main91651-40612

17 parts on this diagram · 1 diagram in section
