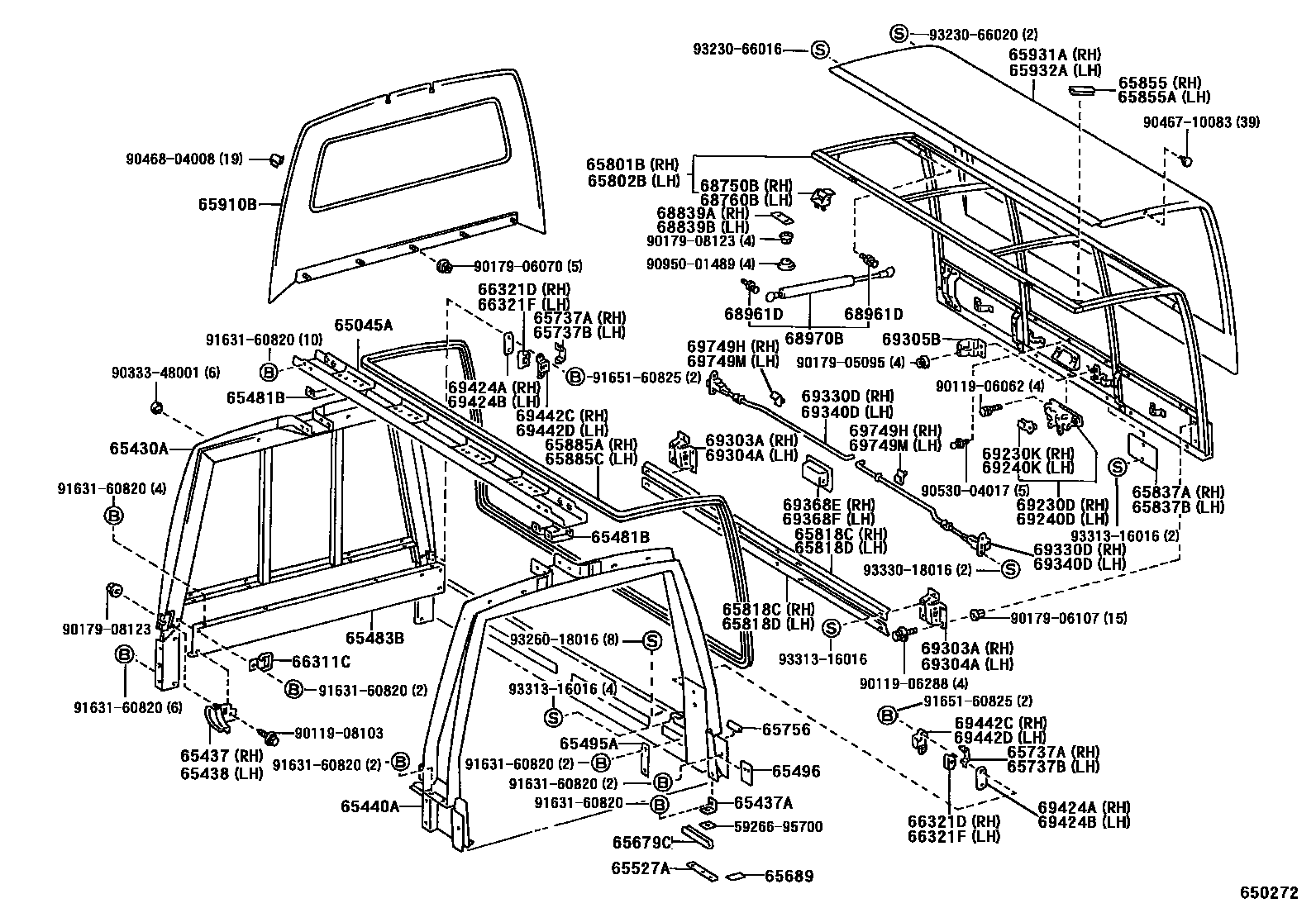

GULL TOP
65045AFRAME SUB-ASSY, TOP & TARPAULIN SUPPORT, CENTER
65430AFRAME ASSY, TOP & CURTAIN SUPPORT, FRONT
65437BRACKET, TOP & CURTAIN FRAME, FRONT RH
65437ASUPPORT, REAR BODY GUARD FRAME
65438BRACKET, TOP & CURTAIN FRAME, FRONT LH
65440AFRAME ASSY, TOP & CURTAIN SUPPORT, REAR
65481BPROTECTOR, FRONT CORNER
65483BRAIL, HEADER BOARD, UPPER
65495ASEAL, REAR BODY GUARD FRAME, NO.3
65496SEAL, REAR BODY GUARD FRAME, NO.4
65527APROTECTOR, TOP RAIL SIDE
65679CPROTECTOR, SIDE GATE
65689SEAL, SIDE GATE
65737ASTOP, SIDE TARPAULIN
65737BSTOP, SIDE TARPAULIN, LH
65756SEAL, TAIL GATE
65801BFRAME SUB-ASSY, SIDE TARPAULIN, RH
65802BFRAME SUB-ASSY, SIDE TARPAULIN, LH
65818CRAIL, SIDE TARPAULIN
65818DRAIL, SIDE TARPAULIN, LH
65837APLATE, TOP BOW
65837BPLATE, TOP BOW, LH
65855PROTECTOR, CENTER TOP TARPAULIN BOW
65855APROTECTOR, CENTER TOP TARPAULIN BOW, LH
65885AWEATHERSTRIP, SIDE TARPAULIN
65885CWEATHERSTRIP, SIDE TARPAULIN, LH
65910BTARPAULIN ASSY
65931ATARPAULIN, SIDE COVER, RH
65932ATARPAULIN, SIDE COVER, LH
66311CHOOK, ROPE
66321DBUMPER, SIDE TARPAULIN RUBBER
66321FBUMPER, SIDE TARPAULIN RUBBER, LH
68750BHINGE ASSY, TARPAULIN
68760BHINGE ASSY, TARPAULIN, LH
68839APAD, TARPAULIN HINGE
68839BPAD, TARPAULIN HINGE, LH
68961DBOLT, SIDE TARPAULIN STAY
68970BSTAY ASSY, SIDE TARPAULIN DAMPER
69230DHANDLE ASSY, SIDE COVER TARPAULIN
69230KSNAP, SIDE COVER TARPAULIN
69240DHANDLE, SIDE COVER TARPAULIN, LH
69240KSNAP, SIDE COVER TARPAULIN, LH
69303ACOVER SUB-ASSY, SIDE TARPAULIN LOCK, RH
69304ACOVER SUB-ASSY, SIDE TARPAULIN LOCK, LH
69305BBRACKET SUB-ASSY, SIDE COVER TARPAULIN LOCK CONTROL
69330DLOCK ASSY, TARPAULIN, RH
69340DLOCK ASSY, TARPAULIN, LH
69368ECASE, SIDE TARPAULIN HANDLE, RH
69368FCASE, SIDE TARPAULIN HANDLE, LH
69424APLATE, SIDE TARPAULIN LOCK STRIKER
69424BPLATE, SIDE TARPAULIN LOCK STRIKER, LH
69442CSTRIKER, TARPAULIN LOCK
69442DSTRIKER, TARPAULIN LOCK, LH
69749HCLAMP, SIDE TARPAULIN LOCK LINK
69749MCLAMP, SIDE TARPAULIN LOCK LINK, LH
5926695700SEAL, ENGINE SERVICE COVER, NO.2
main59266-95700
9011906062
main90119-06062
9011906288
main90119-06288
9011908103
main90119-08103
9017905095
main90179-05095
9017906070
main90179-06070
9017906107
main90179-06107
9017908123
main90179-08123
9033348001
main90333-48001
9046710083
main90467-10083
9046804008
main90468-04008
9053004017
main90530-04017
9095001489
main90950-01489
9163160820
main91631-60820
9165160825
main91651-60825
9323066016
main93230-66016
9323066020
main93230-66020
9326018016
main93260-18016
9331316016
main93313-16016
9333018016
main93330-18016
75 parts on this diagram · 1 diagram in section
