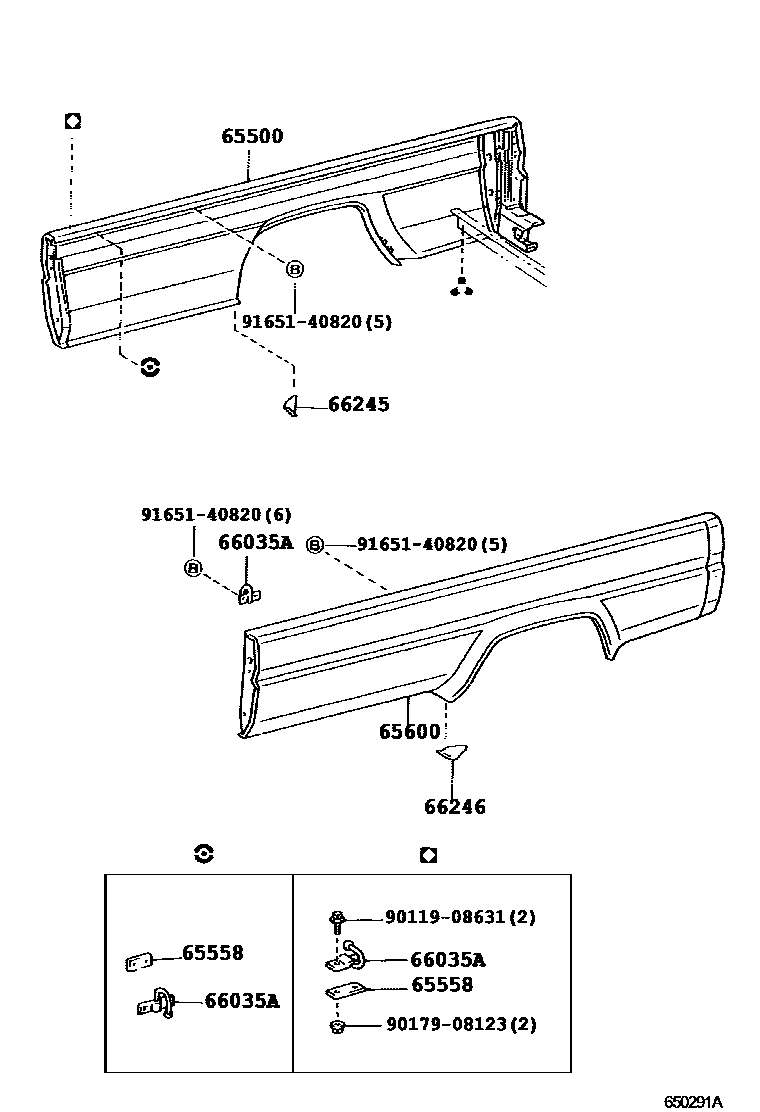

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1 0004 1 0005 1���-���

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-27010iCM70..CBU;CM80,KM70,80..JL;CM70..JL..5H..IV3;KM70..SJL..3SO..CBU199906-200708

main65500-27020iCM75,85,KM75,85..(JL,SJL)..CBU199906-200708

main65500-27030iCM75,KM75..SJLC199906-200208

main65500-27040iKM70..TS..3SO..5H..CBU;CM70,80,KM80..TS..3SO..CBU199906-200708

main65500-27050iCM85..TS..CBU199906-200208

main65500-27051iCM85..TS..CBU;CM75,KM75..CBU;KM85..4HC..CBU200208-200708

main65500-95705iKM70,80..T1199906-200208

main65500-95706iKM70,80..T1199906-200208

main65500-95708iKM70..GUT199906-200208

main65500-95709iKM70..SJL..TS..1SO199906-200708

main65500-95710iKM70..SJL..TS..1SO199906-200708

main65500-95711iCM80..GUT199906-200208

65558SPACER, ROPE HOOK

main65558-95701iKM70,80..1SO199906-200208

main65558-95702iKM70..SJL..TS..1SO..5H..DX200208-200208

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-27010iCM70..CBU;CM80,KM70,80..JL;CM70..JL..5H..IV3;KM70..SJL..3SO..CBU199906-200708

main65600-27020iCM75,85,KM75,85..(JL,SJL)..CBU199906-200708

main65600-27030iCM75,KM75..SJLC199906-200208

main65600-27040iCM70,80,KM70,80..TS..3SO..CBU199906-200708

main65600-27050iCM85..TS..CBU199906-200208

main65600-27051iCM85..TS..CBU;CM75,KM75..CBU;KM85..4HC..CBU200208-200708

main65600-95705iKM70,80..T1199906-200208

main65600-95706iKM70,80..T1199906-200208

main65600-95708iKM70..GUT199906-200208

main65600-95709iKM70..1SO199906-200708

main65600-95710iKM70..1SO199906-200708

main65600-95711iCM80..GUT199906-200208

66035AROPE HOOK SET

main66035-95702iKM70..1SO200208-200708

main66035-95703iKM70..1SO200208-200708

main66035-95705iKM70..1SO200208-200708

main66301-95700iKM70,80..1SO199906-200208

main66301-95700iKM70..1SO200208-200708

66245PROTECTOR, REAR BODY, NO.3 RH

main66245-95701iKM70..1SO..4HC199906-200208

66246PROTECTOR, REAR BODY, NO.3 LH

main66246-95701iKM70..1SO;KM70..GUT;CM80,KM80..T1199906-200208

9011908631

main90119-08631

9017908123

main90179-08123

9165140820

main91651-40820

9 parts on this diagram · 5 diagrams in section
