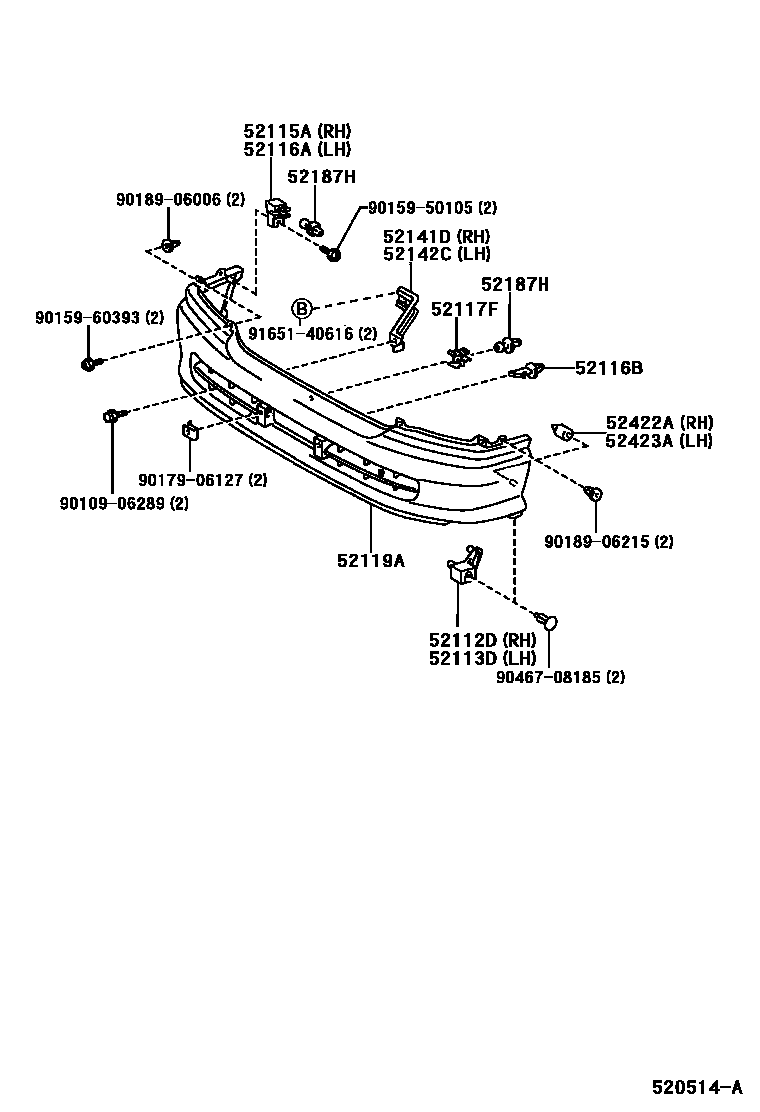

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52112DEXTENSION, FRONT BUMPER, RH

main52112-27010iCM7#,8#,KM7#,8#199906-200208

52113DEXTENSION, FRONT BUMPER, LH

main52113-27010iCM7#,8#,KM7#,8#199906-200208

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-27010iCM7#,8#,KM7#,8#199906-200208

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-27010iCM7#,8#,KM7#,8#199906-200208

52116BRETAINER, FRONT BUMPER

main52116-27010iCM7#,8#,KM7#,8#199906-200208

52117FSUPPORT, FRONT BUMPER, UPPER

main52117-27010iCM7#,8#,KM7#,8#199906-200208

52119ACOVER, FRONT BUMPER

main52119-27050iCM7#,8#,KM7#,8#200208-200708

sub52119-27051

main52119-27060-B0iKM70,80..1SO..DX199906-200208

main52119-27070-A0iKM85..IV3;CM75,85,KM75..4HC..IV3200106-200208

WHITE,058

sub52119-27901

main52119-27070-B0iKM70,80..SPX199906-200208

SILVER ME,199 ,2FE

sub52119-27901

main52119-27080-A0iCM75,85..IV6;KM75,8#..TS..(CBU,IV6);KM70..SJL..TS..3SO..CBU200208-200708

WHITE,058

sub52119-27050

main52119-27080-B1iKM8#..TS..CBU;KM7#..SJL..TS..3SO..CBU200208-200708

sub52119-27050

52141DSTAY, FRONT BUMPER, RH

main52141-27040iCM7#,8#,KM7#,8#199906-200208

main52141-27050iCM7#,8#,KM7#,8#200208

52142CSTAY, FRONT BUMPER, LH

main52142-27020iCM7#,8#,KM7#,8#199906-200208

main52142-27030iCM7#,8#,KM7#,8#200208

52187HGUIDE, FRONT BUMPER LOCATION

main52187-45010iCM7#,8#,KM7#,8#199906-200208

52422APAD, FRONT BUMPER, RH

main52421-27010iCM7#,8#,KM7#,8#199906-200208

52423APAD, FRONT BUMPER, LH

main52421-27010iCM7#,8#,KM7#,8#199906-200208

9010906289

main90109-06289

9015950105

main90159-50105

9015960393

main90159-60393

9017906127

main90179-06127

9018906006

main90189-06006

9018906215

main90189-06215

9046708185

main90467-08185

9165140616

main91651-40616

20 parts on this diagram · 2 diagrams in section
