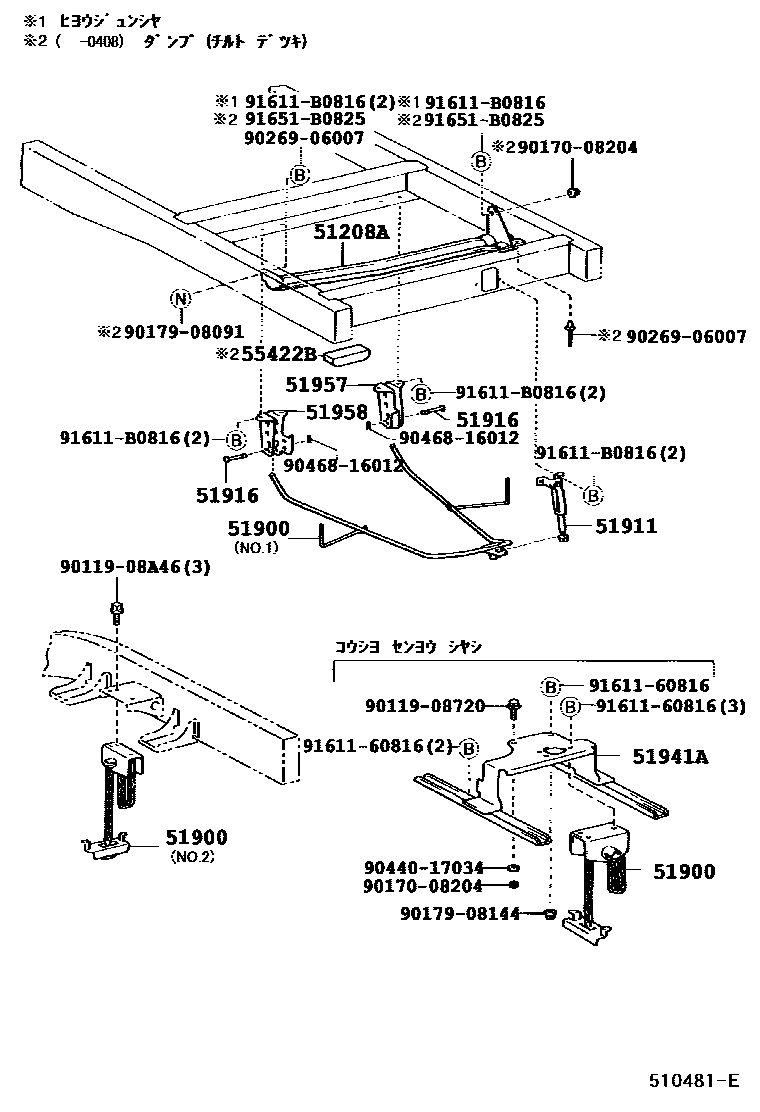

SPARE WHEEL CARRIER

51208AMEMBER SUB-ASSY, SPARE WHEEL SET

main51208-27050iCM7#,8#,KM7#,8#199906-200408

51900CARRIER ASSY, SPARE WHEEL

main51900-27120iKM7#..CBU,IV3199906-200408

main51900-27130iCM8#,KM8#199906-200408

main51900-27140iKM7#..SJL199906-200408

main51900-27230iCM75..5H..IV3199906-200208

main51900-35101iCM75..5H..IV3199906-200208

51911BOLT ASSY, SPARE WHEEL MOUNTING

main51910-27030iCM7#,8#,KM7#,8#199906-200408

51916PIN, SPARE TIRE CARRIER

main51916-27020iCM7#,8#,KM7#,8#199906-200408

51941ABRACKET, SPARE WHEEL CARRIER

main51941-27140iCM75..5H..IV3199906-200208

51957BRACKET, SPARE WHEEL CARRIER HINGE, RH

main51957-27020iCM7#,8#,KM7#,8#199906-200408

51958BRACKET, SPARE WHEEL CARRIER HINGE, LH

main51958-27020iCM7#,8#,KM7#,8#199906-200408

55422BPAD, FRONT BUMPER SIDE

main55422-20070iCM70,80,KM70,80..JL..5H..IV3199906-200408

9011908720

main90119-08720

9011908A46

main90119-08A46

9017008204

main90170-08204

9017908091

main90179-08091

9017908144

main90179-08144

9026906007

main90269-06007

9044017034

main90440-17034

9046816012

main90468-16012

9161160816

main91611-60816

91611B0816

main91611-B0816

91651B0825

main91651-B0825

19 parts on this diagram · 1 diagram in section
