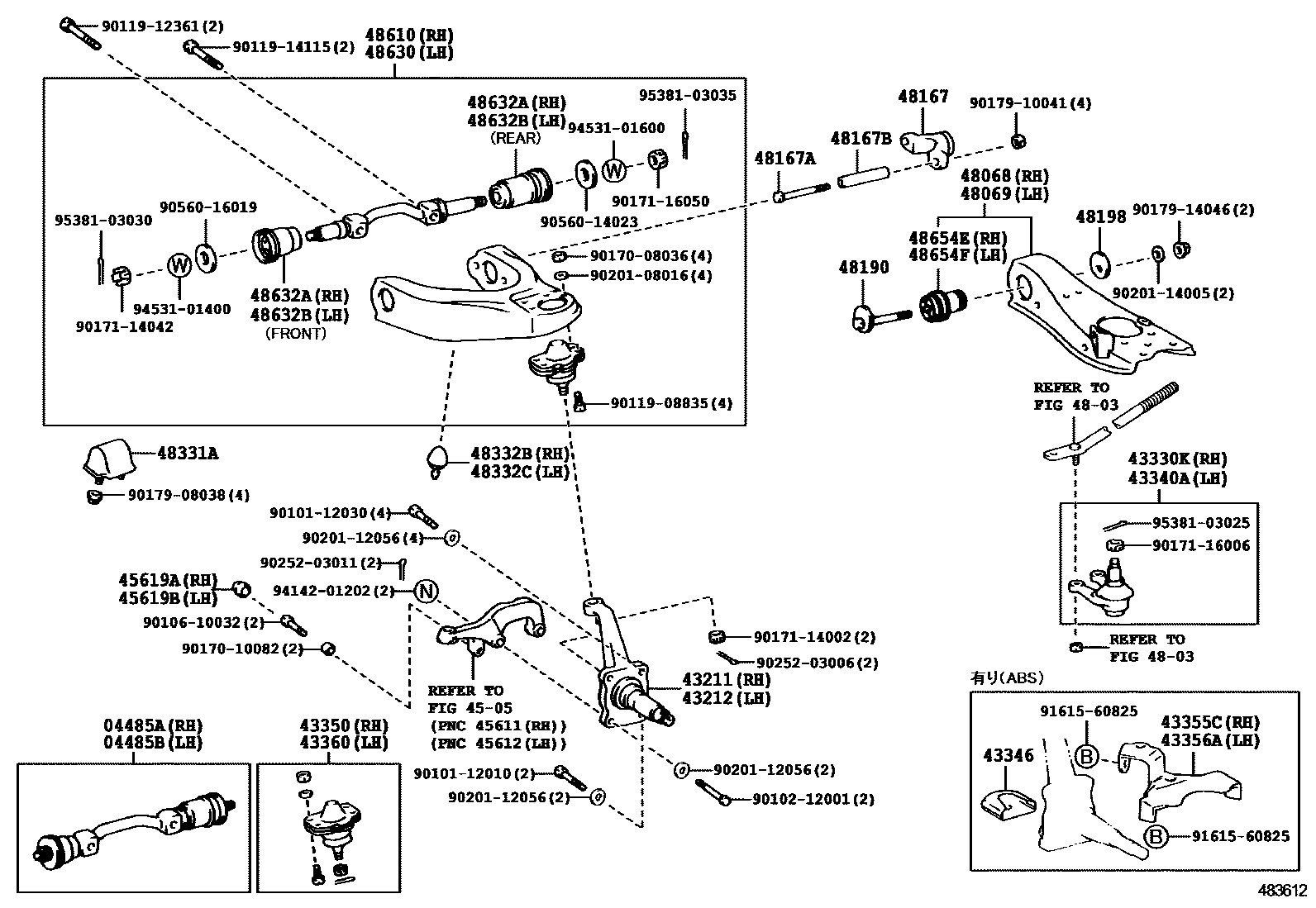

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0003 1

04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH

main04485-28050iCM7#,KM7#..CBU,IV3199906-200208

04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH

main04485-28050iCM7#,KM7#199906-200208

43211KNUCKLE, STEERING, RH

main43211-27040iCM75..IV3199906-200208

main43211-28021iCM7#..CBU,IV3199906-200408

main43211-28070iKM7#..CBU,IV3199906-200408

main43211-28080iKM75,8#..JL199906-200408

main43211-28090iCM8#,KM8#199906-200408

43212KNUCKLE, STEERING, LH

main43211-27040iCM75..IV3199906-200208

main43211-28021iKM7#..CBU,IV3199906-200408

main43212-28050iCM7#,KM7#199906-200408

main43212-28060iKM75,8#..JL199906-200408

main43212-28070iKM85..4HC199906-200408

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29175iCM7#,KM7#199906-200408

sub43330-29545

main43330-29395iCM8#,KM8#199906-200408

main43330-29545iKM7#..CBU,IV3200408

main43330-29555iKM75,8#..JL200408

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-29175iCM7#,KM7#199906-200408

sub43330-29545

main43330-29395iCM8#,KM8#199906-200408

main43330-29545iKM7#..CBU,IV3200408

main43330-29555iKM75,8#..JL200408

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-28012iCM7#,KM7#199906-200208

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-29076iCM7#,KM7#..CBU,IV3199906-200208

43355CDEFLECTOR, LOWER ARM ICE, RH NO.1

main43355-28021iCM7#,KM7#199906-200408

43356ADEFLECTOR, LOWER ARM ICE, LH NO.1

main43355-28021iCM7#,KM7#199906-200408

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-29076iCM7#,KM7#199906-200208

4505

45619ACOVER, STEERING KNUCKLE STOPPER, RH

main45619-14020iCM7#,8#199906-200408

45619BCOVER, STEERING KNUCKLE STOPPER, LH

main45619-14020iCM7#,8#,KM7#,8#199906-200408

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-28070iCM7#,KM7#199906-200408

main48068-28090iCM75,8#..JL199906-200408

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-28070iCM7#..CBU,IV3199906-200408

main48069-28090iKM75,8#..JL199906-200408

48167ARM, TORQUE

main48106-27040iCM7#,KM7#199906-200708

main48106-27050iCM8#,KM8#199906-199911

sub48106-38020

main48106-38020iCM75,8#,KM75,8#..JL199911-200708

48167ABOLT(FOR TORQUE ARM SETTING)

main90101-10177iCM7#,KM7#199906-200708

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-17029iCM7#,KM7#199906-200708

48190CAM ASSY, CAMBER ADJUST

main48190-27020iKM7#..CBU,IV3199906-200408

48198CAM, CAMBER ADJUST, NO.2

main48198-27010iCM7#,KM7#199906-200408

48331ABUMPER, FRONT SPRING, NO.1

main48331-27051iCM7#..CBU,IV3199906-200408

main48331-27080iCM75..IV3199906-200208

main48331-28020iKM75,8#..JL199906-200408

48332BUMPER, FRONT SPRING, NO.2

main48332-27020iCM75,8#..JL199906-200408

48332BBUMPER, FRONT SPRING, NO.2 RH

main48332-35020iCM7#,8#199906-200408

48332CBUMPER, FRONT SPRING, NO.2 LH

main48332-35020iCM7#,8#,KM7#,8#199906-200408

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-28030iCM7#,KM7#199906-200408

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-28030iCM7#,KM7#199906-200408

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-28050iKM7#..CBU,IV3199906-200408

main48635-28060iCM7#,KM7#199906-200408

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-28050iKM7#..CBU,IV3199906-200408

main48635-28060iCM7#..CBU,IV3199906-200408

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48061-27011iCM7#,KM7#199906-200408

main48061-28040iCM8#,KM8#199906-200408

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48061-27011iCM7#,KM7#199906-200408

main48061-28040iCM8#,KM8#199906-200408

9010112010

main90101-12010

9010112030

main90101-12030

9010212001

main90102-12001

9010610032

main90106-10032

9011908835

main90119-08835

9011912361

main90119-12361

9011914115

main90119-14115

9017008036

main90170-08036

9017010082

main90170-10082

9017114002

main90171-14002

9017114042

main90171-14042

9017116006

main90171-16006

9017116050

main90171-16050

9017908038

main90179-08038

9017910041

main90179-10041

9017914046

main90179-14046

9020108016

main90201-08016

9020112056

main90201-12056

9020114005

main90201-14005

9025203006

main90252-03006

9025203011

main90252-03011

9056014023

main90560-14023

9056016019

main90560-16019

9161560825

main91615-60825

9414201202

main94142-01202

9453101400

main94531-01400

9453101600

main94531-01600

9538103025

main95381-03025

9538103030

main95381-03030

9538103035

main95381-03035

62 parts on this diagram · 2 diagrams in section
