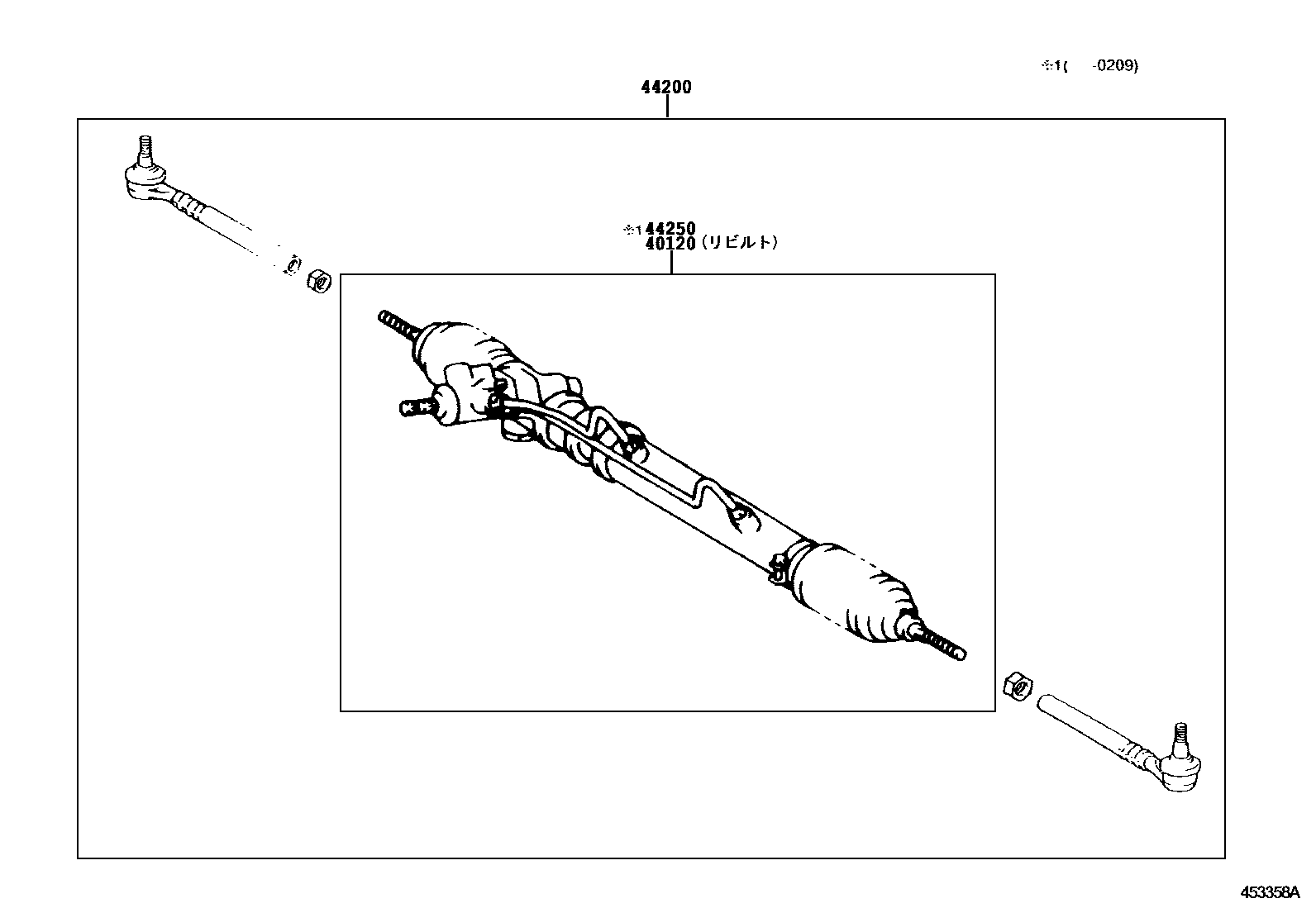

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-27110iCM7#,KM7#199906-200208

TOYODA KOKI

main40120-27120iCM75,8#,KM75,8#..JL199906-200208

TOYODA KOKI

44200LINK ASSY, POWER STEERING

main44200-27120iKM7#..CBU,IV3199906-200408

main44200-27130iCM75,8#..JL199906-200408

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-27110iCM7#,KM7#199906-200408

sub44200-27120

main44250-27120iCM8#,KM8#199906-200408

sub44200-27130

3 parts on this diagram · 5 diagrams in section
