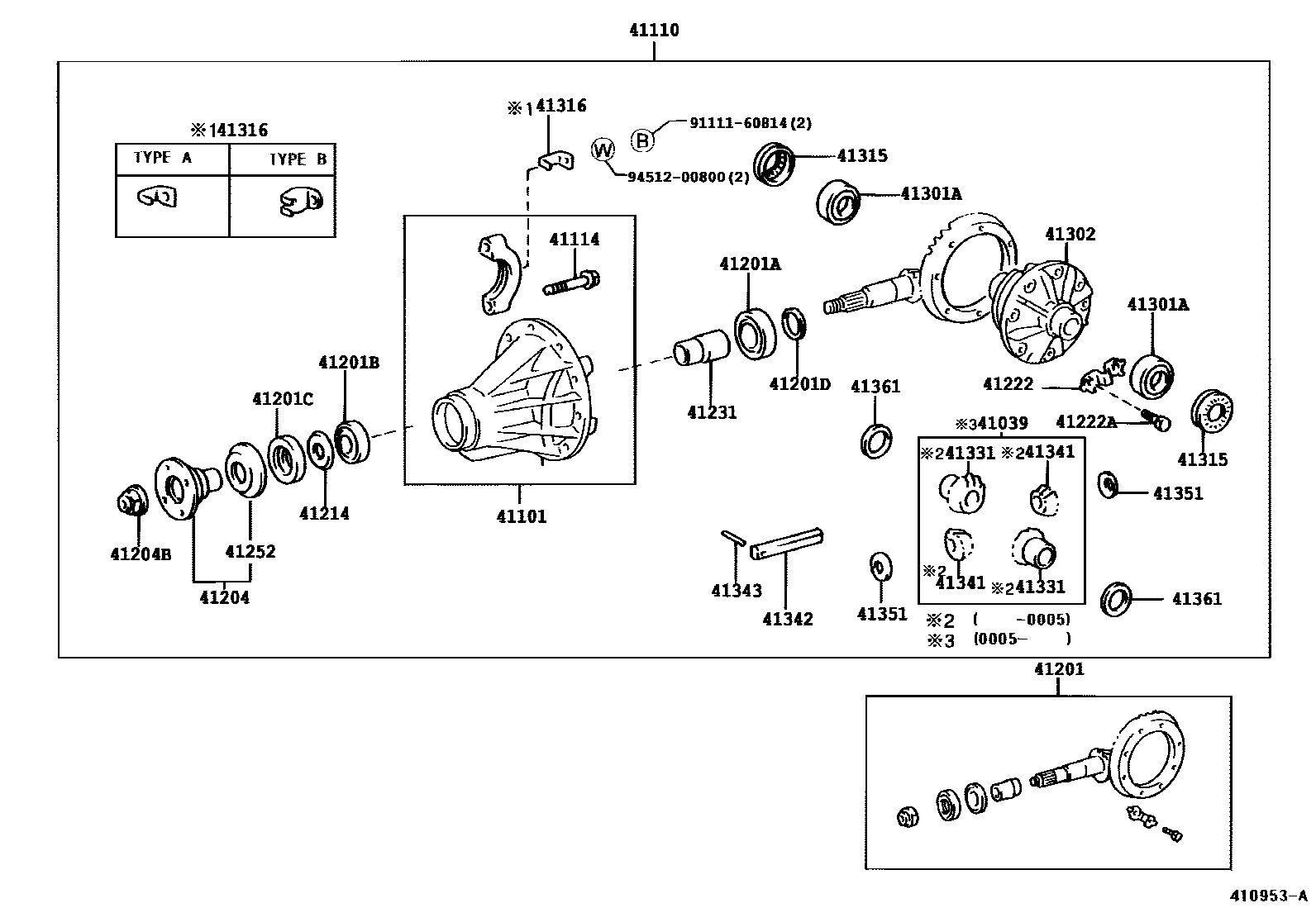

REAR AXLE HOUSING & DIFFERENTIAL

0001 1���OR�����������OR(���&������0002 1 0003 1 0004 1 0005 1

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-28010iCM7#,KM7#199906-200208

main41039-34090iCM8#..CBU,IV3;KM8#..TS..5H..(CBU,IV3)200005-200208

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-30010iCM7#,KM7#..CBU,IV3199906-200208

main41101-30031iCM75..IV3199906-200208

main41101-30031iCM75,8#,KM75,8#..JL200208

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-27140iCM70,KM70..SJL..5H199906-200708

main41110-27150iCM75,KM75..5H;CM70,KM70..SJL..4HC199906-200708

main41110-27160iCM75,KM75..4HC;CM70,KM70..(JL,T1)..5H199906-200708

main41110-27170iCM70,KM70..JL..4HC199906-200708

main41110-28080iCM75..IV3199906-200208

main41110-28090iCM8#,KM8#199906-200708

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iCM75,8#,KM75,8#..JL200208

main90105-12053iCM8#,KM8#199906-200208

main90105-12240iCM7#,KM7#..CBU,IV3199906-200208

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29217iCM70..JL..5H;CM75..SJL..4HC199906-200408

main41201-29765iKM70..SJL..5H199906-200208

main41201-39555iCM75,KM75..5H;CM70,KM70..SJL..4HC199906-200408

main41201-80015iCM75..IV3199906-200208

main41201-80020iCM70..JL..4HC199906-200408

main41201-80030iCM75,8#..JL199906-200408

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iCM8#,KM8#199906-200208

main90366-35064iCM7#,KM7#200203-200206

main90366-35067iCM7#,KM7#199906-200203

sub90366-35064

main90366-35073iCM75..IV3199906-200208

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30055iCM7#,8#,KM7#,8#199906-200208

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38047iCM75..IV3199906-200408

main90311-38047iCM8#,KM8#199906-200208

main90311-38133iCM7#,KM7#199906-200107

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iCM7#,8#,KM7#,8#199906-200208

main90201-35397iCM7#,8#,KM7#,8#199906-200208

main90201-35398iCM7#,8#,KM7#,8#199906-200208

main90201-35399iCM7#,8#,KM7#,8#199906-200208

main90201-35400iCM7#,8#,KM7#,8#199906-200208

main90201-35401iCM7#,8#,KM7#,8#199906-200208

main90201-35402iCM7#,8#,KM7#,8#199906-200208

main90201-35403iCM7#,8#,KM7#,8#199906-200208

main90201-35404iCM7#,8#,KM7#,8#199906-200208

main90201-35438iCM7#,8#,KM7#,8#199906-200208

main90201-35439iCM7#,8#,KM7#,8#199906-200208

main90201-35440iCM7#,8#,KM7#,8#199906-200208

main90201-35441iCM7#,8#,KM7#,8#199906-200208

main90201-35515iCM7#,8#,KM7#,8#199906-200208

main90201-35516iCM7#,8#,KM7#,8#199906-200208

main90201-35517iCM7#,8#,KM7#,8#199906-200208

main90201-35518iCM7#,8#,KM7#,8#199906-200208

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35050iCM7#,8#,KM7#,8#199906-200208

41204BNUT (FOR REAR DRIVE PINION)

main90179-18020iCM7#,8#,KM7#,8#199906-200208

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-30021iCM7#,8#,KM7#,8#199906-200208

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-28010iCM7#,KM7#..CBU,IV3199906-200208

main41222-35030iCM75..IV3199906-200208

main41222-35030iCM75,8#,KM75,8#..JL200208

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iCM75,8#,KM75,8#..JL200208

main90101-11353iCM7#,KM7#199906-200208

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iCM75..IV3199906-200208

main41231-22010iCM75,8#,KM75,8#..JL200208

main41231-22020iCM7#,KM7#..CBU,IV3199906-200208

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-30010iCM7#,8#,KM7#,8#199906-200208

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45014iCM7#,8#,KM7#,8#199906-200208

main90368-45066iCM75..IV3199906-200206

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41311-30022iCM7#,KM7#..CBU,IV3199906-200208

main41311-30050iCM75..IV3199906-200208

sub41311-28010

main41311-30050iCM75,8#,KM75,8#..JL200208

sub41311-28010

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iCM7#,KM7#..CBU,IV3199906-200208

main41315-35010iCM75..IV3199906-200208

main41315-35010iCM75,8#,KM75,8#..JL200208

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-35010iCM7#,8#,KM7#,8#199906-200208

main41316-35010iCM7#,8#,KM7#,8#200208

main41317-30010iCM7#,8#,KM7#,8#199906-200208

main41317-30010iCM7#,8#,KM7#,8#200208

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-30030iCM75..IV3;CM8#,KM8#199906-200005

41341PINION, REAR DIFFERENTIAL

main41341-30020iCM75..IV3;CM8#,KM8#199906-200005

sub41341-30050

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22020iCM75..IV3199906-200005

sub41342-22021

main41342-22021iCM8#..CBU,IV3;KM8#..TS..5H..(CBU,IV3)200005-200208

main41342-30011iCM7#,KM7#199906-200208

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iCM7#,8#,KM7#,8#199906-200208

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30032iCM7#,KM7#199906-200208

main41351-30060iCM8#,KM8#199906-200208

main41351-30060iCM75,8#,KM75,8#..JL200208

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iCM7#,KM7#..CBU,IV3199906-200208

main41361-22030iCM7#,KM7#199906-200208

main41361-22040iCM7#,KM7#199906-200208

main41361-22140iCM7#,KM7#199906-200208

main41361-22150iCM7#,KM7#199906-200208

main41361-22160iCM7#,KM7#199906-200208

main41361-30040iCM75,8#,KM75,8#..JL199906-200208

main41361-30050iCM75,8#,KM75,8#..JL199906-200208

main41361-30060iCM75,8#,KM75,8#..JL199906-200208

main41361-30070iCM75..IV3;CM8#,KM8#199906-200208

9111160814

main91111-60814

9451200800

main94512-00800

28 parts on this diagram · 5 diagrams in section
