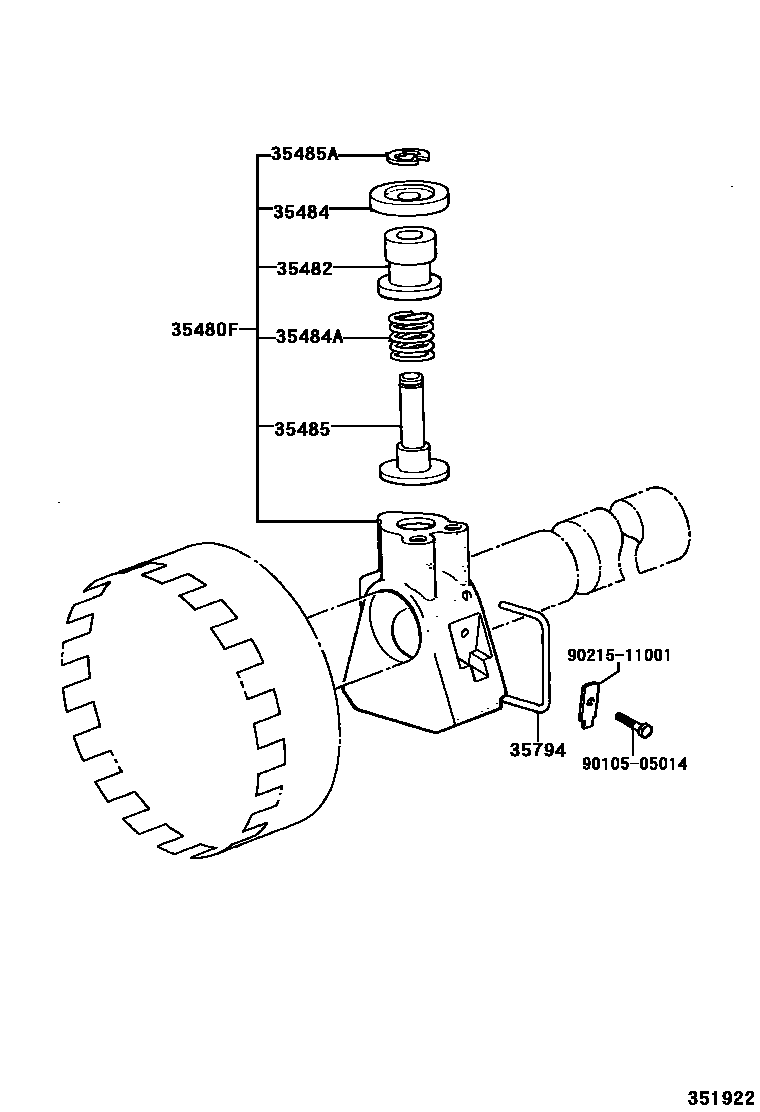

REAR OIL PUMP & GOVERNOR (ATM)

0001 1A42D 0002 1A44DF

35480FBODY ASSY, GOVERNOR

main35480-26030iCM85..4HC199906-200408

main35480-28020iKM85..4HC200502

main35480-28030iKM7#..4HC199906-200208

main35480-30080iCM7#..4HC199906-200408

35482VALVE, GOVERNOR

main35482-20010iCM7#..4HC199906-200408

main35482-28010iCM85..4HC199906-200408

main35482-28020iKM85..4HC200502

main35482-30030iKM7#..4HC199906-200208

35484WEIGHT, GOVERNOR, OUTER

main35484-20020iCM7#..4HC199906-200408

main35484-22010iCM85,KM7#..4HC199906-200408

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-07033iCM85..4HC199906-200408

main90501-08059iCM85..4HC199906-200408

main90501-09030iCM7#..4HC199906-200408

main90501-09049iKM85..4HC200502

main90501-09065iKM85..4HC200502

main90501-09070iKM7#..4HC199906-200208

35485SHAFT, GOVERNOR VALVE

main35485-14010iKM85..4HC199906-200408

main35485-22010iKM7#..4HC199906-200408

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iCM7#,85,KM7#..4HC199906-200408

35794RING, GOVERNOR RETAINING

main35794-22010iCM7#,85,KM7#..4HC199906-200408

9010505014

main90105-05014

9021511001

main90215-11001

9 parts on this diagram · 2 diagrams in section
