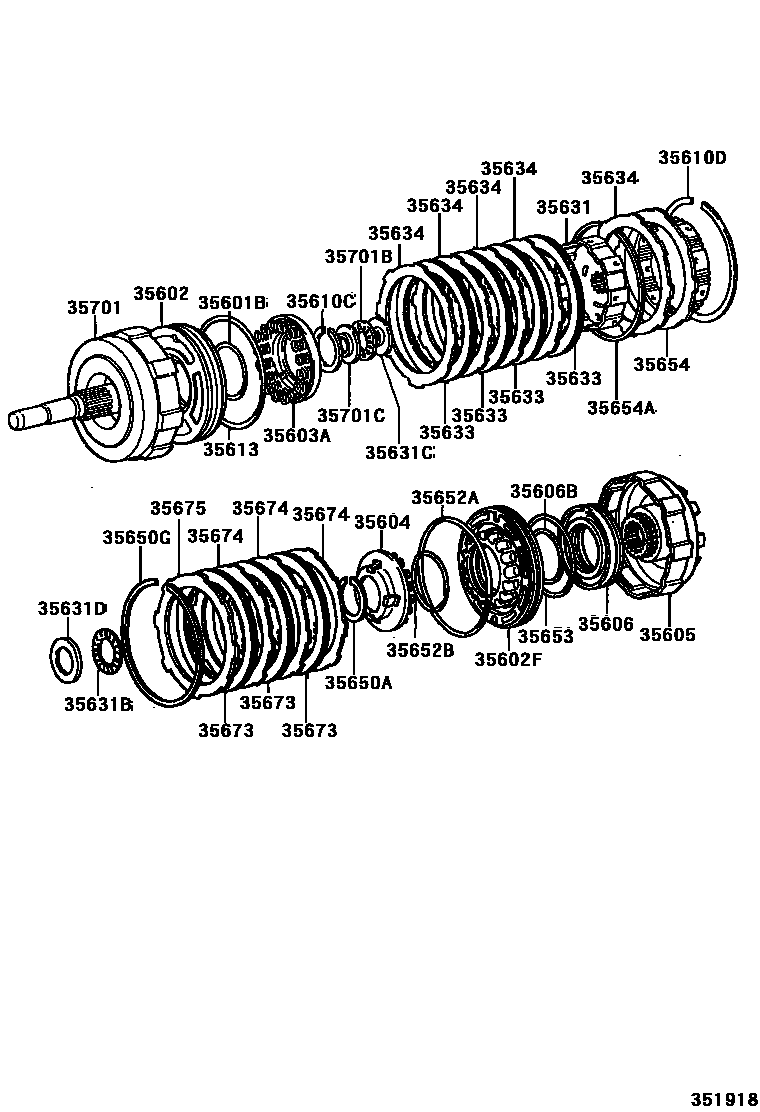

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

35601BRING, O (FOR FRONT CLUTCH DRUM)

main90301-56007iKM7#,85..4HC200208

35602PISTON SUB-ASSY, FRONT CLUTCH

main35602-30042iCM7#,85..4HC200208-200408

35602FPISTON SUB-ASSY, REAR CLUTCH, NO.2

main35602-30041iCM7#,85,KM7#..4HC199906-199911

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-22030iCM7#,85,KM7#..4HC199906-200208

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35603-22010iCM85,KM7#..4HC199911-200208

main35603-22020iCM7#,85..4HC200208-200408

35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR

main35605-22011iCM7#,85,KM7#..4HC199906-200208

35606PISTON SUB-ASSY, REAR CLUTCH

main35606-22010iCM7#,85,KM7#..4HC199906-199911

main35606-30021iKM85..4HC200502

35606BRING (FOR REAR CLUTCH PISTON INNER)

main90301-56007iCM7#,85,KM7#..4HC199906-200208

35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)

main90520-39261iCM7#,85,KM7#..4HC199906-200208

35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)

main90520-99012iCM7#,85,KM7#..4HC199906-200208

35613RING, CLUTCH PISTON OIL SEAL, OUTER

main90301-99058iCM7#,85,KM7#..4HC199906-200208

35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)

main35631-30050iCM7#,85,KM7#..4HC199906-200005

main35631-43010iCM7#,85,KM7#..4HC200005-200208

35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)

main90374-28014iCM7#,85,KM7#..4HC199906-200208

35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)

main35789-22050iCM7#,85,KM7#..4HC199906-200208

35631DRACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)

main35789-22020iCM7#,85,KM7#..4HC199906-200005

main35789-43010iCM7#,85,KM7#..4HC200005-200208

35633DISC, CLUTCH (FOR FRONT CLUTCH)

main35677-22080×4iCM7#,85..4HC200208-200408

35634PLATE, FRONT CLUTCH

main35634-22040×3iCM7#,85..4HC200208-200408

main35634-30070iCM7#,85,KM7#..4HC199906-200208

35650ARING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)

main90520-39261iCM7#,85,KM7#..4HC199906-200208

35650GRING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)

main90521-99139iCM7#,85,KM7#..4HC199906-200208

35652ARING (FOR REAR CLUTCH OUTER)

main90301-99058iCM7#,85,KM7#..4HC199906-200208

35652BRING (FOR REAR CLUTCH PISTON INNER)

main90301-56007iCM7#,85,KM7#..4HC199906-200208

35653RING, REAR CLUTCH OIL SEAL, OUTER

main90301-83001iCM7#,85,KM7#..4HC199906-200208

35654HUB, REAR CLUTCH

main35654-30010iCM7#,85,KM7#..4HC199906-200208

35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)

main90521-99146iKM7#,85..4HC200208

35673DISC, REAR CLUTCH

main35677-22080×3iCM7#,85,KM7#..4HC199906-200208

35674PLATE, REAR CLUTCH

main35634-22040×3iCM7#,85,KM7#..4HC199906-199911

main35634-30070×3iKM7#,85..4HC200208

35675FLANGE, REAR CLUTCH

main35675-22010iCM7#,85,KM7#..4HC199906-199911

main35675-22120iCM7#..4HC199911-200208

main35675-22130iCM7#,85..4HC200208-200408

main35675-22140iCM7#,85..4HC200208-200408

35701SHAFT SUB-ASSY, INPUT

main35701-30043iCM7#,85,KM7#..4HC199906-200208

35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)

main90374-23012iCM7#,85,KM7#..4HC199906-200208

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-22010iCM7#,85,KM7#..4HC199906-200208

30 parts on this diagram · 1 diagram in section
