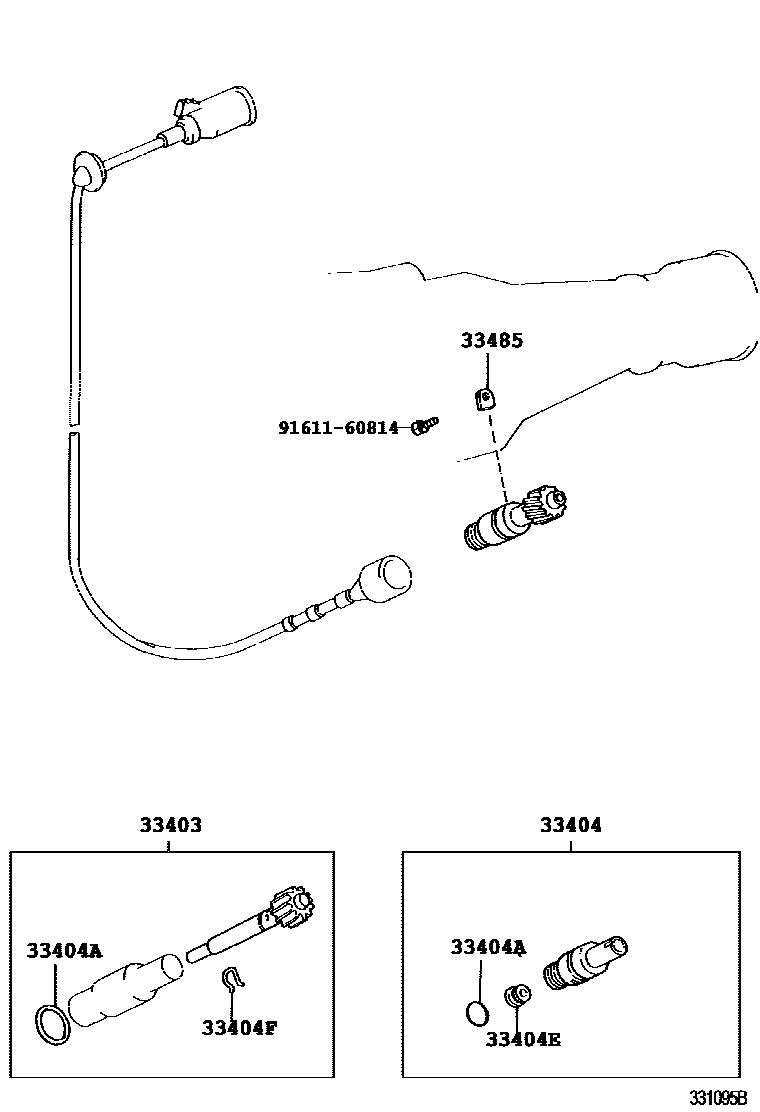

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1G52,G55 0002 1G52,G55

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29355iKM75..5H200408

main33403-29385iKM8#..5H200408

main33403-39335iKM70..5H200408

main33482-29035iCM70,KM70..5H199906-200408

main33482-29045iCM75,KM75..5H199906-200408

main33482-29095iCM8#,KM8#..5H199906-200408

main33482-39095iCM75..5H..IV3199906-200208

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-35010iCM7#,8#,KM7#,8#..5H199906-200408

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iCM7#,8#,KM7#,8#..5H199906-200408

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iCM7#,8#,KM7#,8#..5H199906-200408

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iCM7#,8#,KM7#,8#..5H199906-200408

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iCM7#,8#,KM7#,8#..5H199906-200408

9161160814

main91611-60814

7 parts on this diagram · 2 diagrams in section
