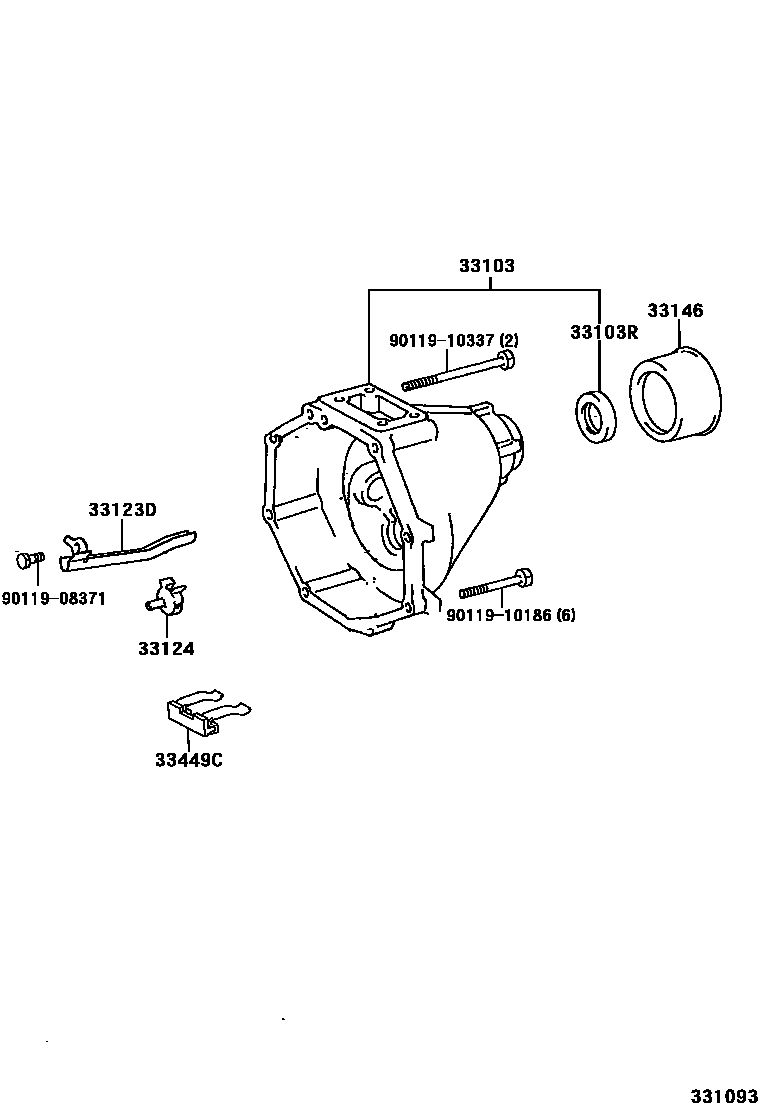

EXTENSION HOUSING (MTM)

0001 1G52 0002 1G52

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-28031iCM7#,KM7#..5H199906-200208

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iCM7#,KM7#..5H199906-200708

33123DRECEIVER, CASE COVER OIL(MTM)

main33124-28011iCM7#,KM7#..5H199906-200708

33124PIPE, OIL RECEIVER(MTM)

main33124-36010iCM7#,KM7#..5H199906-200708

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iCM7#,KM7#..5H199906-200105

sub33146-30020

main33146-30020iCM7#,KM7#..5H200105-200708

33449CMAGNET, TRANSMISSION (MTM)

main33449-26010iCM7#,8#,KM7#,8#..5H199906-200408

9011908371

main90119-08371

9011910186

main90119-10186

9011910337

main90119-10337

9 parts on this diagram · 2 diagrams in section
