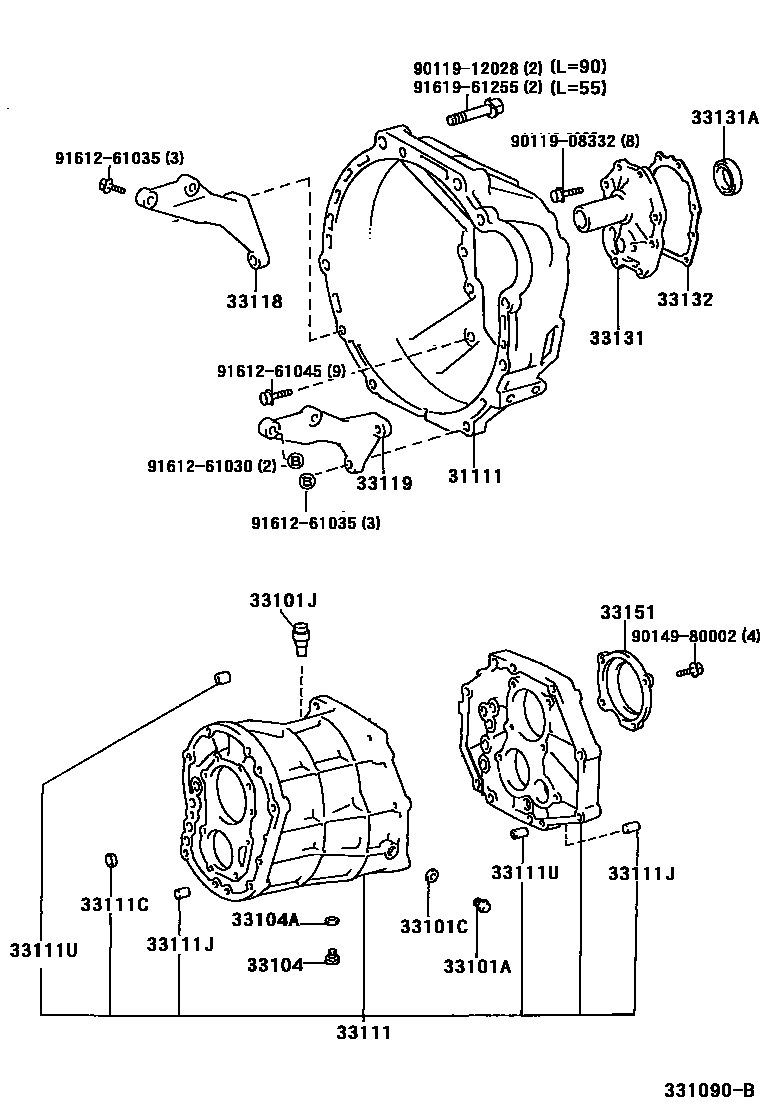

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G52 0002 1G52,G55

31111HOUSING, CLUTCH

main31111-27030iKM7#,8#..5H199906-200208

main31111-27050iCM7#,8#..5H199906-200408

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iCM7#,8#,KM7#,8#..5H199906-200708

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iCM7#,8#,KM7#,8#..5H199906-200408

33101JPLUG, BREATHER

main90930-03085iCM7#,8#,KM7#,8#..5H199906-200408

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18032iCM7#,8#,KM7#,8#..5H199906-200708

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iCM7#,8#,KM7#,8#..5H199906-200408

33111CASE, MANUAL TRANSMISSION

main33101-35060iCM7#,8#,KM7#,8#..5H199906-200408

sub33101-26060

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iCM7#,8#,KM7#,8#..5H199906-200708

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iCM7#,8#,KM7#,8#..5H199906-200708

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iCM7#,8#,KM7#..5H199906-200708

main90253-11001iKM85..IV3200208-200408

main90253-15001iCM7#,8#,KM7#,8#..5H199906-200708

33118PLATE, STIFFENER, RH(MTM)

main33118-12080iKM7#,8#..5H199906-200208

main33118-14033iCM7#,8#..5H199906-200408

33119PLATE, STIFFENER, LH(MTM)

main33119-14050iCM7#,8#..5H199906-200408

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iCM7#,8#,KM7#,8#..5H199906-200408

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iCM7#,8#,KM7#,8#..5H199906-200708

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iCM7#,8#,KM7#,8#..5H199906-200408

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35030iCM7#,8#..5H199906-200408

9011908332

main90119-08332

9011912028

main90119-12028

9014980002

main90149-80002

9161261030

main91612-61030

9161261035

main91612-61035

9161261045

main91612-61045

9161961255

main91619-61255

23 parts on this diagram · 2 diagrams in section
