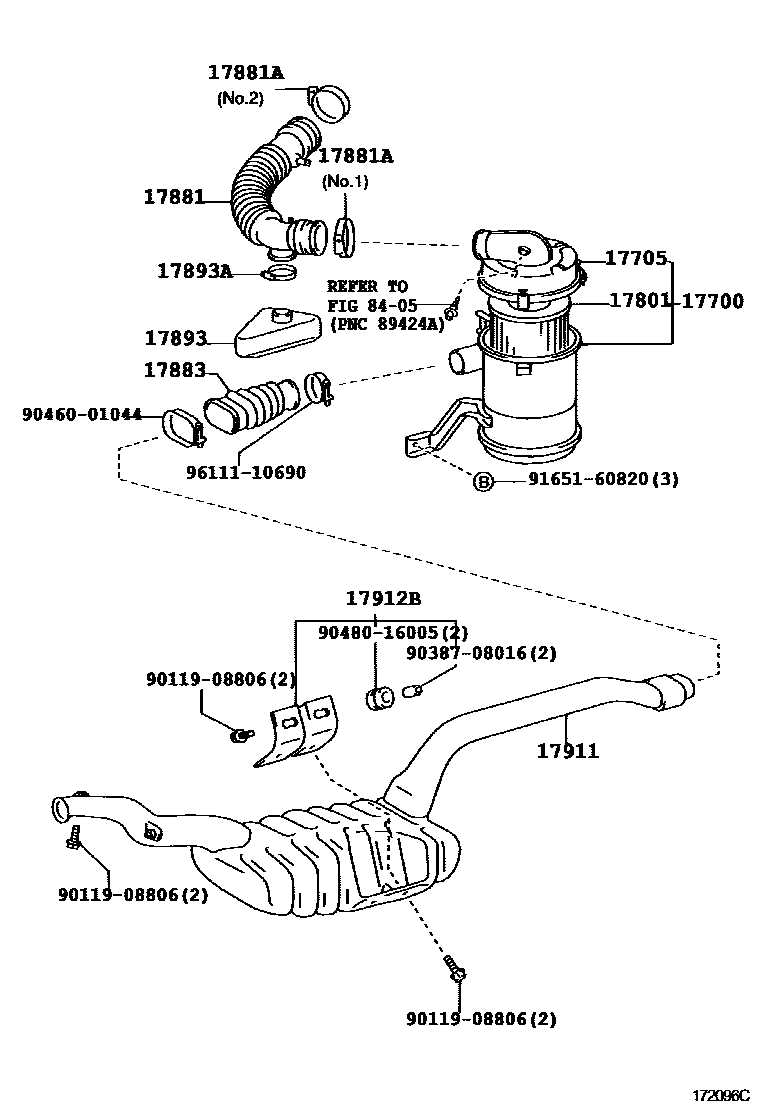

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-13860i7KE..KM7#,8#199906-200203

sub17700-13861

main17700-13861i7KE..KM7#,8#200203-200208

main17700-64460i3CE..CM7#,8#199906-200408

17705CAP SUB-ASSY, AIR CLEANER

main17705-13260i7KE..KM7#,8#199906-200203

sub17705-13261

main17705-13261i7KE..KM7#,8#200203-200208

main17705-64320i3CE..CM7#,8#199906-200408

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-13050i7KE..KM7#,8#199906-200208

main17801-64080i3CE..CM7#,8#199906-200408

17881HOSE, AIR CLEANER, NO.1

main17881-13200i7KE..KM7#,8#199906-200208

main17881-64390i3CE..CM7#,8#199906-200203

sub17881-64391

main17881-64391i3CE..CM7#,8#200203-200208

main17881-64420i3CE..CM7#,8#200208-200408

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-73003i7KE..KM7#,8#199906-200208

sub90460-73011

main90460-73011i7KE..KM7#,8#200208-200408

main90460-77002i3CE..CM7#,8#199906-200208

main90460-77003i3CE..CM7#,8#200208-200408

main90460-80006i7KE..KM7#,8#200208

17883HOSE, AIR CLEANER, NO.3

main17883-13020i7KE..KM7#,8#199906-200408

17893RESONATOR, INTAKE AIR

main17893-64070i3CE..CM7#,8#199906-200208

main17893-64090i3CE..CM7#,8#200208-200408

17893ACLAMP, HOSE

main90460-40001i3CE..CM7#,8#200208-200212

main90460-45001i3CE..CM7#,8#199906-200408

17911DUCT, COOL AIR INTAKE, NO.1

main52810-27010i3CE..CM7#,8#199906-200208

main52810-27020i3CE..CM7#,8#200208-200408

17912BBRACKET, COOL AIR INTAKE DUCT, NO.2

main52854-27010i3CE..CM7#,8#199906-200208

main52854-27020i3CE..CM7#,8#200208-200408

8405

9011908806

main90119-08806

9038708016

main90387-08016

9046001044

main90460-01044

9048016005

main90480-16005

9165160820

main91651-60820

9611110690

main96111-10690

17 parts on this diagram · 4 diagrams in section
