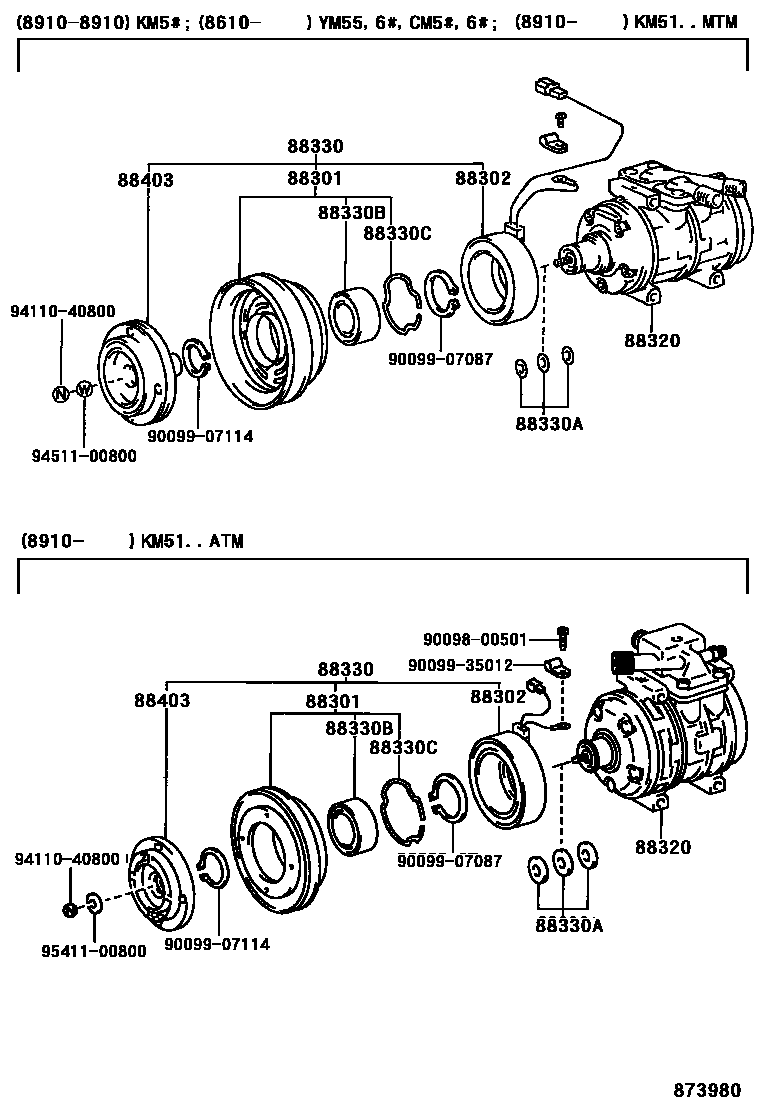

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1TECS 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-20070iCM5#,6#198610-199008

main88412-22030iKM5#,YM55,6#198610-199310

main88412-22240iKM51,YM6#199611-199906

main88412-25020iCM51,55..5H..IV199008-199310

main88412-25030iCM51,55,65..5H..IV199611-199906

main88412-27040iCM51..SJL199206-199210

main88412-27050iCM5#,6#199611-199906

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12160iCM51,55199310-199611

main88411-14050iCM5#,6#198910-199008

main88411-25030iCM51,55..5H..IV199008-199310

main88411-25040iCM51,55,65..5H..IV199611-199906

main88411-60040iCM51..SJL199206-199210

88320COMPRESSOR ASSY, COOLER

main88320-26340iCM51,55..5H..IV199008-199310

main88320-27060iYM55,6#198610-199310

main88320-27070iKM5#198610-198910

main88320-27080iCM6#198610-199008

main88320-27081iCM60,65199008-199310

main88320-27140iKM51..ATM198910-199310

main88320-27150iKM51..MTM199310-199906

sub88320-27H91

main88320-27160iKM51..ATM199310-199906

sub88320-3AH90

main88320-27170iYM55,6#199310-199906

sub88320-27H91

main88320-27180iCM51,55199310-199906

main88320-27190iCM65..TS;CM52,60,61199310-199611

main88320-27200iCM51,55..5H..IV199406-199611

sub88320-27H90

main88320-28040iCM50,51,55198610-199310

88330CLUTCH ASSY, MAGNET

main88410-14120iCM5#,6#198610-199008

main88410-22080iKM5#,YM55,60198610-198910

main88410-25050iCM51,55..5H..IV199008-199310

TECS

main88410-25080iCM51,55,65..5H..IV199611-199906

main88410-27030iCM5#,6#199008-199310

main88410-27040iCM51..SJL199206-199210

main88410-27050iCM5#,6#199310-199906

main88410-27060iCM51..SJL..IV199310-199404

main88410-36390iKM51,YM55,6#199310-199906

main88410-60140iKM5#,YM55,6#198910-199310

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iCM51..SJL..IV199210-199310

main90099-01108iCM51,55..5H..IV199008-199310

main90099-01350iCM51,55..5H..IV199008-199310

main90099-01351iCM51,55..5H..IV199008-199310

88330BBEARING, MAGNET CLUTCH

main90099-10133iCM5#,6#198610-198808

main90099-10162iKM5#,YM55,60198610-198808

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iKM5#,YM55,6#198610-199310

main90099-07118iCM5#,6#198610-199008

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iCM5#,6#,KM5#,YM55,60198711-199008

main88403-14030iCM5#,6#,KM5#,YM55,60198610-198711

main88403-27010iCM51..SJL..IV199210-199310

main88403-36030iCM51,55..5H..IV199008-199310

9009800501

main90098-00501

9009907087

main90099-07087

9009907114

main90099-07114

9009935012

main90099-35012

9411040800

main94110-40800

9451100800

main94511-00800

9541100800

main95411-00800

15 parts on this diagram · 8 diagrams in section
