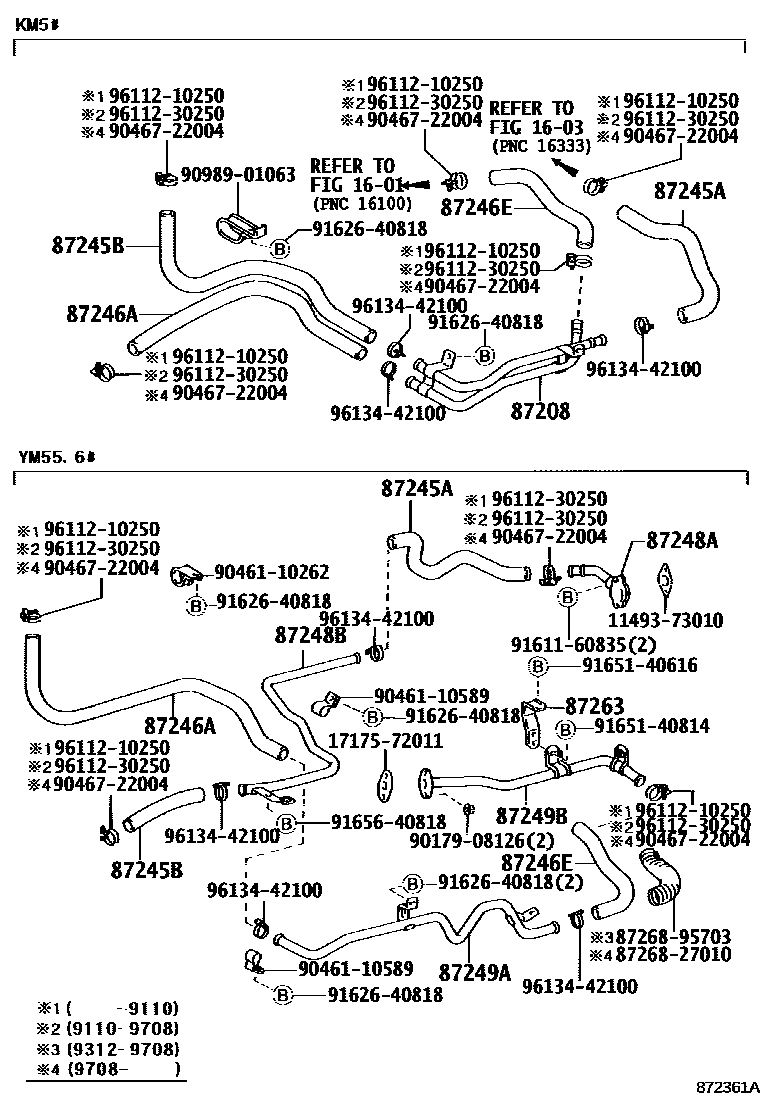

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1601

1603

87208PIPE SUB-ASSY, HEATER WATER

main87208-27010iKM51..DX199008

main87208-95719iKM5#198610-198711

main87208-95739iKM51..SPX198711-198808

main87208-95749iKM5#..DX198808-198906

main87208-95751iKM51..SPX198808

main87208-95759iKM5#..DX198906-199008

87245AHOSE, HEATER WATER, INLET A

main87245-27020iCM5#,6#199112-199310

main87245-27040iCM51,55..5H..IV199210-199508

TECS

main87245-27050iYM55..IV199312

TECS

main87245-95734iKM51..DX199008

main87245-95736iCM5#,6#198610-199112

main87245-95737iYM55,6#198610

main87245-95755iKM5#198610

87245BHOSE, HEATER WATER, INLET B

main99556-30500iCM5#,6#,YM55,6#198711-199310

main99556-30980iKM5#198711-198808

sub99556-31000

87246AHOSE, HEATER WATER, OUTLET A

main99556-30500iKM5#198808

main99556-30700iCM5#,6#,YM55,6#199611

sub99556-31000

main99556-30980iCM5#,6#,KM5#,YM55,60198711-198808

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-27030iCM65..TS;CM5#,60,61199310-199611

main87245-95732iKM51..DX199008-199906

main87245-95756iKM5#..DX198610-199008

main87245-95757iCM5#,6#198610-199112

main87245-95758iYM55,6#198610-199906

main87245-95759iKM51198711-199906

87248APIPE, HEATER WATER INLET, A

main87208-28010iYM55,6#198610-199202

main87208-28500iYM55,6#199202

87248BPIPE, HEATER WATER INLET, B

main87208-95743iCM65..TS;CM5#,60,61,YM55,6#199310-199611

main87208-95760iCM65..IV198911-199310

87249APIPE, HEATER WATER OUTLET, A

main87208-95741iCM5#,6#198610-198807

main87208-95742iYM55,60198610-198808

main87208-95756iCM5#,6#198808-199310

main87208-95757iYM55,6#198808

main87208-95761iCM65..IV198911-199310

87249BPIPE, HEATER WATER OUTLET, B

main87208-28021iYM55,6#198610

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-28011iYM55,6#198610

1149373010GASKET, WATER SEAL PLATE

main11493-73010

1717572011GASKET, INTAKE MANIFOLD INLET

main17175-72011

8726827010COCK, WATER HOSE DRAIN(FOR REAR HEATER)

main87268-27010

8726895703COCK, WATER HOSE DRAIN(FOR REAR HEATER)

main87268-95703

9017908126

main90179-08126

9046110262

main90461-10262

9046110589

main90461-10589

9046722004

main90467-22004

9098901063

main90989-01063

9161160835

main91611-60835

9162640818

main91626-40818

9165140616

main91651-40616

9165140814

main91651-40814

9165640818

main91656-40818

9611210250

main96112-10250

9611230250

main96112-30250

9613442100

main96134-42100

29 parts on this diagram · 2 diagrams in section
