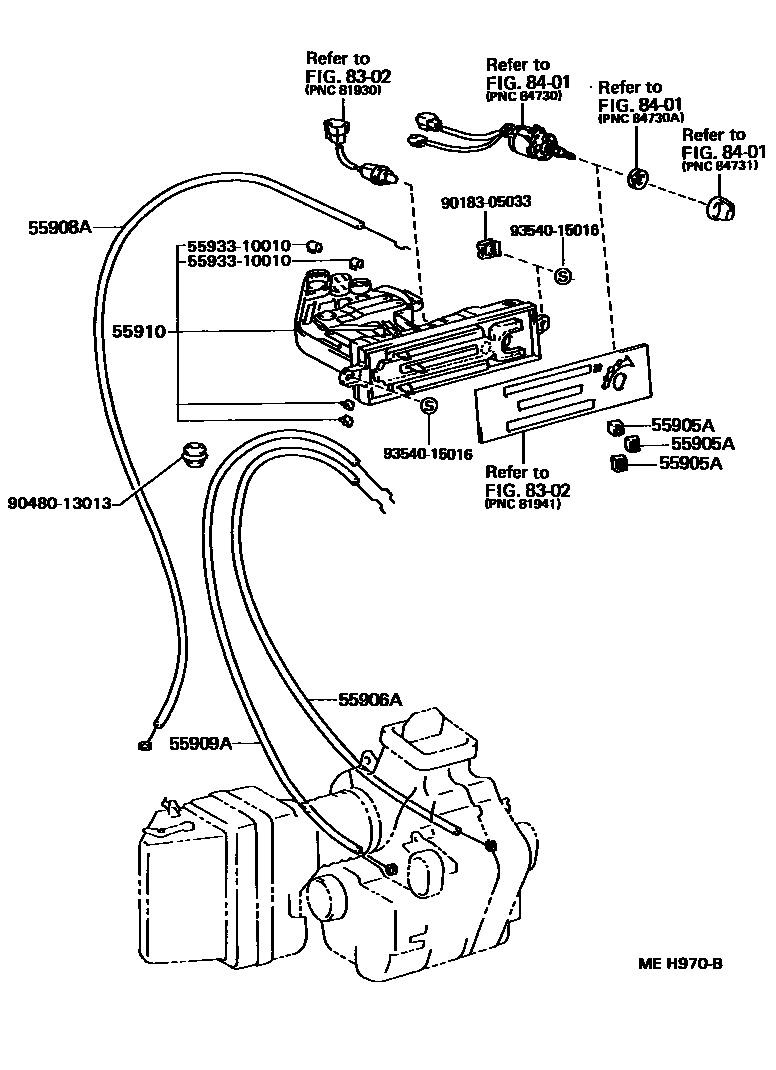

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1

55905AKNOB, HEATER CONTROL

main55905-10110iCM65..TS;CM5#,60,61,KM51,YM55,6#198711-199611

DEF-VENTI,WARM-COOL

main55905-10110iCM5#,6#,KM51,YM55,6#199611

main55905-10110iCM5#,6#,KM5#,YM55,60198610-198711

DEF-VENT,WARM-COOL

main55905-95707iCM5#,6#,KM5#,YM55,60198610-198711

FRESH-RECIRC

main55905-95707iCM5#,6#,KM5#,YM55,6#198711-199611

FRESH-RESIRC

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-27010iCM5#,6#,KM51,YM55,6#199611

main55906-95707iCM5#,6#,KM5#,YM55,6#198610-199611

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-27010iCM5#,6#,KM51,YM55,6#199611

main55908-95706iCM5#,6#,KM5#,YM55,6#198610-199611

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-27020iCM5#,6#,KM51,YM55,6#199611

main55909-95703iCM5#,6#,KM5#,YM55,6#198610-199611

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-95723iCM65..TS;CM5#,60,61,KM51,YM55,6#198610-199611

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

5593310010GUIDE, LEVER, NO.2

main55933-10010

9018305033

main90183-05033

9048013013

main90480-13013

9354015016

main93540-15016

11 parts on this diagram · 3 diagrams in section
