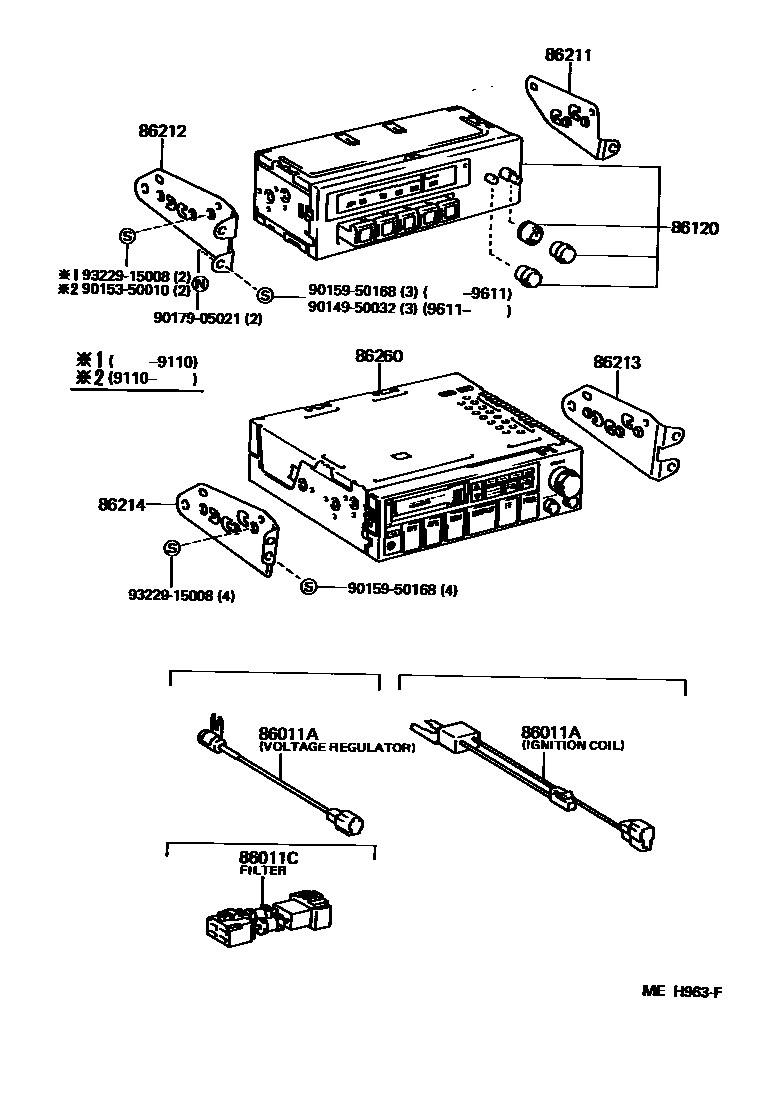

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04023iKM5#198610-198705

sub90980-04043

main90980-04043iKM5#198705-198910

main90980-04058iKM5#198610

86011CFILTER, NOISE

main90980-05049iCM65..IV198911-199310

86120RECEIVER ASSY, RADIO

main86120-10450iKM51,YM60..SPX199611

main86120-16350iCM5#,6#,KM5#,YM55,6#198610-199110

sub86120-10290

main86120-27010iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199110-199611

main86120-32480iKM51,YM60..SPX199611

main86120-95709iKM51,YM60..SPX199110-199611

86211BRACKET, RADIO, NO.1

main86211-27010iCM65..TS;CM5#,60,61,KM51,YM55,6#..DX199110-199611

main86211-27020iCM5#,6#,KM51,YM55,6#199611

main86211-95714iKM51,YM60..SPX199110-199611

main86215-95700iCM5#,6#,KM5#,YM55,6#198610-199110

86212BRACKET, RADIO, NO.2

main86212-27010iCM5#,6#,KM51,YM55,6#..DX199110-199611

main86212-27020iCM5#,6#,KM51,YM55,6#199611

main86212-95704iCM5#,6#,KM5#,YM55,6#198610-199110

86213BRACKET, RADIO, NO.3

main86211-95712iCM5#,6#,KM5#,YM55,6#198610-199611

86214BRACKET, RADIO, NO.4

main86212-95705iCM5#,6#,KM5#,YM55,6#198610-199611

86260TAPE PLAYER ASSY

main86260-19105iKM51,YM60..SPX198610-199110

9014950032

main90149-50032

9015350010

main90153-50010

9015950168

main90159-50168

9017905021

main90179-05021

9322915008

main93229-15008

13 parts on this diagram · 1 diagram in section
